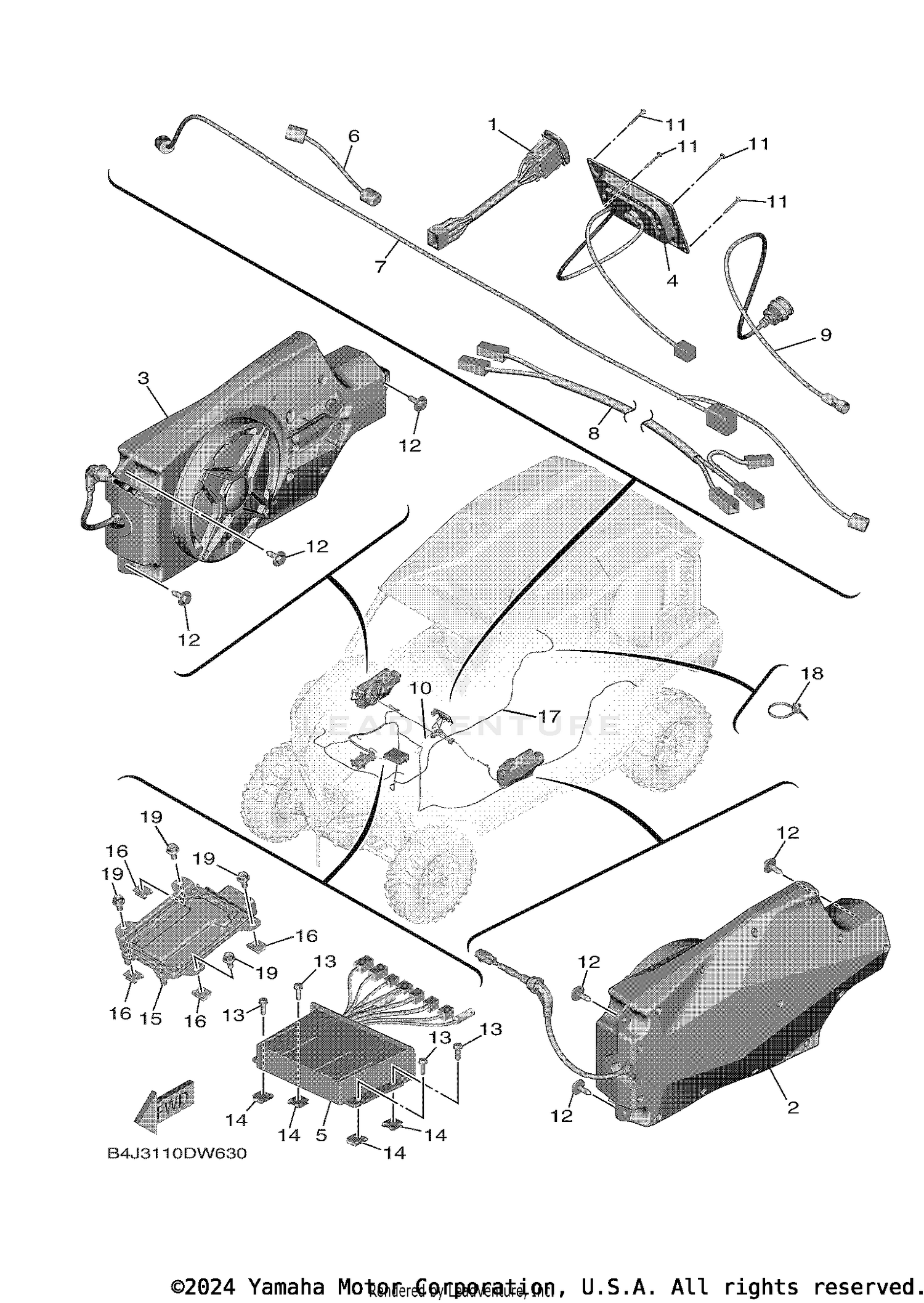

ELECTRICAL 4
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B4J-H1860-01-00 | SWITCH ASSY Price: $138.99 |
| 2 | B4J-H8160-V0-00 | SPEAKER ASSY 1 Price: $256.99 |
| 3 | B4J-H8170-V0-00 | SPEAKER ASSY, 2 Price: $256.99 |
| 4 | B4J-H8110-V0-00 | RADIO ASSY Price: $129.99 |
| 5 | BG4-H3391-V0-00 | AUDIO PILOT NUIT Price: $230.99 |
| 6 | B4J-H2590-V0-00 | WIRE HARNESS ASSY Price: $10.99 |
| 7 | B4J-H259L-V0-00 | WIRE HARNESS ASSY 1 Price: $38.99 |
| 8 | B4J-H259M-V0-00 | WIRE HARNESS ASSY 2 Price: $44.99 |
| 9 | B4J-H21G1-V0-00 | LEAD, AUX Price: $35.99 |
| 10 | BG4-H6268-V0-00 | CABLE ANTENNA Price: $22.99 |
| 11 | B4J-H3358-V0-00 | SCREW, SPECIAL Price: $0.69 |
| 12 | 90119-06226-00 | BOLT, WITH WASHER Price: $2.80 |
| 13 | JW1-F3394-00-00 | BOLT, SPECIAL Price: $1.05 |
| 14 | 90183-05008-00 | NUT, SPRING Price: $10.49 |
| 15 | B4J-H1930-00-00 | CONTROL UNIT ASSY Price: $541.99 |
| 16 | 90183-062A1-00 | NUT, SPRING Price: $2.20 |
| 17 | B4J-H8189-03-00 | WIRE, SUB LEAD This part replaces B4J-H8189-01-00. Price: $282.99 |
| 18 | 1NS-F1338-00-00 | CLAMP Price: $3.60 |
