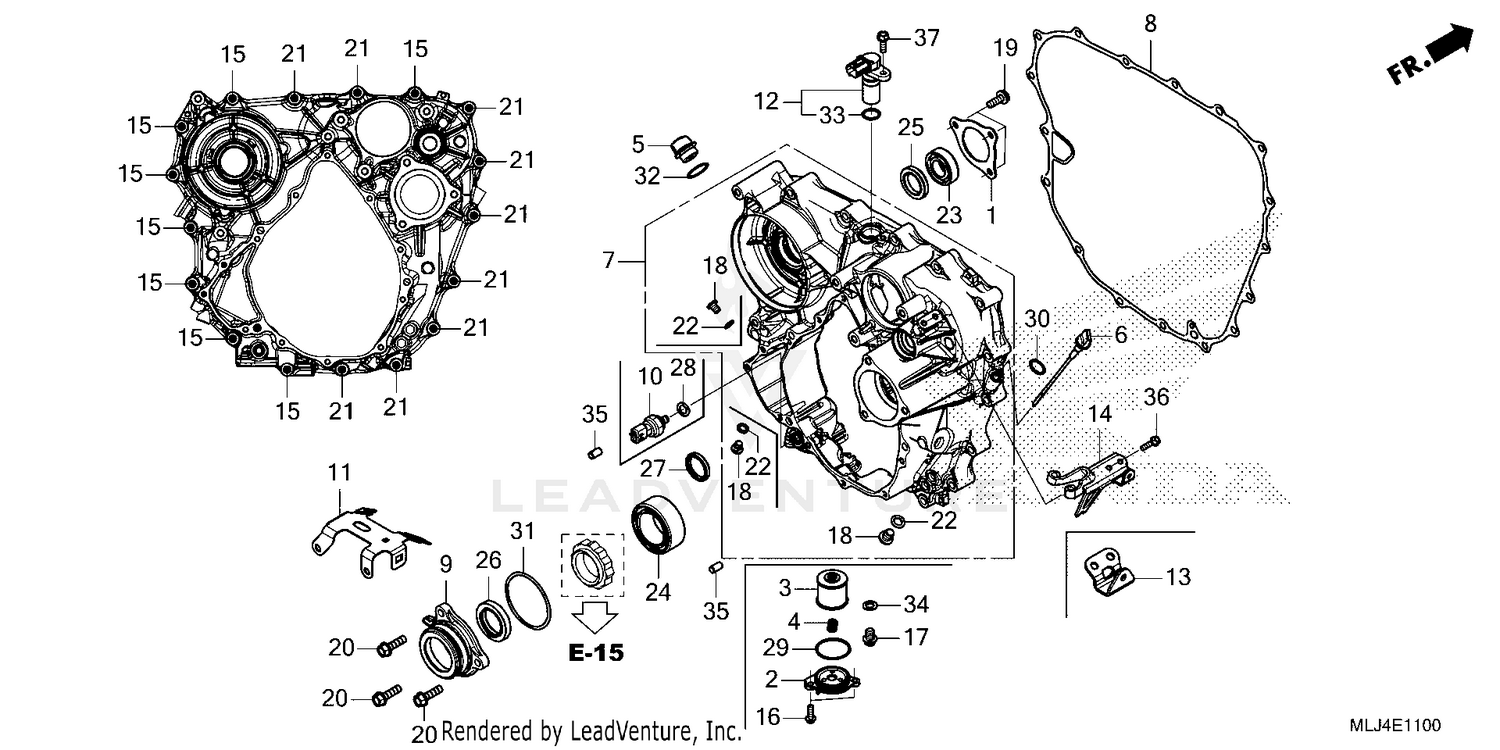

| Ref | Part Number | Description |
|---|
| 1 |
13459-MKC-A00 |
PLATE, ISG BEARING SETTING Price: $15.78 |
| 5 |
15611-KA4-710 |
CAP, OIL FILLER Price: $17.45 |
| 6 |
15650-MKC-A20 |
DIPSTICK, OIL Price: $19.31 |
| 7 |
21110-MKC-A20 |
CASE ASSY., RR. Price: $956.11 |
| 8 |
21112-MKC-A01 |
GASKET, RR. CASE Price: $46.29 |
| 9 |
23751-MKC-A00 |
HOLDER, FINAL SHAFT BEARING Price: $76.05 |
| 11 |
30531-MKC-A00 |
STAY, KNOCK CONNECTOR Price: $20.76 |
| 12 |
36140-MCT-003 |
PULSER ASSY., CAM (Honda Code 6959951) Price: $192.07 |
| 14 |
83512-MKC-A20 |
STAY A, R. ENGINE SIDE COVER Price: $24.71 |
| 15 |
90001-MFA-D00 |
BOLT, FLANGE (8X55) Price: $2.71 |
| 18 |
90044-MKC-A00 |
BOLT, SPECIAL (10X12) Price: $5.09 |
| 19 |
90071-171-010 |
BOLT, DOWEL (6MM) Price: $2.73 |
| 20 |
90074-MKC-A00 |
BOLT, FLANGE (8X28) Price: $3.18 |
| 21 |
90101-MCA-A20 |
BOLT, FLANGE (8X45) Price: $2.73 |
| 22 |
90443-MB0-000 |
WASHER, SEALING (10.2MM) Price: $3.53 |
| 23 |
91001-MKC-A01 |
BEARING, RADIAL BALL SPECIAL (6004) Price: $22.58 |
| 24 |
91029-MKC-A01 |
BEARING, RADIAL BALL (34X62X24) Price: $34.71 |
| 25 |
91202-MKC-A01 |
OIL SEAL (26X39X6.5) Price: $5.51 |
| 26 |
91203-MKC-A01 |
OIL SEAL (32X48X8) Price: $13.24 |
| 27 |
91208-MN5-003 |
OIL SEAL (27X34X5) Price: $5.09 |
| 30 |
91303-MJ0-003 |
O-RING (6.5X2.2) (ARAI) Price: $5.09 |
| 31 |
91316-PE7-730 |
O-RING (62.4X3.1) This part replaces 91304-MN5-003. Price: $7.15 |
| 32 |
91307-035-000 |
O-RING (18X3) Price: $3.40 |
| 33 |
91309-PX4-003 |
O-RING (16X2.1) (NOK) (Honda Code 3301793) Price: $3.67 |
| 35 |
94301-10160 |
PIN, DOWEL (10X16) (Honda Code 0058206) Price: $2.58 |
| 36 |
95701-06016-00 |
BOLT, FLANGE (6X16) (Honda Code 2410892) Price: $1.70 |
