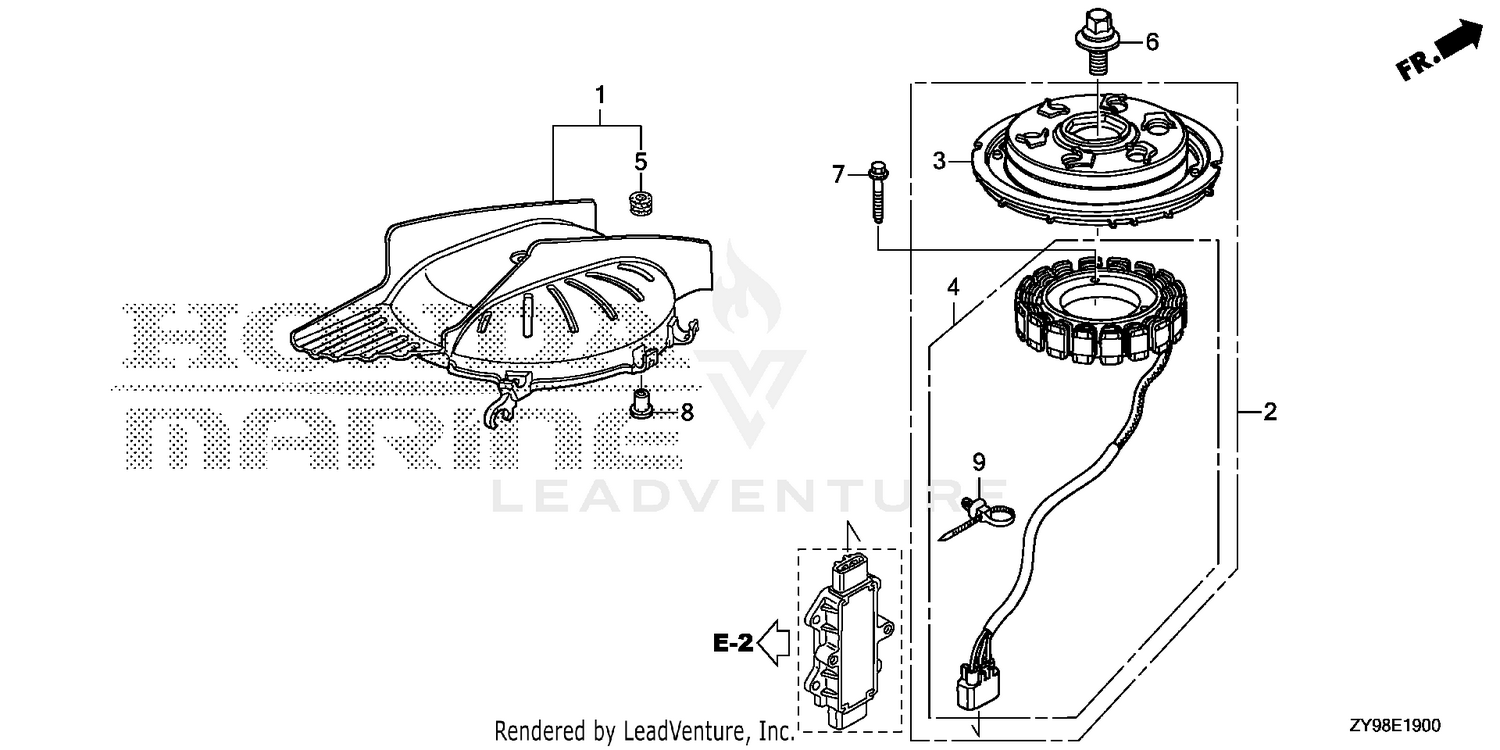

ALTERNATOR
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 31145-ZY9-M00 | COVER ASSY., ALTERNATOR Price: $86.98 |
| 2 | 31630-ZY9-H01 | ALTERNATOR ASSY. Price: $1,253.02 |
| 3 | 31631-ZY9-H01 | ROTOR Price: $319.20 |
| 4 | 31632-ZY9-003 | STATOR Price: $496.86 |
| 5 | 40102-ZV5-000 | GROMMET, CASE (LOWER) Price: $3.62 |
| 6 | 90017-PWA-G02 | BOLT-WASHER (14X36) Price: $35.82 |
| 8 | 91503-ZY9-M00 | COLLAR, MODULE IGNITION CONTROL CASE (CDI) Price: $3.06 |
| 8 | 91551-ZVL-010 | COLLAR (12X6.5) Price: $3.06 |
