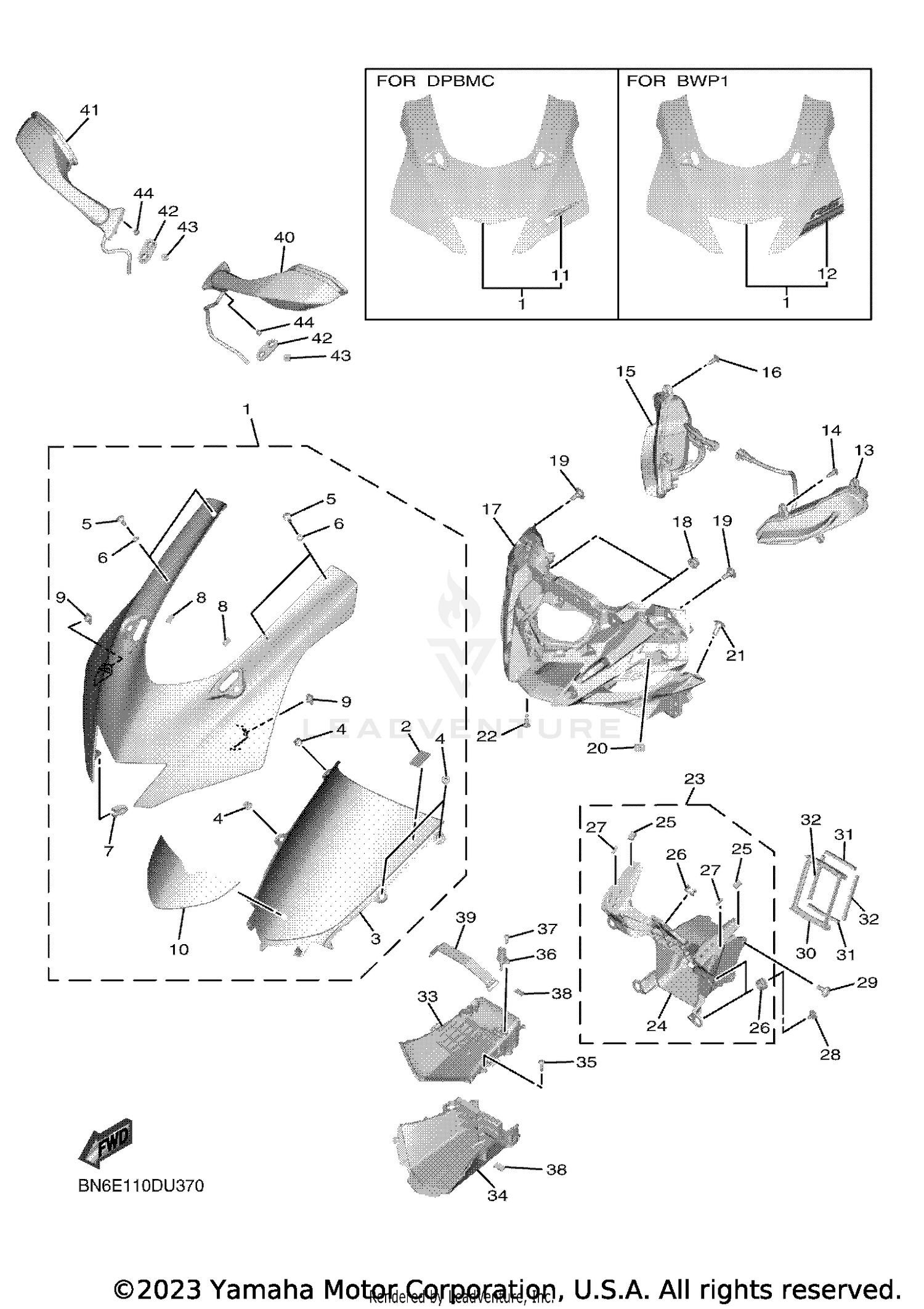

| Ref | Part Number | Description |
|---|
| 2 |
4B5-2815K-00-00 |
LABEL, NOTICE WINDSHIELD 1 Price: $8.49 |
| 3 |
BN6-28381-00-00 |
WINDSHIELD Price: $120.99 |
| 4 |
90179-05523-00 |
NUT Price: $7.49 |
| 5 |
90150-05023-00 |
SCREW, ROUND HEAD Price: $3.30 |
| 6 |
90202-05088-00 |
WASHER, PLATE Price: $7.70 |
| 7 |
90464-07018-00 |
CLAMP Price: $0.70 |
| 8 |
20S-2814H-11-00 |
HOOK 1 Price: $3.60 |
| 9 |
90183-060A6-00 |
NUT, SPRING Price: $5.99 |
| 13 |
BN6-84301-00-00 |
PILOT LIGHT ASSY 1 Price: $438.99 |
| 14 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 15 |
BN6-84302-00-00 |
PILOT LIGHT ASSY 2 Price: $438.99 |
| 16 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 17 |
BN6-2830A-00-00 |
BODY, COWLING Price: $146.99 |
| 18 |
90480-10003-00 |
GROMMET Price: $9.49 |
| 19 |
90109-06061-00 |
BOLT Price: $12.49 |
| 20 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 21 |
90109-06061-00 |
BOLT Price: $12.49 |
| 22 |
90269-06008-00 |
RIVET Price: $9.49 |
| 23 |
BN6-28320-00-00 |
LEG SHIELD STAY SET Price: $323.99 |
| 24 |
BN6-28356-00-00 |
STAY 1 Price: $278.99 |
| 25 |
20S-2814H-11-00 |
HOOK 1 Price: $3.60 |
| 26 |
4XV-83513-00-00 |
DAMPER Price: $8.49 |
| 27 |
1HX-27415-00-00 |
PLATE, DAMPER Price: $7.49 |
| 28 |
90160-05006-00 |
SCREW, ROUND TAPPING Price: $9.49 |
| 29 |
90111-06116-00 |
BOLT, HEX. SOCKET BUTTON Price: $8.49 |
| 30 |
2C0-28342-02-00 |
JOINT This part replaces 2C0-28342-01-00. Price: $5.00 |
| 31 |
2C0-28217-00-00 |
DAMPER 1 Price: $2.40 |
| 32 |
2C0-28227-00-00 |
DAMPER 2 Price: $8.49 |
| 33 |
BN6-2838R-01-00 |
DUCT 2 This part replaces BN6-2838R-00-00. Price: $34.99 |
| 34 |
BN6-2838T-01-00 |
DUCT 3 This part replaces BN6-2838T-00-00. Price: $34.99 |
| 35 |
97707-40016-00 |
SCREW, TAPPING Price: $9.49 |
| 36 |
8FP-85886-00-00 |
SENSOR, AIR TEMPERATURE Price: $65.99 |
| 37 |
97780-50116-00 |
SCREW, TAPPING This part replaces 97702-50116-00. Price: $1.49 |
| 38 |
51Y-21639-00-00 |
DAMPER 2 Price: $7.49 |
| 39 |
133-82131-00-00 |
BAND, BATTERY Price: $30.99 |
| 40 |
BN6-26280-11-00 |
REAR VIEW MIRROR ASSY (LEFT) This part replaces BN6-26280-10-00. Price: $457.99 |
| 41 |
BN6-26290-11-00 |
REAR VIEW MIRROR ASSY (RIGHT) This part replaces BN6-26290-10-00. Price: $326.99 |
| 42 |
4C8-26298-00-00 |
PLATE, MIRROR FITTING 1 Price: $8.49 |
| 43 |
90176-06055-00 |
NUT, CROWN Price: $6.49 |
