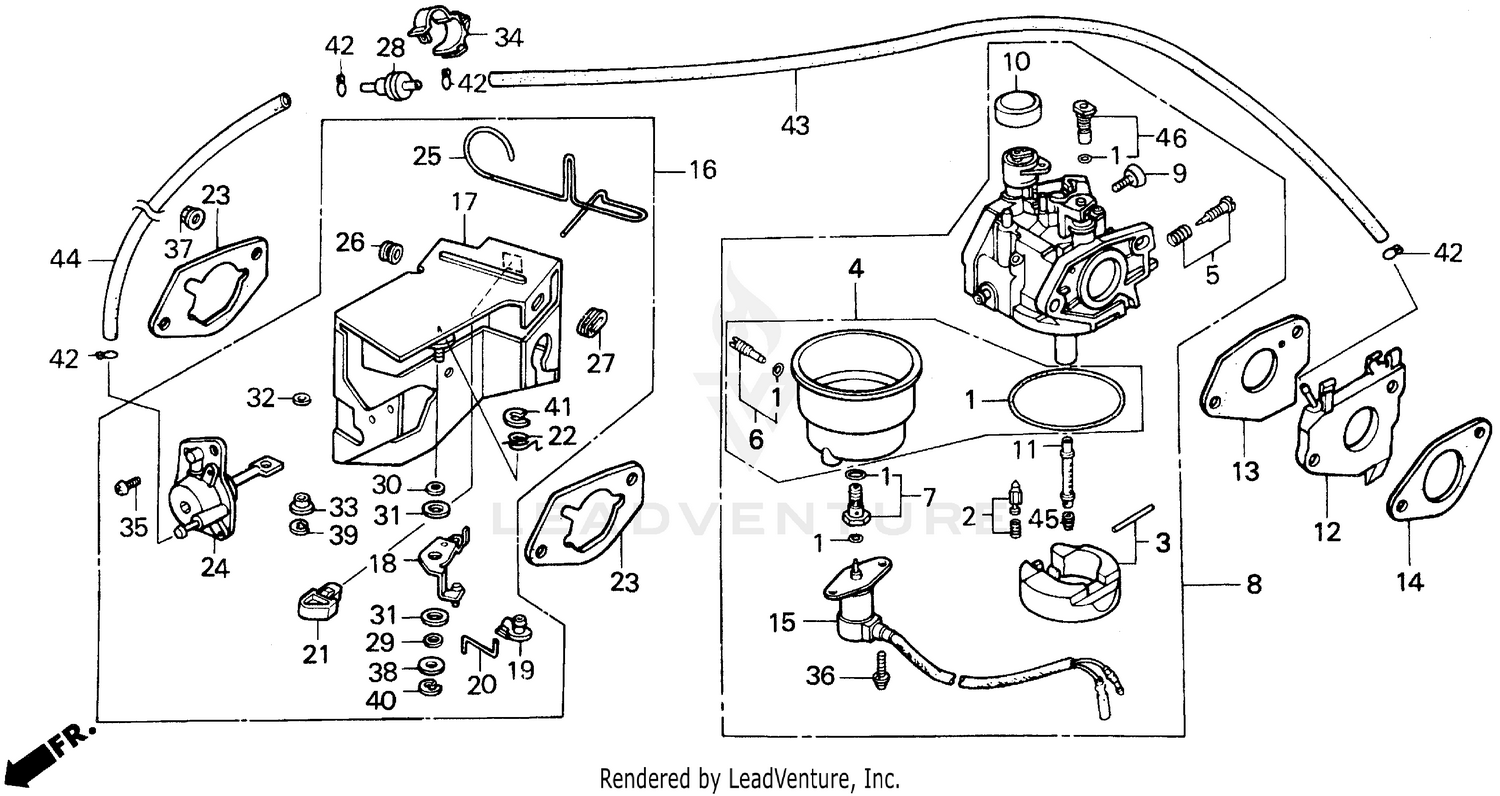

| Ref | Part Number | Description |
|---|
| 1 |
16010-ZE3-701 |
GASKET SET (Honda Code 2386233). Price: $9.66 |
| 2 |
16011-ZA0-931 |
VALVE SET, FLOAT (Honda Code 2059236). Price: $44.34 |
| 3 |
16013-ZA0-931 |
FLOAT SET (Honda Code 2059244). Price: $21.88 |
| 4 |
16015-ZA0-931 |
CHAMBER SET, FLOAT (Honda Code 2386241). Price: $78.92 |
| 5 |
16016-ZE0-005 |
SCREW SET, PILOT (Honda Code 1441500). (CARBURETOR NO.) Price: $15.10 |
| 6 |
16024-124-760 |
SEE PART DETAILS - PRI; SCREW SET, DRAIN (ADVENTURE GREEN) (CARBURETOR NO.) Price: $14.64 |
| 7 |
16028-ZE3-701 |
SCREW SET (Honda Code 2386258). Price: $28.42 |
| 8 |
16100-ZE3-305 |
CARBURETOR ASSY(S This part replaces 16100-ZE3-704. Price: $156.82 |
| 9 |
16124-ZE0-005 |
SCREW, THROTTLE STOP (Honda Code 1441559). Price: $17.88 |
| 10 |
16148-141-881 |
SEE PART DETAILS - PRI; CAP, CHOKE LEVER DUST (Honda Code 2110468). Price: $6.58 |
| 11 |
16166-ZE3-701 |
NOZZLE, MAIN (CARBURETOR NO.) Price: $34.40 |
| 12 |
16211-ZE3-700 |
INSULATOR, CARBURETOR Price: $24.60 |
| 13 |
16221-ZE3-800 |
SEE PART DETAILS - PRI; GASKET, CARBURETOR This part replaces 16221-ZE3-306. Price: $2.74 |
| 14 |
16223-ZE3-800 |
SEE PART DETAILS - PRI; GASKET, INSULATOR This part replaces 16223-ZE3-306. Price: $2.64 |
| 15 |
16230-ZE3-702 |
SEE PART DETAILS - PRI; VALVE ASSY., SOLENOID Price: $73.48 |
| 19 |
16263-ZA0-000 |
JOINT, ROD (Honda Code 1307677). Price: $5.18 |
| 23 |
16269-ZA0-800 |
SEE PART DETAILS - PRI; GASKET, AIR CLEANER (Honda Code 3755212). Price: $2.44 |
| 26 |
16613-893-000 |
SEE PART DETAILS - PRI; GROMMET, CHOKE ROD Price: $3.84 |
| 27 |
16615-893-000 |
GUIDE, CHOKE ROD Price: $4.70 |
| 29 |
53149-964-003 |
BUSH, ARM PIVOT Price: $8.28 |
| 30 |
90431-ZE2-700 |
WASHER, CHOKE LEVER Price: $4.00 |
| 31 |
90432-ZE2-700 |
SEAL, CHOKE LEVER Price: $3.94 |
| 32 |
90433-ZE2-700 |
WASHER, THRUST (2.7X8) Price: $3.86 |
| 33 |
90434-ZE2-700 |
COLLAR, LEVER Price: $3.88 |
| 35 |
93500-05012-0A |
SEE PART DETAILS - PRI; SCREW, PAN (5X12) (Honda Code 0173567). Price: $1.14 |
| 36 |
93892-05012-08 |
SEE PART DETAILS - PRI; SCREW-WASHER (5X12) (Honda Code 0368621). Price: $1.44 |
| 37 |
94050-06000 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623). Price: $0.82 |
| 38 |
94103-05000 |
WASHER, PLAIN (5MM) (Honda Code 1555630). Price: $0.78 |
| 39 |
94540-02010 |
E-RING (2MM) Price: $1.78 |
| 40 |
94540-04010 |
E-RING (4MM) Price: $2.60 |
| 41 |
94540-07010 |
E-RING (7MM) Price: $3.02 |
| 45 |
99101-124-0980 |
JET, MAIN (#98) (Honda Code 0761403). Price: $13.34 |
