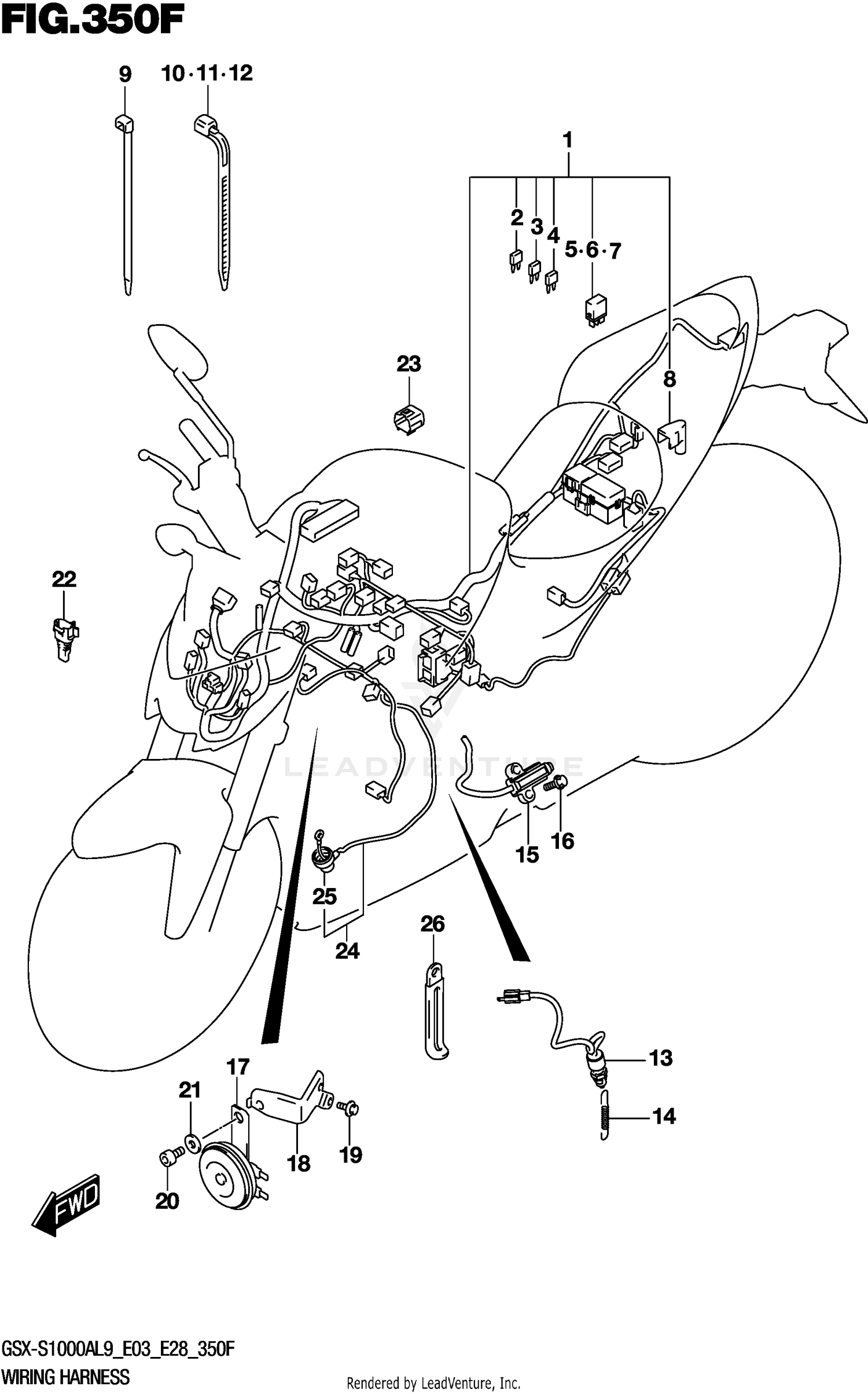

WIRING HARNESS (GSX-S1000YAL9 E33)
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 36610-38K80 | HARNESS,WIRING Price: Call Us |
| 9 | 09407-14407 | CLAMP (L:145) Price: $3.70 |
| 10 | 09407-18402 | CLAMP (L:165) Price: $2.68 |
| 11 | 09407-19401 | CLAMP (L:190) Price: $3.22 |
| 12 | 09407-14403 | CLAMP (L:125) Price: $2.72 |
| 13 | 37740-31D00 | SWITCH ASSY,STOP LAMP Price: $35.87 |
| 14 | 09443-06054 | SPRING Price: $4.04 |
| 15 | 37840-35F02 | SWITCH ASSY,SIDE STAND This part replaces 37840-35F00. Price: $61.19 |
| 16 | 01550-0620A | BOLT (6X20) Price: $2.37 |
| 17 | 38500-48G21 | HORN ASSY This part replaces 38500-48G20. Price: $59.49 |
| 18 | 38590-04K10 | PLATE, HORN Price: $14.46 |
| 19 | 09116-06006 | BOLT (6X16) Price: $2.27 |
| 20 | 07130-0812A | BOLT Price: $3.91 |
| 21 | 09160-08127 | WASHER (8.5X22X2) Price: $2.58 |
| 22 | 36654-04K00 | CAP,CONNECTOR Price: $9.06 |
| 23 | 36654-06J20 | CAP Price: $15.01 |
| 24 | 36851-44G01 | WIRE,OIL PRESSURE SWITCH LEAD Price: $18.87 |
