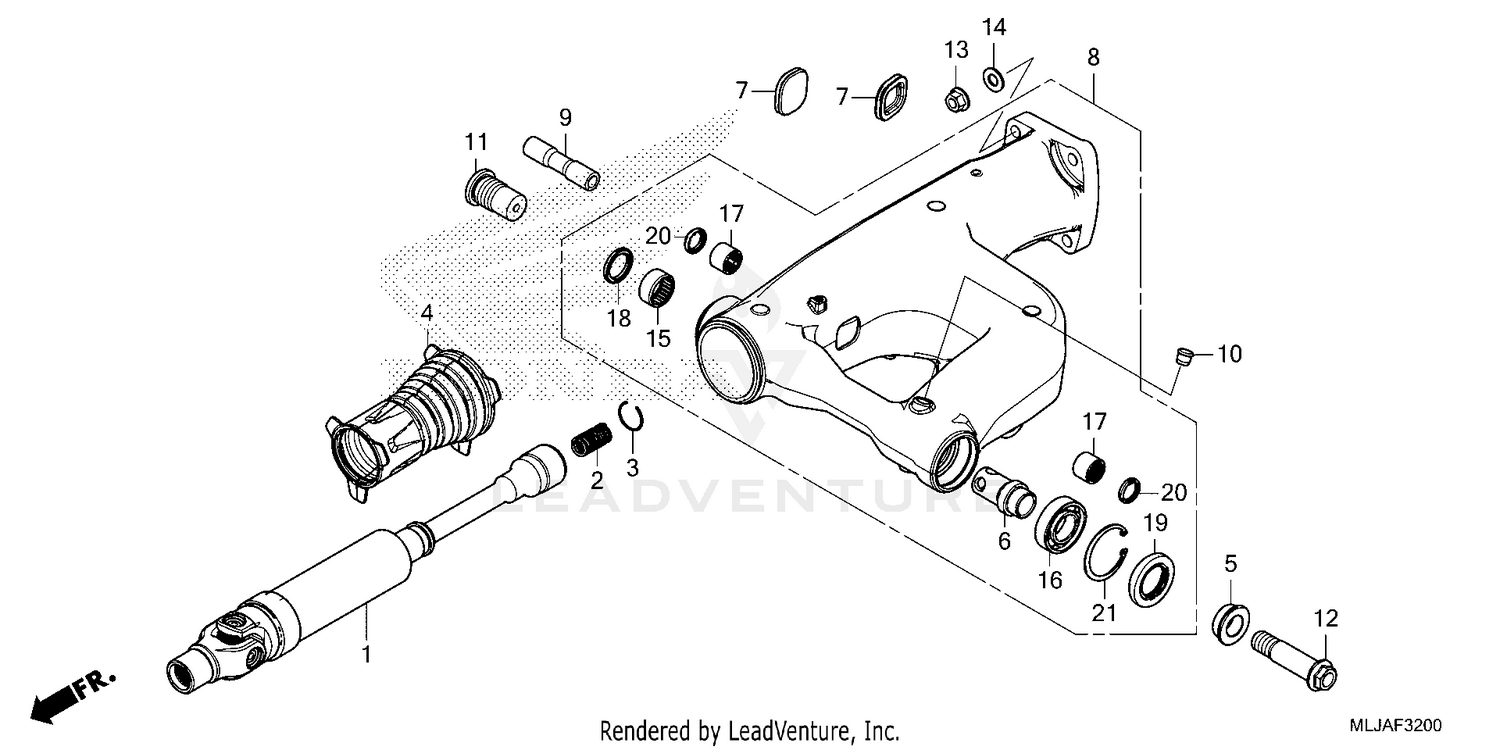

| Ref | Part Number | Description |
|---|
| 1 |
40200-MKC-A00 |
SHAFT ASSY., PROPELLER Price: $582.85 |
| 2 |
40216-MKC-A00 |
SPRING, PROP SHAFT Price: $4.33 |
| 3 |
40221-MKC-A00 |
RING, STOPPER Price: $3.55 |
| 4 |
52104-MKC-A00 |
BOOT, JOINT Price: $31.67 |
| 5 |
52141-MKC-A00 |
COLLAR, SWINGARM PIVOT Price: $13.38 |
| 6 |
52142-MKC-A00 |
NUT, SWINGARM PIVOT Price: $66.42 |
| 7 |
52175-MGE-000 |
GROMMET, SWINGARM Price: $3.35 |
| 8 |
52200-MKC-A00ZC |
SWINGARM SUB-ASSY. (TYPE3) Price: $1,794.27 |
| 9 |
52462-MKC-A00 |
COLLAR B, CUSHION ARM Price: $18.55 |
| 10 |
81212-GF4-000 |
CAP, RR. CARRIER Price: $5.20 |
| 11 |
90141-MKC-A00 |
BOLT, R. SWINGARM PIVOT Price: $53.05 |
| 12 |
90142-MKC-A00 |
BOLT, L. SWINGARM PIVOT Price: $37.98 |
| 13 |
90309-375-003 |
NUT, FLANGE (12MM) Price: $10.44 |
| 14 |
90440-GT4-970 |
WASHER, PLAIN (12MM) Price: $2.98 |
| 15 |
91021-MGZ-J01 |
BEARING, NEEDLE (28X35X16) (NTN) Price: $13.42 |
| 16 |
91051-MFL-003 |
BEARING, ANGULAR BALL (28X56X15) Price: $41.31 |
| 17 |
91072-MY1-005 |
BEARING, NEEDLE (20X26X20) Price: $22.44 |
| 18 |
91202-MR7-003 |
DUST SEAL (28X37X4) Price: $7.98 |
| 19 |
91251-MFL-003 |
DUST SEAL (35X56X7.5) Price: $8.53 |
| 20 |
91254-KS6-003 |
DUST SEAL (20X26X4.5) (ARAI) Price: $11.15 |
