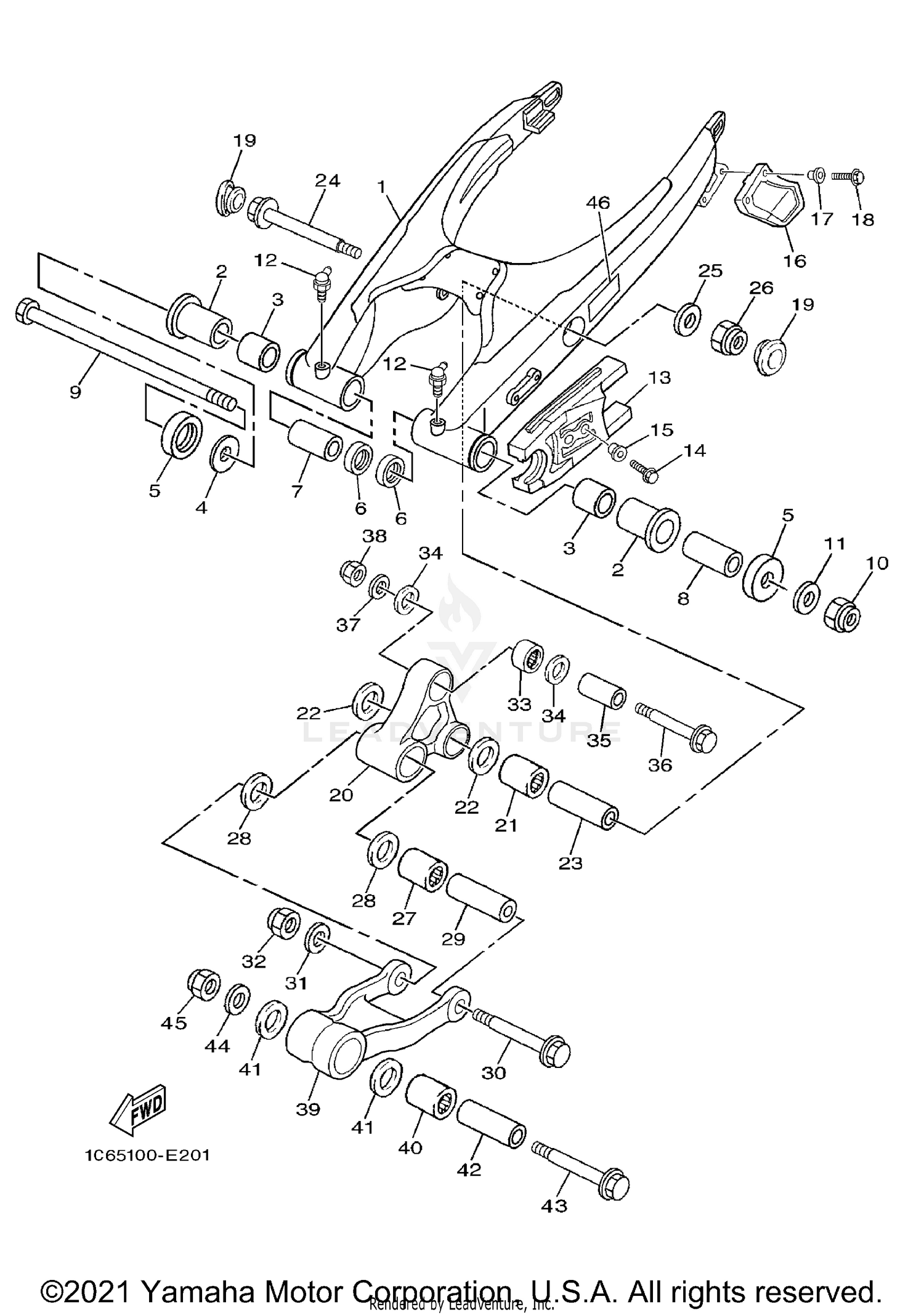

| Ref | Part Number | Description |
|---|
| 1 |
1C6-F2110-00-35 |
REAR ARM COMP. This part replaces 1C6-F2110-00-00. Price: $534.99 |
| 2 |
90386-18146-00 |
BUSH Price: $18.49 |
| 3 |
90380-18139-00 |
BUSH, SOLID Price: $19.49 |
| 5 |
401-22128-01-00 |
COVER, THRUST 1 Price: $31.99 |
| 6 |
93109-18020-00 |
OIL SEAL Price: $14.49 |
| 7 |
90387-121N2-00 |
COLLAR Price: $15.49 |
| 8 |
90387-127F2-00 |
COLLAR Price: $19.49 |
| 9 |
1C6-F2141-00-00 |
SHAFT, PIVOT Price: $27.99 |
| 10 |
90185-12134-00 |
NUT, SELF-LOCKING Price: $13.49 |
| 11 |
90201-126A7-00 |
WASHER, PLATE Price: $10.49 |
| 12 |
93700-06005-00 |
NIPPLE, GREASE This part replaces 93700-06803-00. Price: $13.49 |
| 13 |
1B2-F2151-10-00 |
SEAL, GUARD Price: $43.99 |
| 14 |
97017-06016-00 |
BOLT This part replaces 9700M-06016-00. Price: $9.49 |
| 15 |
90387-062X0-00 |
COLLAR Price: $22.99 |
| 16 |
5RM-F2199-00-00 |
SUPPORT, CHAIN Price: $7.49 |
| 17 |
90387-06737-00 |
COLLAR Price: $10.49 |
| 18 |
97017-06016-00 |
BOLT This part replaces 9700M-06016-00. Price: $9.49 |
| 19 |
1C6-F2117-00-00 |
CAP Price: $2.05 |
| 20 |
1C6-2217A-00-00 |
ARM, RELAY Price: $107.99 |
| 21 |
93315-32056-00 |
BEARING Price: $33.99 |
| 22 |
93109-20076-00 |
OIL SEAL Price: $17.49 |
| 23 |
90387-14007-00 |
COLLAR Price: $18.49 |
| 24 |
90105-12801-00 |
BOLT, FLANGE Price: $21.99 |
| 25 |
90201-126A7-00 |
WASHER, PLATE Price: $10.49 |
| 26 |
95617-12100-00 |
NUT, U Price: $4.16 |
| 27 |
93315-32056-00 |
BEARING Price: $33.99 |
| 28 |
93109-20076-00 |
OIL SEAL Price: $17.49 |
| 29 |
90387-12024-00 |
COLLAR Price: $18.49 |
| 30 |
90105-12025-00 |
BOLT, FLANGE This part replaces 90105-12800-00. Price: $19.49 |
| 31 |
90201-126A7-00 |
WASHER, PLATE Price: $10.49 |
| 32 |
95617-12100-00 |
NUT, U Price: $4.16 |
| 33 |
93315-31758-00 |
BEARING Price: $44.99 |
| 34 |
93109-17071-00 |
OIL SEAL Price: $8.49 |
| 35 |
90387-1012A-00 |
COLLAR Price: $23.99 |
| 36 |
90105-10818-00 |
BOLT, FLANGE Price: $5.99 |
| 37 |
90201-101J1-00 |
WASHER, PLATE Price: $9.49 |
| 38 |
95617-10100-00 |
NUT, U Price: $9.49 |
| 39 |
1C6-F217F-01-00 |
ROD, CONNECTING 1 Price: $113.99 |
| 40 |
93315-32056-00 |
BEARING Price: $33.99 |
| 41 |
93109-20076-00 |
OIL SEAL Price: $17.49 |
| 42 |
90387-12023-00 |
COLLAR Price: $18.49 |
| 43 |
90101-12804-00 |
BOLT Price: $7.49 |
| 44 |
90201-126A7-00 |
WASHER, PLATE Price: $10.49 |
| 45 |
95617-12100-00 |
NUT, U Price: $4.16 |
