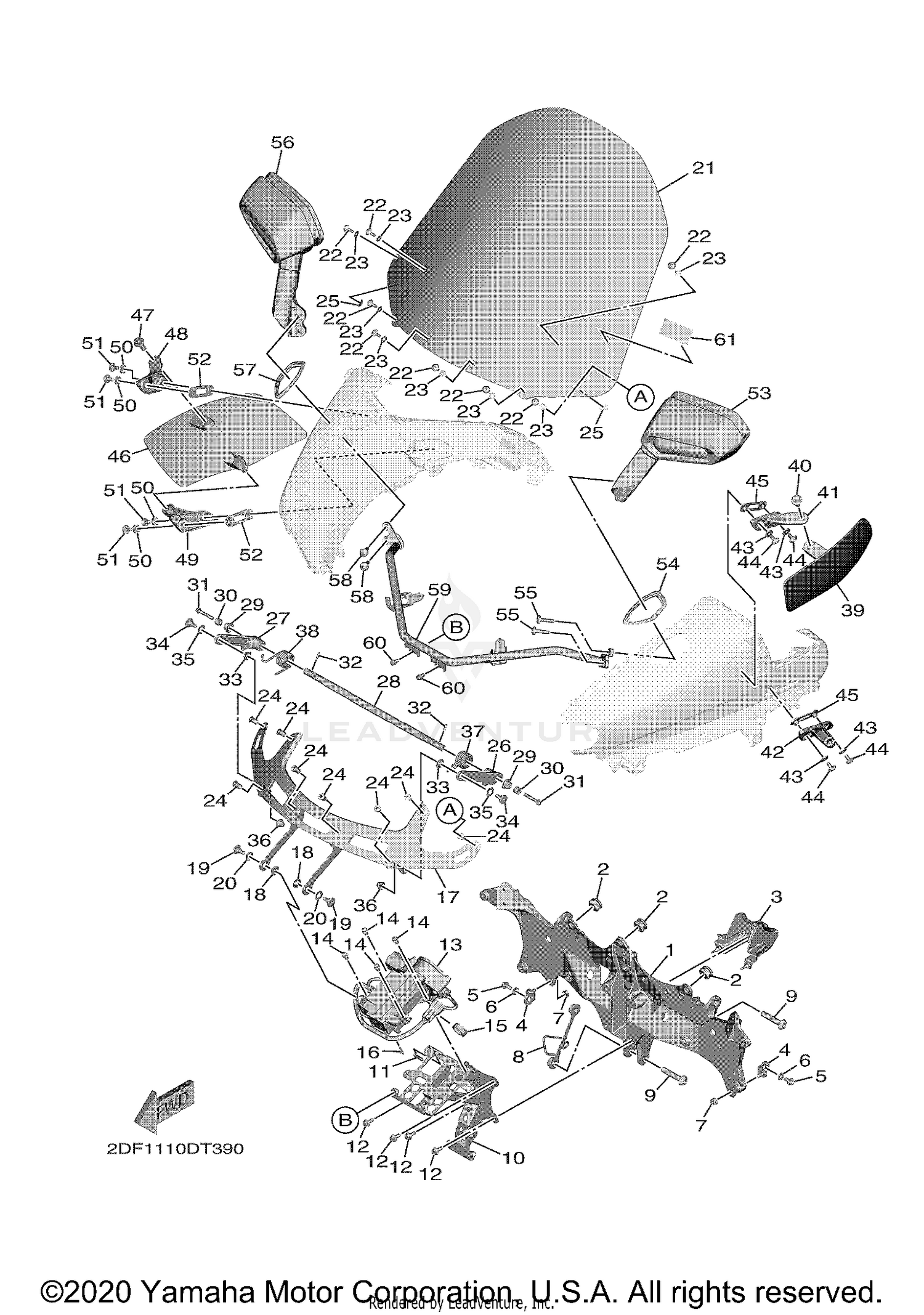

| Ref | Part Number | Description |
|---|
| 1 |
2DF-28356-00-00 |
STAY 1 Price: $440.99 |
| 2 |
90480-09M21-00 |
GROMMET Price: $6.85 |
| 3 |
2DF-28239-00-00 |
COVER 3 Price: $26.99 |
| 4 |
2DF-2831U-00-00 |
STAY, SIDE 1 Price: $4.85 |
| 5 |
90110-06107-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06108-00. Price: $3.25 |
| 6 |
90201-06045-00 |
WASHER, PLATE Price: $9.49 |
| 7 |
95707-06500-00 |
NUT, FLANGE This part replaces 90179-06075-00. Price: $1.00 |
| 8 |
2DF-28336-00-00 |
PLATE Price: $21.99 |
| 9 |
90111-10054-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 10 |
2DF-28332-00-00 |
STAY, LEG SHIELD Price: $93.99 |
| 11 |
1UF-15379-00-00 |
SEAL Price: $7.49 |
| 12 |
95D32-06014-00 |
BOLT, FLANGE DEEP RECESS Price: $0.40 |
| 13 |
2DF-83306-00-00 |
DRIVE UNIT ASSY Price: $463.99 |
| 14 |
95022-06010-00 |
BOLT, FLANGE Price: $6.49 |
| 15 |
90464-20181-00 |
CLAMP Price: $4.72 |
| 16 |
90465-10098-00 |
CLAMP Price: $2.70 |
| 17 |
2DF-28322-00-00 |
STAY 2 Price: $153.99 |
| 18 |
5JW-28329-00-00 |
SPACER Price: $8.49 |
| 19 |
2DF-28374-10-00 |
BOLT, COWLING Price: $3.55 |
| 20 |
90202-10044-00 |
WASHER, PLATE Price: $3.55 |
| 21 |
2DF-28381-00-00 |
WINDSHIELD Price: $504.99 |
| 22 |
90111-05051-00 |
BOLT, HEX. SOCKET BUTTON Price: $2.50 |
| 23 |
90202-05180-00 |
WASHER, PLATE Price: $11.49 |
| 24 |
90179-05523-00 |
NUT Price: $7.49 |
| 25 |
90520-01001-00 |
DAMPER, PLATE Price: $9.49 |
| 26 |
2DF-2833C-00-00 |
LINK 1 Price: $37.99 |
| 27 |
2DF-2833D-00-00 |
LINK 2 Price: $34.99 |
| 28 |
2DF-2833P-00-00 |
LINK 3 Price: $47.99 |
| 29 |
90381-12003-00 |
BUSH, SOLID Price: $3.35 |
| 30 |
90387-06330-00 |
COLLAR Price: $8.49 |
| 31 |
95024-06030-00 |
BOLT, FLANGE (SMALL HEAD) Price: $9.49 |
| 32 |
91690-30012-00 |
PIN, SPRING Price: $5.55 |
| 33 |
5JW-28329-00-00 |
SPACER Price: $8.49 |
| 34 |
2DF-28374-10-00 |
BOLT, COWLING Price: $3.55 |
| 35 |
90202-10044-00 |
WASHER, PLATE Price: $3.55 |
| 36 |
90176-06082-00 |
NUT, CROWN Price: $3.40 |
| 37 |
90508-35020-00 |
SPRING, TORSION Price: $6.49 |
| 38 |
90508-35018-00 |
SPRING, TORSION Price: $6.49 |
| 39 |
2DF-2830C-00-00 |
VISOR, SIDE 1 Price: $130.99 |
| 40 |
90269-10006-00 |
RIVET Price: $2.75 |
| 41 |
2DF-28367-00-00 |
BRACKET Price: $33.99 |
| 42 |
2DF-2833H-00-00 |
BRACKET 11 Price: $33.99 |
| 43 |
90201-064J1-00 |
WASHER, PLATE Price: $5.49 |
| 44 |
90111-06101-00 |
BOLT, HEX. SOCKET BUTTON Price: $8.49 |
| 45 |
2DF-2836J-00-00 |
BRACKET 6 Price: $7.49 |
| 46 |
2DF-2830D-00-00 |
VISOR, SIDE 2 Price: $130.99 |
| 47 |
90269-10006-00 |
RIVET Price: $2.75 |
| 48 |
2DF-28366-00-00 |
BRACKET Price: $35.99 |
| 49 |
2DF-2833J-00-00 |
BRACKET 12 Price: $34.99 |
| 50 |
90201-064J1-00 |
WASHER, PLATE Price: $5.49 |
| 51 |
90111-06101-00 |
BOLT, HEX. SOCKET BUTTON Price: $8.49 |
| 52 |
2DF-2836J-00-00 |
BRACKET 6 Price: $7.49 |
| 54 |
2DF-2628N-00-00 |
BASE, MIRROR (LEFT) Price: $7.49 |
| 55 |
90109-06031-00 |
BOLT Price: $2.85 |
| 57 |
2DF-2628R-00-00 |
BASE, MIRROR (RIGHT) Price: $4.90 |
| 58 |
90109-06031-00 |
BOLT Price: $2.85 |
| 59 |
2DF-2831W-00-00 |
STAY, MIRROR 1 Price: $126.99 |
| 60 |
95022-06012-00 |
BOLT, FLANGE Price: $3.55 |
