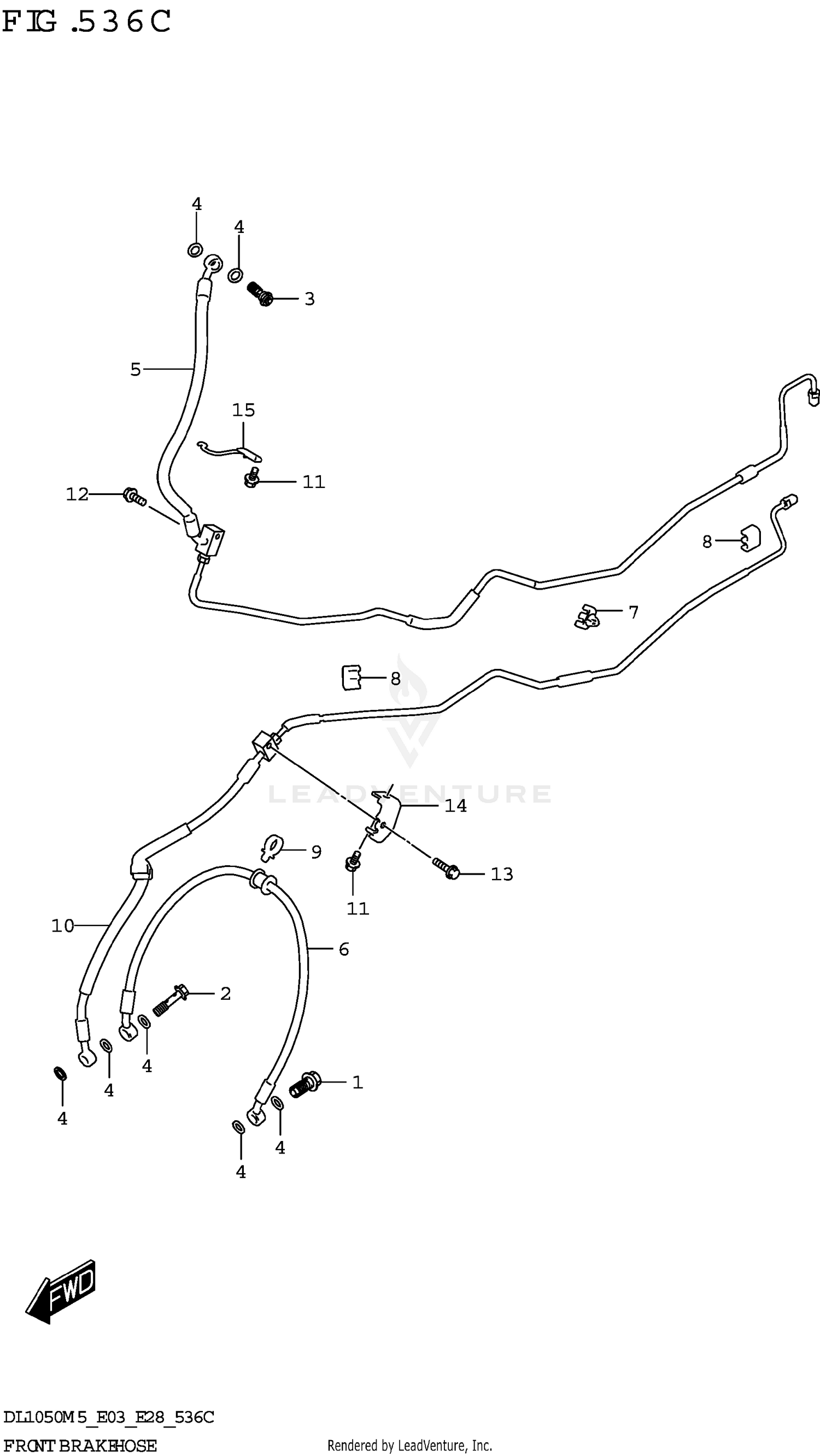

FRONT BRAKE HOSE (DL1050RR)
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 09360-10062 | UNION This part replaces 09360-10042. Price: $7.84 |
| 2 | 09360-10069 | BOLT Price: $6.53 |
| 3 | 09360-10053 | UNION (10X1.25X22) Price: $9.38 |
| 4 | 09161-10009 | WASHER (10X15X1.5) Price: $2.22 |
| 5 | 59200-06L60 | HOSE ASSY,FR BK MASTER TO UNI Price: $89.32 |
| 6 | 59240-06L00 | HOSE,FR BK CLPR TO CLPR Price: $94.51 |
| 7 | 09403-07344 | CLAMP Price: $2.64 |
| 8 | 09403-06324 | CLAMP Price: $2.48 |
| 9 | 09403-16412 | CLAMP Price: $4.16 |
| 10 | 59400-06L60 | HOSE ASSY,FR UNIT TO BK CLPR Price: $86.41 |
| 11 | 01547-0612B | BOLT Price: $1.48 |
| 13 | 01547-0616B | BOLT Price: $2.94 |
| 14 | 59261-06L00 | CLAMP,FR BRAKE HOSE NO.1 Price: $11.43 |
