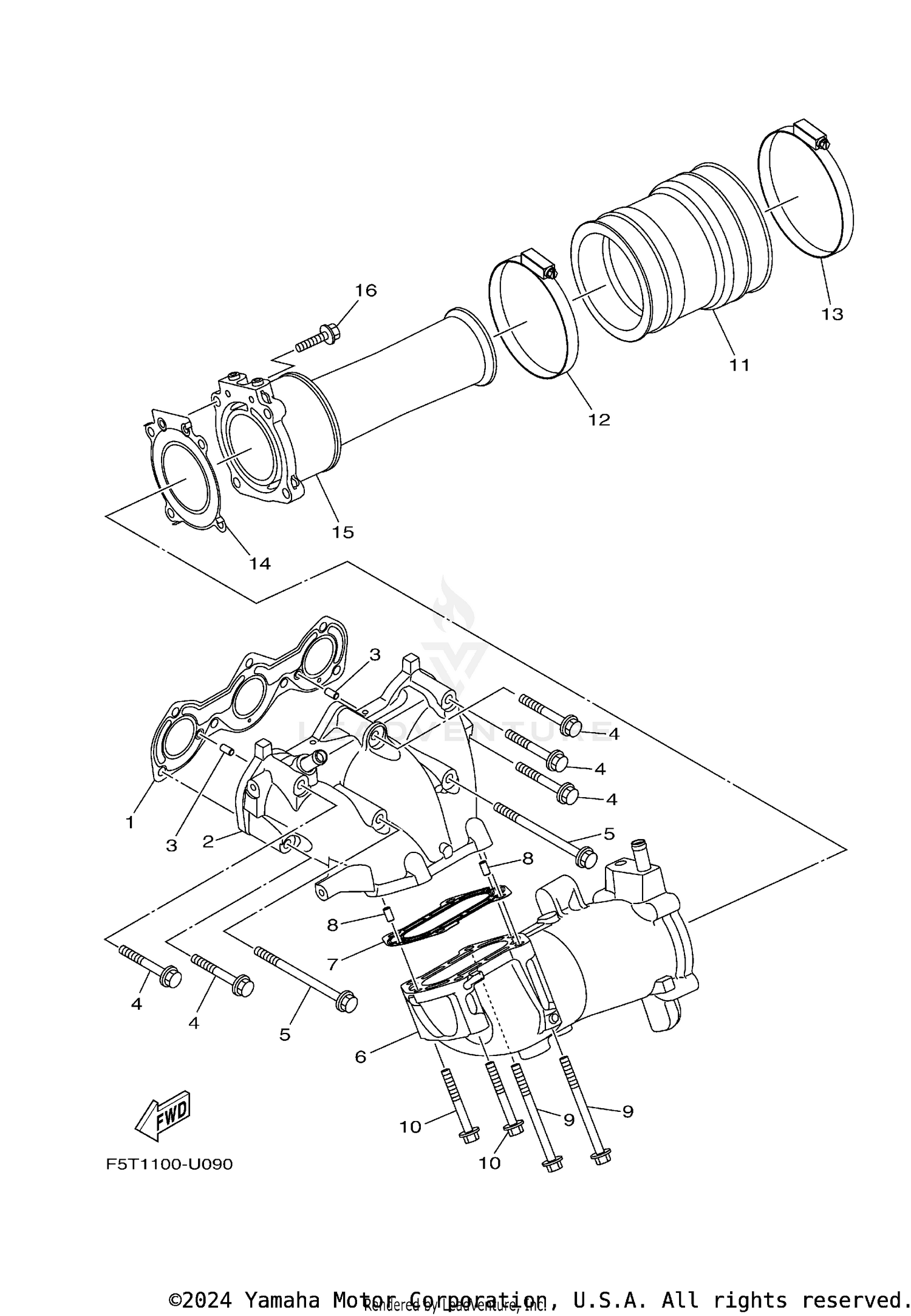

| Ref | Part Number | Description |
|---|
| 1 |
6EY-14613-00-00 |
GASKET, EXHAUST PIPE Price: $12.99 |
| 2 |
6EY-14711-00-00 |
MUFFLER 1 Price: $507.49 |
| 3 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 4 |
90119-08034-00 |
BOLT, WITH WASHER Price: $4.49 |
| 5 |
90119-08097-00 |
BOLT, WITH WASHER Price: $6.99 |
| 6 |
6EY-14721-00-00 |
MUFFLER 2 Price: $496.49 |
| 7 |
6EY-14739-00-00 |
GASKET, MUFFLER DAMPER 1 Price: $9.49 |
| 8 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 9 |
90119-08029-00 |
BOLT, WITH WASHER Price: $4.99 |
| 10 |
90119-08093-00 |
BOLT, WITH WASHER Price: $5.50 |
| 11 |
6S5-E4752-01-00 |
PIPE, OUTLET This part replaces 6S5-E4752-00-00. Price: $33.99 |
| 12 |
90450-99808-00 |
HOSE CLAMP ASSY Price: $10.99 |
| 13 |
90450-99809-00 |
HOSE CLAMP ASSY Price: $10.99 |
| 14 |
6EY-14749-01-00 |
GASKET, MUFFLER DAMPER 2 This part replaces 6EY-14749-00-00. Price: $9.99 |
| 15 |
6EY-14784-00-00 |
PIPE, TAIL Price: $109.99 |
