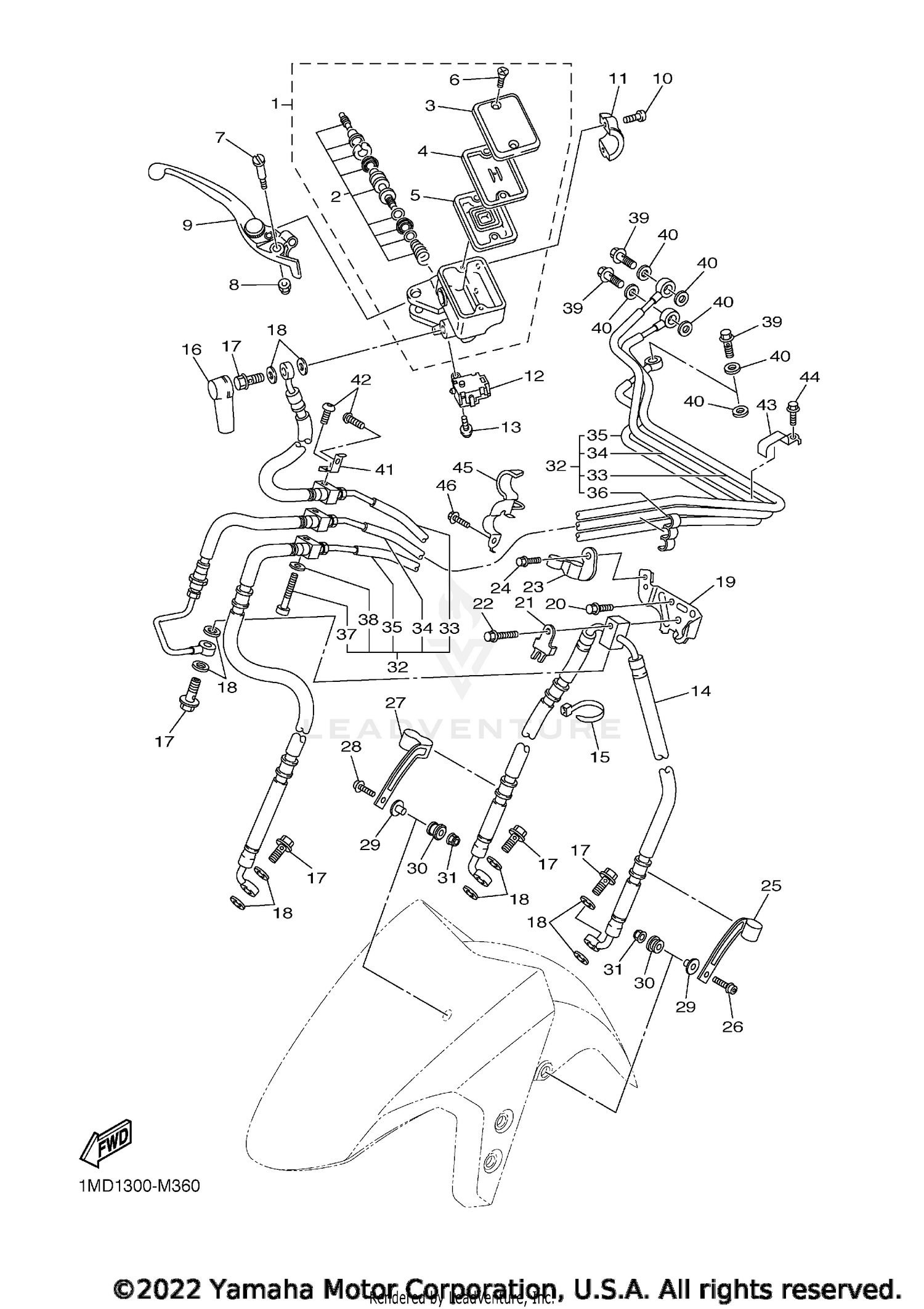

| Ref | Part Number | Description |
|---|
| 1 |
1MC-2580A-00-00 |
MASTER CYLINDER SUB ASSY 2 Price: $188.99 |
| 2 |
1MC-25807-00-00 |
CYLINDER KIT, MASTER Price: $36.99 |
| 3 |
5VS-25852-00-00 |
CAP, RESERVOIR Price: $30.99 |
| 4 |
5VS-25855-00-00 |
BUSH, DIAPHRAGM Price: $17.99 |
| 5 |
20S-25854-00-00 |
DIAPHRAGM, RESERVOIR Price: $31.99 |
| 6 |
5VS-2589H-00-00 |
SCREW Price: $4.45 |
| 7 |
5VS-2589F-00-00 |
BOLT, LEVER Price: $15.49 |
| 8 |
95617-06100-00 |
NUT, S/L Price: $2.90 |
| 9 |
5VS-83922-00-00 |
LEVER 2 Price: $92.99 |
| 10 |
5VS-26332-00-00 |
BOLT Price: $4.95 |
| 11 |
2D2-25867-00-00 |
BRACKET, MASTER CYLINDER Price: $24.99 |
| 12 |
1MC-83980-11-00 |
FRONT STOP SWITCH AS Price: $150.99 |
| 13 |
97602-04214-00 |
SCREW, PAN HEAD WITH WASHER Price: $6.49 |
| 14 |
90179-22032-00 |
NUT This part replaces 1MD-25872-01-00. Price: $17.49 |
| 15 |
1UA-82591-00-00 |
BAND Price: $5.49 |
| 16 |
4L0-25862-01-00 |
BOOT, MASTER CYLINDER Price: $8.49 |
| 17 |
90401-10020-00 |
BOLT, UNION Price: $10.49 |
| 18 |
90430-10005-00 |
GASKET Price: $9.49 |
| 19 |
3P6-25886-00-00 |
HOLDER, BRAKE HOSE Price: $20.99 |
| 20 |
95022-06010-00 |
BOLT, FLANGE Price: $6.49 |
| 21 |
5VS-25843-00-00 |
SLEEVE, CALIPER Price: $7.99 |
| 22 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 23 |
3P6-2587A-01-00 |
HOLDER, BRAKE HOSE 4 Price: $9.49 |
| 24 |
95022-06010-00 |
BOLT, FLANGE Price: $6.49 |
| 25 |
1MD-25875-00-00 |
HOLDER, BRAKE HOSE 1 Price: $33.99 |
| 26 |
90109-06031-00 |
BOLT Price: $2.85 |
| 27 |
1MD-25876-00-00 |
HOLDER, BRAKE HOSE 2 Price: $47.99 |
| 28 |
90109-06031-00 |
BOLT Price: $2.85 |
| 29 |
90387-06159-00 |
COLLAR This part replaces 90387-065J6-00. Price: $9.49 |
| 30 |
90480-12072-00 |
GROMMET Price: $9.49 |
| 31 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 32 |
1MD-2584A-01-00 |
BRAKE HOSE ASSY Price: $374.99 |
| 36 |
90464-07003-00 |
CLAMP Price: $6.49 |
| 37 |
91317-06040-00 |
BOLT This part replaces 90110-06149-00. Price: $4.05 |
| 38 |
92907-06600-00 |
WASHER, PLATE Price: $1.00 |
| 39 |
90401-10020-00 |
BOLT, UNION Price: $10.49 |
| 40 |
90430-10005-00 |
GASKET Price: $9.49 |
| 41 |
3P6-25875-10-00 |
HOLDER, BRAKE HOSE 1 Price: $13.99 |
| 42 |
92012-06010-00 |
BOLT, BUTTON HEAD Price: $4.65 |
| 43 |
3P6-2639F-00-00 |
HOLDER 2 Price: $3.90 |
| 44 |
95022-06010-00 |
BOLT, FLANGE Price: $6.49 |
| 45 |
3P6-26393-00-00 |
HOLDER Price: $12.99 |
