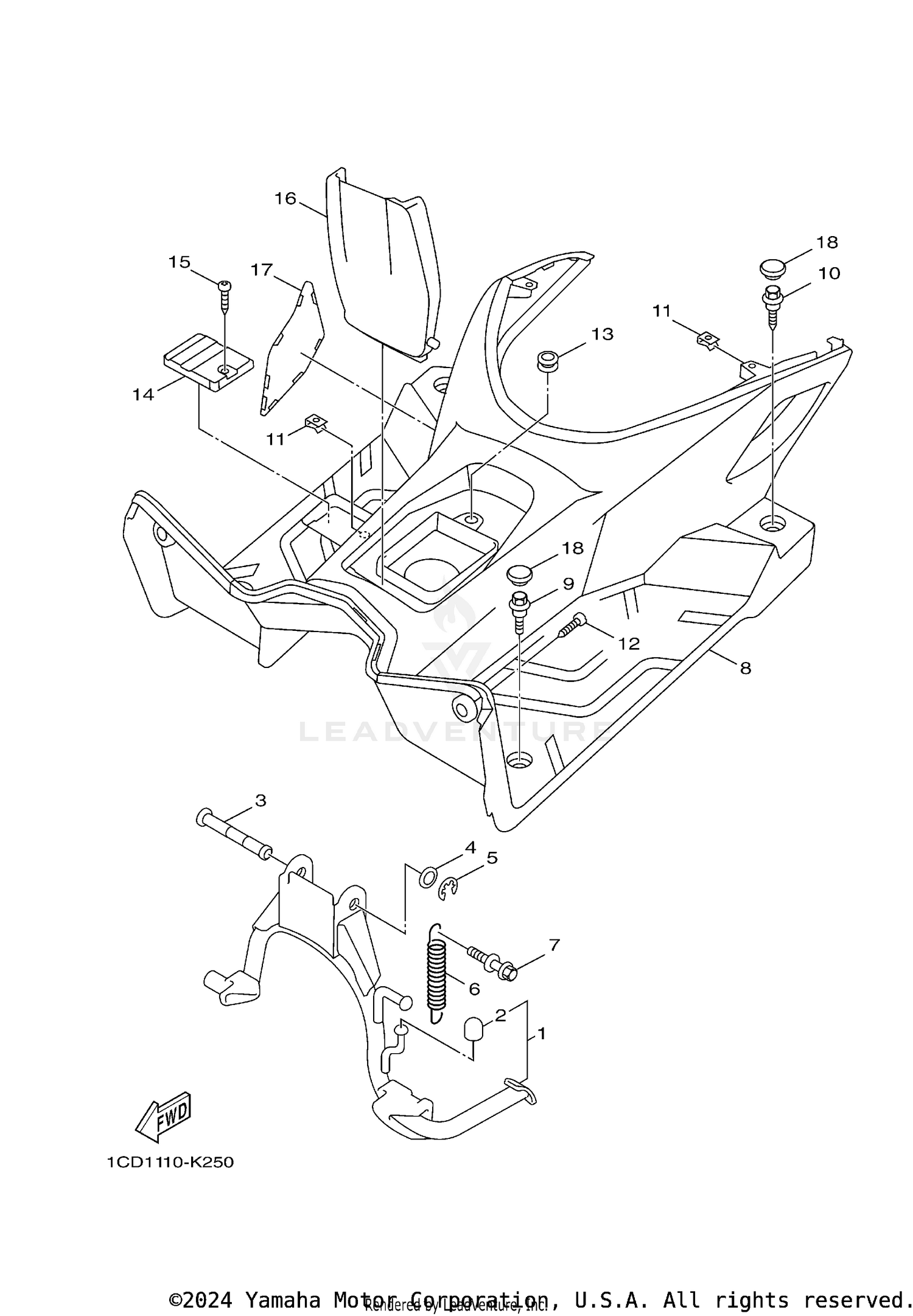

STAND FOOTREST
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1CD-XF711-00-00 | STAND, MAIN Price: $40.99 |
| 2 | 5CA-F7114-00-00 | STOPPER, MAIN STAND Price: $1.30 |
| 3 | 90249-10801-00 | PIN Price: $3.95 |
| 4 | 90201-10119-00 | WASHER, PLATE Price: $1.00 |
| 5 | 99001-08600-00 | CIRCLIP Price: $9.49 |
| 6 | 90506-32803-00 | SPRING, TENSION Price: $2.55 |
| 7 | 5SU-F7254-01-00 | HOOK Price: $2.25 |
| 8 | 1CD-F7480-10-00 | FOOTREST BOARD ASSY Price: $58.99 |
| 9 | 90109-06043-00 | BOLT Price: $3.00 |
| 10 | 90109-06872-00 | BOLT Price: $2.25 |
| 11 | 90183-05827-00 | NUT, SPRING This part replaces 90183-05816-00. Price: $1.65 |
| 12 | 97707-50016-00 | SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 13 | 90480-01884-00 | GROMMET Price: $0.35 |
| 14 | 1CD-F7463-00-00 | COVER 2 Price: $3.35 |
| 15 | 97707-50012-00 | SCREW, TRUSS HEAD TAPPING Price: $4.63 |
| 16 | 1CD-F7453-10-00 | COVER 1 Price: $4.25 |
| 17 | 1CD-F7475-10-00 | CAP 1 Price: $2.45 |
