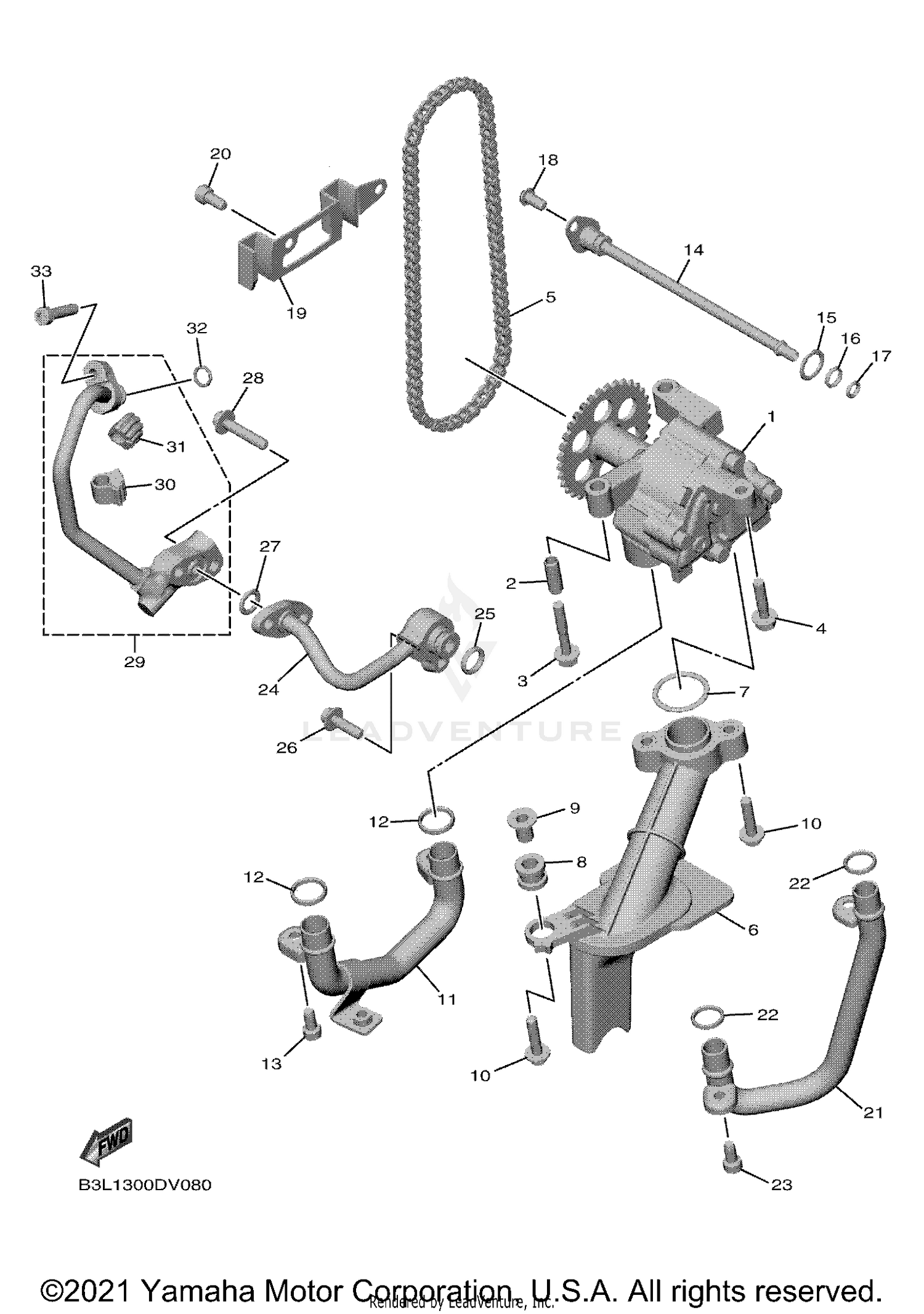

| Ref | Part Number | Description |
|---|
| 1 |
B3L-13300-00-00 |
OIL PUMP ASSY Price: $275.99 |
| 2 |
91808-22019-00 |
PIN, DOWEL Price: $10.49 |
| 3 |
90110-06433-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06432-00. Price: $1.70 |
| 4 |
90110-06172-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06173-00. Price: $10.49 |
| 5 |
94580-31080-00 |
CHAIN Price: $26.99 |
| 6 |
2CR-13410-01-00 |
STRAINER HOUSING ASS Price: $28.99 |
| 7 |
93210-22M93-00 |
O-RING Price: $5.99 |
| 8 |
90480-13010-00 |
GROMMET Price: $8.49 |
| 9 |
5VY-13117-10-00 |
COLLAR, DISTANCE Price: $9.49 |
| 10 |
90110-06172-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06173-00. Price: $10.49 |
| 11 |
2CR-13416-00-00 |
PIPE, OIL 1 Price: $50.99 |
| 12 |
93210-14003-00 |
O-RING Price: $9.49 |
| 13 |
91317-06012-00 |
BOLT This part replaces 90110-06182-00. Price: $9.49 |
| 14 |
2CR-1316E-00-00 |
PIPE, DELIVERY 5 Price: $52.99 |
| 15 |
93210-12010-00 |
O-RING Price: $8.49 |
| 16 |
93210-09525-00 |
O-RING Price: $6.49 |
| 17 |
93210-06667-00 |
O-RING Price: $8.49 |
| 18 |
90149-06156-00 |
SCREW This part replaces 90149-06158-00. Price: $9.49 |
| 19 |
2CR-13898-00-00 |
HOLDER Price: $25.99 |
| 20 |
91317-06012-00 |
BOLT This part replaces 90110-06182-00. Price: $9.49 |
| 21 |
2CR-13171-00-00 |
PIPE, DELIVERY 2 Price: $43.99 |
| 22 |
93210-13361-00 |
O-RING Price: $6.49 |
| 23 |
91317-06012-00 |
BOLT This part replaces 90110-06182-00. Price: $9.49 |
| 24 |
2CR-13405-00-00 |
OIL PIPE COMP. 1 Price: $106.99 |
| 25 |
93210-12790-00 |
O-RING Price: $8.49 |
| 26 |
90110-06396-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06395-00. Price: $3.20 |
| 27 |
93210-12790-00 |
O-RING Price: $8.49 |
| 28 |
90110-06388-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06389-00. Price: $6.49 |
| 29 |
2CR-13170-00-00 |
DELIVERY PIPE ASSY 2 Price: $198.99 |
| 30 |
2CR-13159-00-00 |
DAMPER Price: $5.49 |
| 31 |
2CR-13593-00-00 |
DAMPER Price: $7.49 |
| 32 |
93210-09350-00 |
O-RING This part replaces 93210-09754-00. Price: $7.49 |
