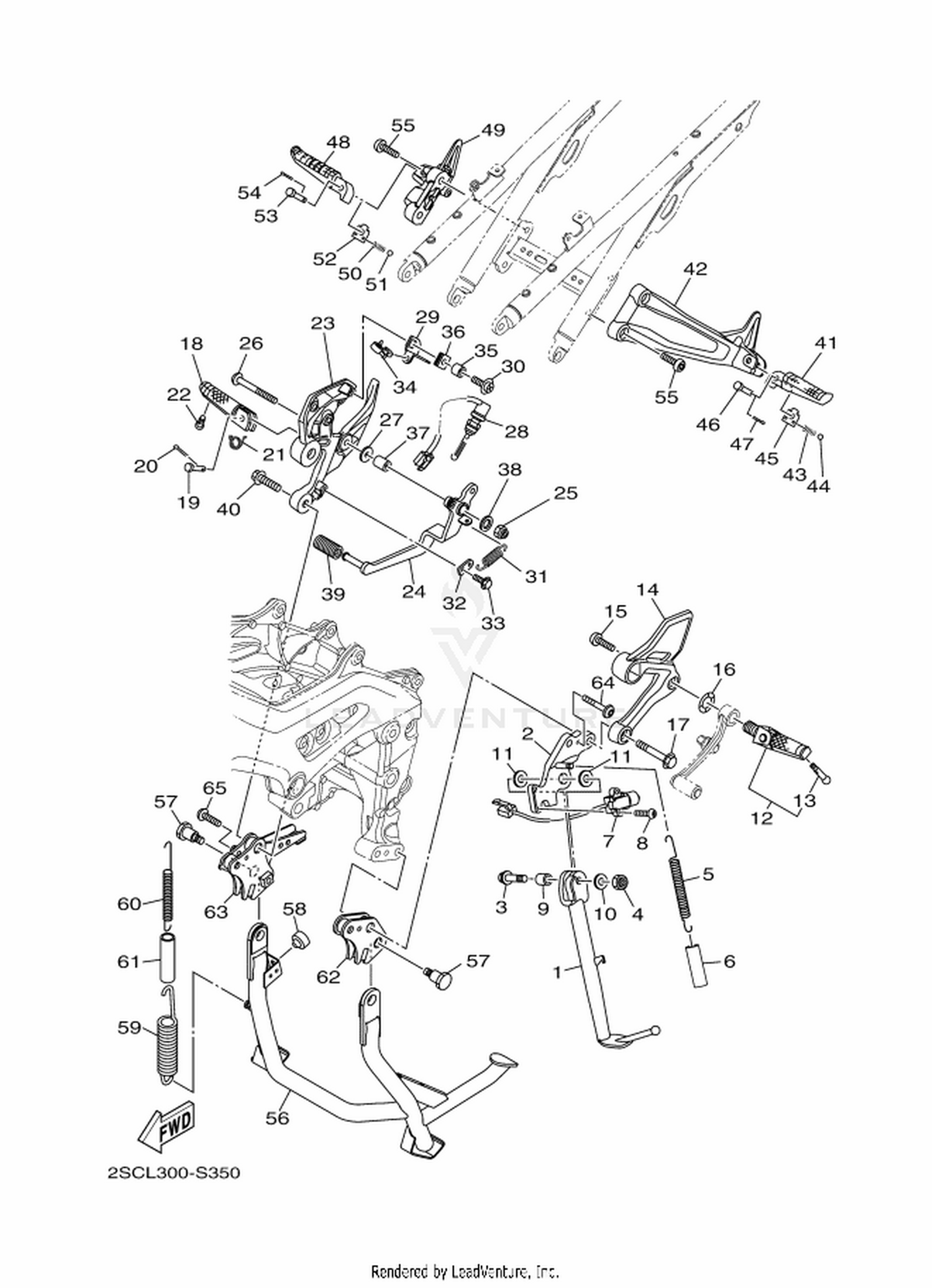

| Ref | Part Number | Description |
|---|
| 1 |
1RC-27311-00 |
STAND, SIDE Price: Call Us |
| 2 |
1RC-27321-00 |
BRACKET, SIDE STAND Price: Call Us |
| 3 |
90105-10188 |
BOLT, WASHER BASED Price: Call Us |
| 4 |
95612-10100 |
NUT, U Price: Call Us |
| 5 |
90506-20032 |
SPRING, TENSION Price: Call Us |
| 6 |
90445-197J2 |
HOSE (L60) Price: Call Us |
| 7 |
1RC-82566-50 |
SWITCH, SIDE STAND Price: Call Us |
| 8 |
90111-05036 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 9 |
90387-10050 |
COLLAR Price: Call Us |
| 10 |
90201-10035 |
WASHER, PLATE Price: Call Us |
| 11 |
90201-17018 |
WASHER, PLATE Price: Call Us |
| 12 |
2PP-27410-00 |
FRONT FOOTREST ASSY (LEFT) Price: Call Us |
| 13 |
90109-08233 |
BOLT Price: Call Us |
| 14 |
1RC-27442-00 |
BRACKET 2 Price: Call Us |
| 15 |
90111-10039 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 16 |
90206-17084 |
WASHER, WAVE Price: Call Us |
| 17 |
90105-10435 |
BOLT, FLANGE Price: Call Us |
| 18 |
3XV-27461-02 |
FOOTREST Price: Call Us |
| 19 |
91701-08040 |
PIN Price: Call Us |
| 20 |
91402-25015 |
PIN, COTTER Price: Call Us |
| 21 |
90508-20572 |
SPRING, TORSION Price: Call Us |
| 22 |
90109-08233 |
BOLT Price: Call Us |
| 23 |
BS2-27443-00 |
BRACKET 3 Price: Call Us |
| 24 |
2PP-27211-00 |
PEDAL, BRAKE Price: Call Us |
| 25 |
90185-08089 |
NUT, SELF-LOCKING Price: Call Us |
| 26 |
90111-08005 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 27 |
90201-08103 |
WASHER, PLATE Price: Call Us |
| 28 |
B90-82530-00 |
STOP SWITCH ASSY Price: Call Us |
| 29 |
1RC-2144G-00 |
STAY, STOP SWITCH Price: Call Us |
| 30 |
90159-06150 |
SCREW, WITH WASHER Price: Call Us |
| 31 |
90506-23008 |
SPRING, TENSION Price: Call Us |
| 32 |
1RC-27432-00 |
BRACKET 1 Price: Call Us |
| 33 |
95802-06010 |
BOLT, FLANGE Price: Call Us |
| 34 |
90464-15157 |
CLAMP Price: Call Us |
| 35 |
90387-06M16 |
COLLAR Price: Call Us |
| 36 |
90480-12607 |
GROMMET Price: Call Us |
| 37 |
90387-08102 |
COLLAR Price: Call Us |
| 39 |
5EB-18113-00 |
COVER, SHIFT PEDAL Price: Call Us |
| 40 |
90105-10246 |
BOLT, FLANGE Price: Call Us |
| 41 |
3VR-27431-02 |
FOOTREST, REAR 1 Price: Call Us |
| 42 |
2PP-2741L-00 |
BRACKET 4 Price: Call Us |
| 43 |
90501-12743 |
SPRING, COMPRESSION Price: Call Us |
| 44 |
93501-04011 |
BALL Price: Call Us |
| 45 |
5VX-27437-00 |
WASHER, SPECIAL Price: Call Us |
| 47 |
91401-25015 |
PIN, COTTER Price: Call Us |
| 48 |
3VR-27441-02 |
FOOTREST, REAR 2 Price: Call Us |
| 49 |
2PP-2742L-00 |
BRACKET 5 Price: Call Us |
| 50 |
90501-12743 |
SPRING, COMPRESSION Price: Call Us |
| 51 |
93501-04011 |
BALL Price: Call Us |
| 52 |
5VX-27437-00 |
WASHER, SPECIAL Price: Call Us |
| 54 |
91401-25015 |
PIN, COTTER Price: Call Us |
| 55 |
90111-08083 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 56 |
2PP-27111-00 |
STAND, MAIN Price: Call Us |
| 57 |
90109-10060 |
BOLT Price: Call Us |
| 58 |
36C-27114-00 |
STOPPER, MAIN STAND Price: Call Us |
| 59 |
2PP-27116-00 |
SPRING, MAIN STAND Price: Call Us |
| 60 |
2PP-27116-10 |
SPRING, MAIN STAND Price: Call Us |
| 61 |
90445-19003 |
HOSE Price: Call Us |
| 62 |
2PP-27151-00 |
BRACKET, MAIN STAND Price: Call Us |
| 63 |
2PP-27152-00 |
BRACKET, MAIN STAND 2 Price: Call Us |
| 64 |
92012-06040 |
BOLT, BUTTON HEAD Price: Call Us |
