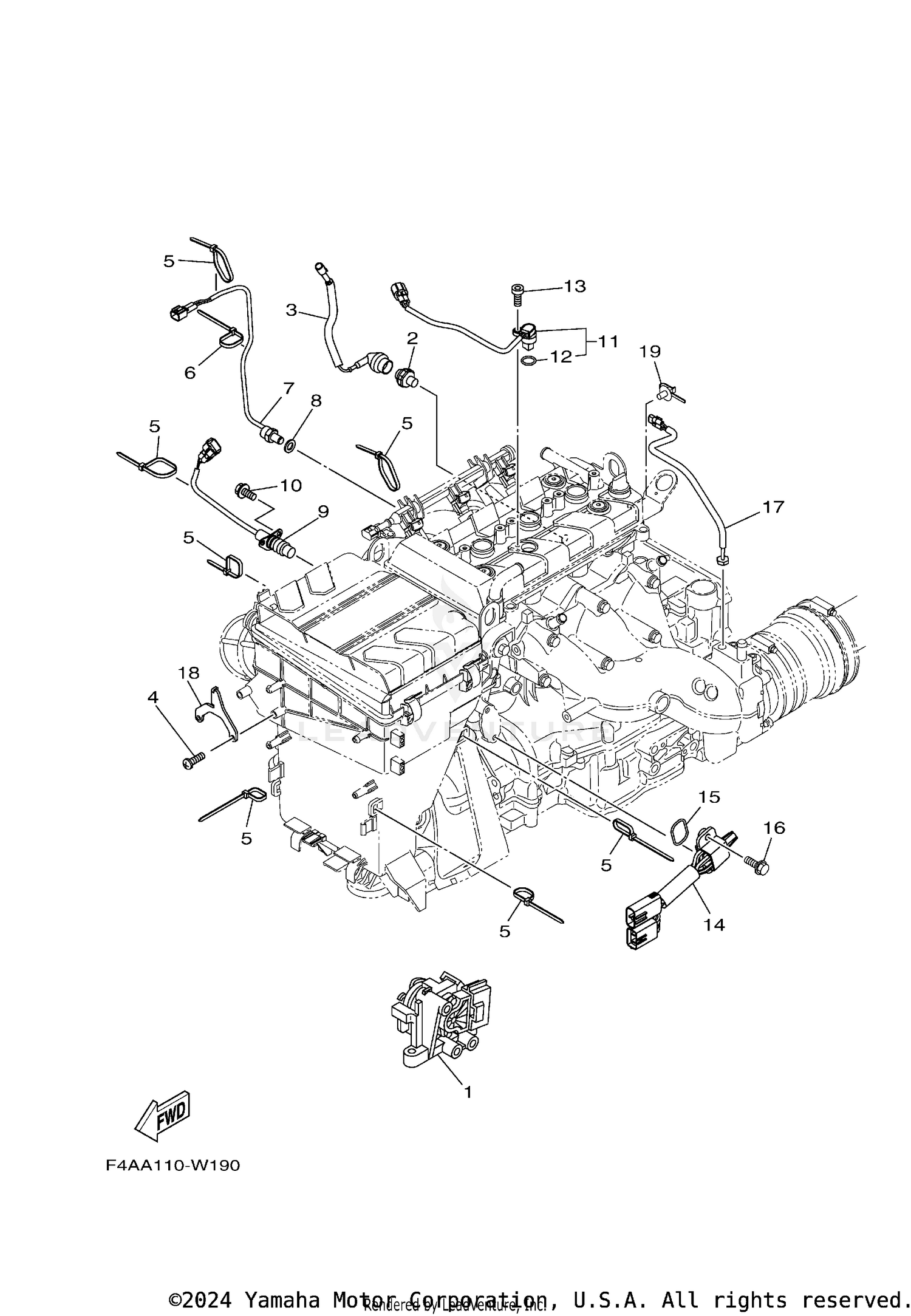

ELECTRICAL 2
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6S8-14305-12-00 | THROTTLE LEVER COMP Price: $267.49 |
| 2 | 68V-82504-00-00 | OIL PRESSURE SWITCH ASSY Price: $84.90 |
| 3 | 60E-81315-01-00 | LEAD WIRE ASSY Price: $41.99 |
| 4 | 97780-60520-00 | SCREW, TAPPING Price: $4.49 |
| 5 | 90464-35132-00 | CLAMP Price: $10.49 |
| 6 | 90465-13M39-00 | CLAMP Price: $5.50 |
| 7 | 61A-85790-01-00 | THERMOSENSOR ASSY Price: $144.10 |
| 8 | 92990-10600-00 | WASHER, PLATE Price: $3.00 |
| 9 | 6CR-82560-00-00 | THERMO SWITCH ASSY Price: $96.99 |
| 10 | 97E95-06520-00 | BOLT, HEXAGON W/W Price: $3.05 |
| 11 | 2S3-85896-02-00 | SENSOR, CAM POSITI Price: $108.99 |
| 12 | 4D9-81168-00-00 | O-RING Price: $7.49 |
| 13 | 91380-06016-00 | BOLT Price: $7.49 |
| 14 | 6CS-8273J-11-00 | EARTH PLATE COMP. This part replaces 6CS-8273J-10-00. Price: $182.99 |
| 15 | 93210-32172-00 | O-RING Price: $8.49 |
| 16 | 90119-06MA3-00 | BOLT, WITH WASHER Price: $3.20 |
| 17 | 6DE-85790-00-00 | THERMOSENSOR ASSY Price: $120.99 |
| 18 | 6EY-83618-00-00 | PLATE Price: $7.99 |
