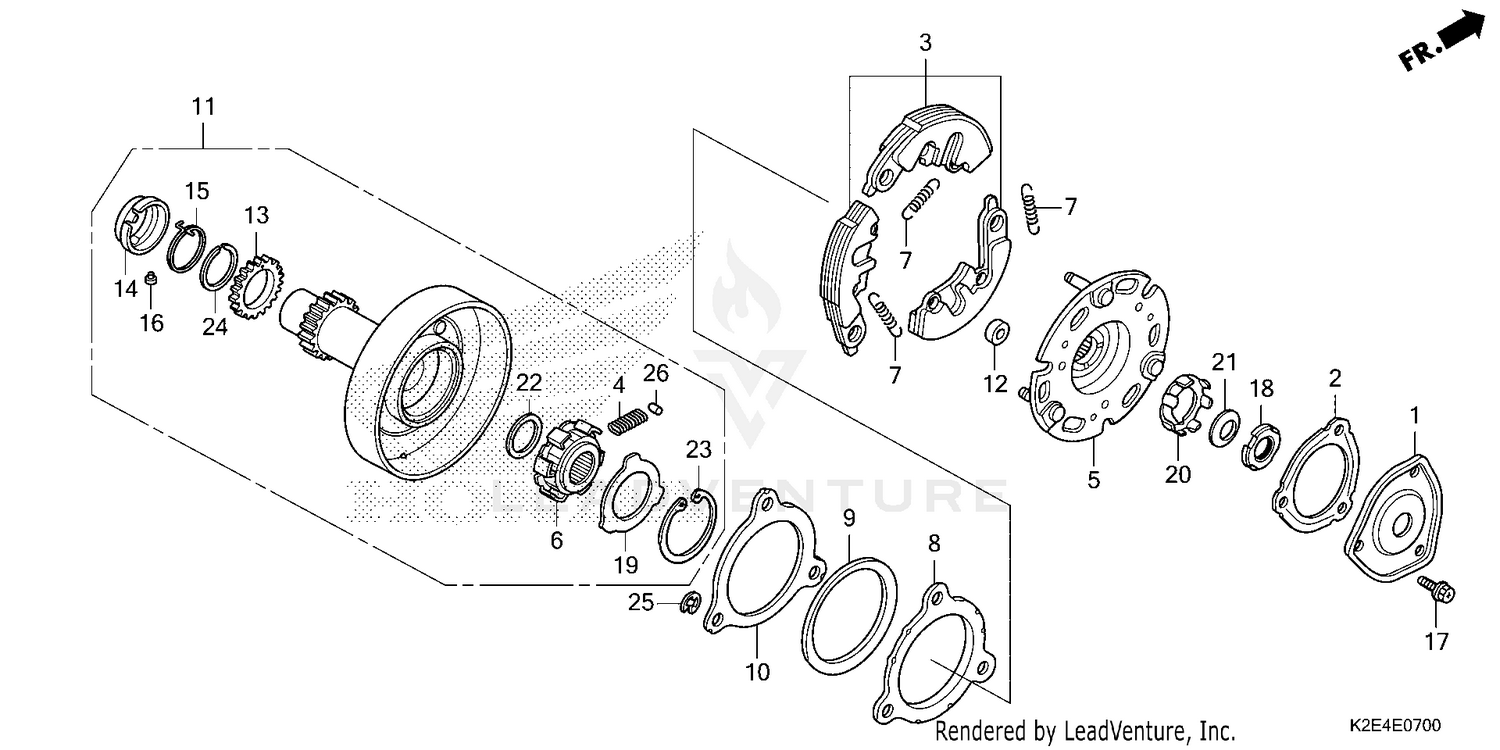

| Ref | Part Number | Description |
|---|
| 1 |
15431-KPH-900 |
COVER, OIL FILTER Price: $2.62 |
| 2 |
15439-KWW-741 |
GASKET, OIL FILTER COVER (NICHIAS) Price: $1.40 |
| 3 |
22535-K73-T30 |
WEIGHT SET, PRIMARY CLUTCH (F.C.C.) Price: $62.62 |
| 4 |
22606-GN5-910 |
SPRING, ONE-WAY RETAINER Price: $3.55 |
| 5 |
22610-KYZ-901 |
PLATE, PRIMARY DRIVE Price: $21.16 |
| 6 |
22630-KYZ-901 |
INNER, ONE-WAY CLUTCH Price: $8.80 |
| 7 |
22641-KYZ-901 |
SPRING, PRIMARY CLUTCH Price: $1.04 |
| 8 |
22642-K73-T31 |
WASHER, CLUTCH SIDE Price: $2.11 |
| 9 |
22643-KPH-900 |
SPRING, SIDE FRICTION Price: $12.13 |
| 10 |
22644-K73-T31 |
PLATE, CLUTCH SIDE Price: $2.33 |
| 11 |
22660-K73-T61 |
CLUTCH OUTER ASSY., PRIMARY (F.C.C.) Price: $104.80 |
| 12 |
22804-KPH-880 |
RUBBER, CLUTCH DAMPER Price: $0.65 |
| 13 |
23122-K73-T61 |
SUB-GEAR (20T) Price: $5.15 |
| 14 |
23123-KPH-900 |
RETAINER, SPRING (F.C.C.) Price: $8.31 |
| 15 |
23124-KPH-900 |
SPRING, SUB-GEAR Price: $1.15 |
| 16 |
23125-GN5-910 |
PIN (F.C.C.) Price: $4.25 |
| 17 |
90083-KFL-850 |
BOLT, SPECIAL FLANGE (5X8) Price: $1.13 |
| 18 |
90231-087-010 |
NUT, LOCK (14MM) Price: $4.78 |
| 19 |
90401-GB2-000 |
WASHER (30X45X0.8) Price: $6.02 |
| 20 |
90431-GN5-910 |
WASHER, LOCK Price: $4.58 |
| 21 |
90432-086-000 |
WASHER B, LOCK Price: $5.56 |
| 22 |
90433-KWB-601 |
WASHER (17X23X1.5) (F.C.C.) Price: $1.29 |
| 23 |
90455-GB2-000 |
CIRCLIP (INNER) (45MM) Price: $7.35 |
| 24 |
90603-KPH-900 |
SET-RING (25MM) Price: $2.15 |
| 25 |
90605-166-720 |
CIRCLIP (7MM) Price: $2.05 |
