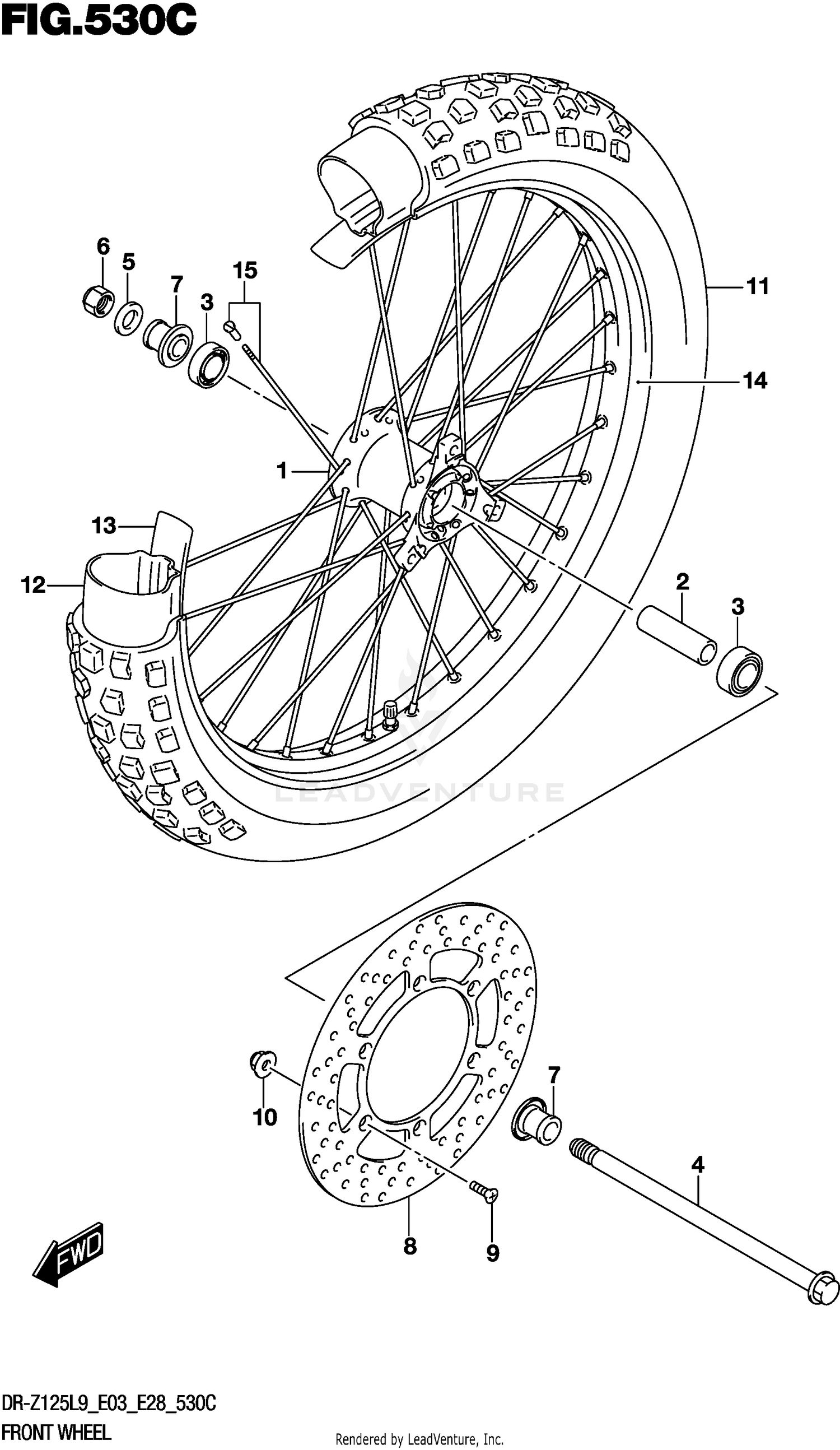

FRONT WHEEL (DR-Z125LL9 E28)
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 54111-02B42 | HUB, FRONT WHEEL Price: $338.47 |
| 2 | 54731-02B40 | SPACER, BEARING Price: $14.77 |
| 3 | 08133-62017 | BEARING Price: $22.81 |
| 4 | 54711-08G10 | AXLE, FRONT Price: $49.02 |
| 5 | 09160-12082 | WASHER (12.5X24X3.2) Price: $4.06 |
| 6 | 08319-2112A | NUT Price: $4.57 |
| 7 | 54740-02B40 | SPACER, FRONT AXLE Price: $19.92 |
| 8 | 59221-08G00 | DISC, FRONT BRAKE Price: $326.86 |
| 9 | 09126-06009 | SCREW (6X22) Price: $2.85 |
| 10 | 08319-3106A | NUT Price: $2.45 |
| 12 | 55200-08G11 | TUBE ASSY, WHEEL INNER This part replaces 55200-08G10. Price: $26.98 |
| 13 | 55261-08G30 | PROTECTOR, WHEEL INNER TUBE Price: $5.90 |
| 14 | 55311-08G30 | RIM, FRONT WHEEL (19X1.40) Price: $344.57 |
