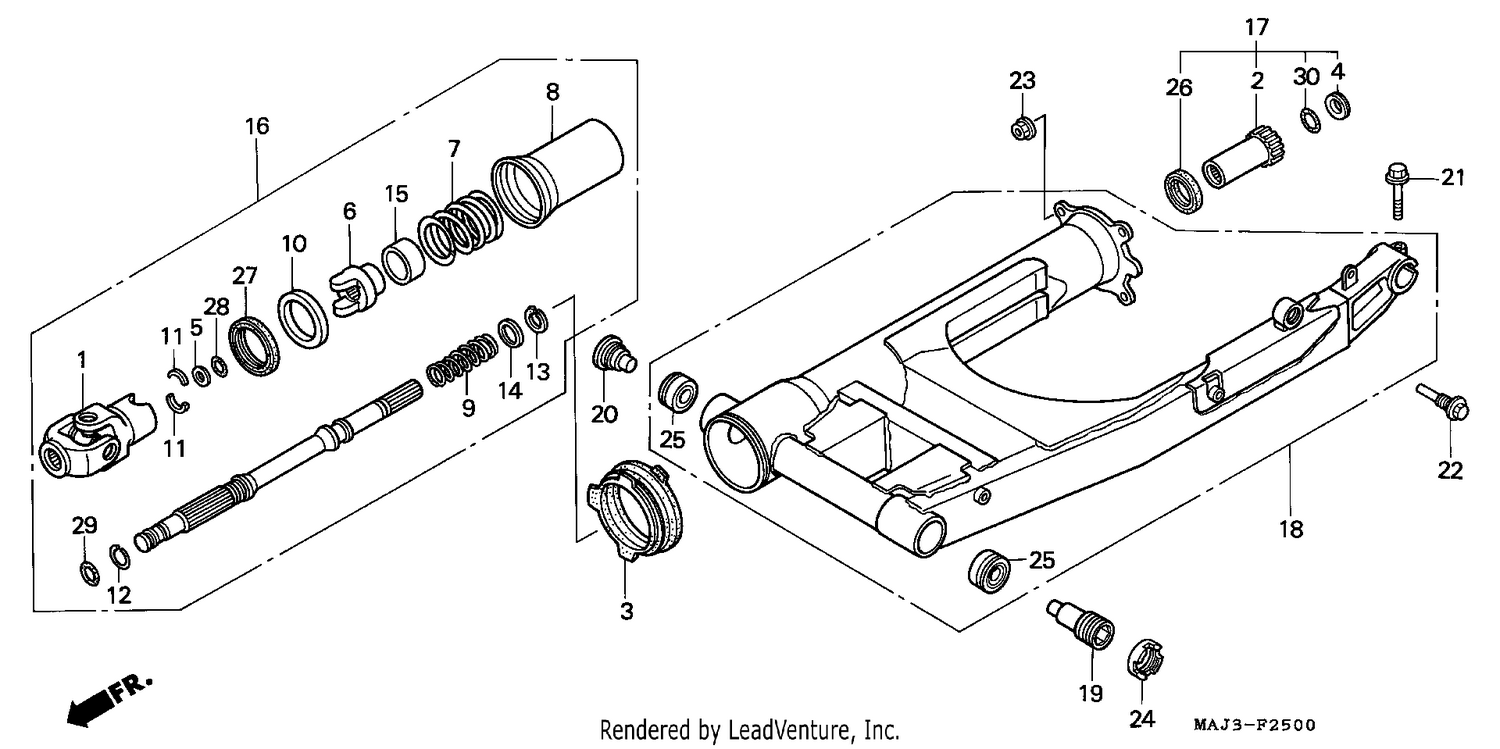

SWINGARM

SWINGARM

Parts (29)

RefPart NumberDescription
1 40200MY3003 JOINT COMP., YOKE Price: Call Us
2 40202MT3000 JOINT, PROPELLER SHAFT Price: Call Us
3 40207MT3610 BOOT, JOINT Price: Call Us
4 40210MT3000 CAP, PROPELLER SHAFT Price: Call Us
5 40211MT3000 WASHER, THRUST Price: Call Us
6 40212MT3000 LIFTER, DAMPER Price: Call Us
7 40213MB0010 SPRING, DAMPER CAM Price: Call Us
8 40214MT3000 COVER, DAMPER Price: Call Us
9 40215MG9000 SPRING, PROPELLER SHAFT Price: Call Us
10 40217MT3000 GUIDE, OIL SEAL Price: Call Us
11 40218MT3000 WASHER, YOKE JOINT Price: Call Us
12 40219MB0000 RING, DAMPER COVER Price: Call Us
13 40219MG9000 CIRCLIP Price: Call Us
14 40222MG9000 STOPPER, PROPELLER SHAFT Price: Call Us
15 40224MT3000 STOPPER, DAMPER LIFTER Price: Call Us
16 40250MY3003 SHAFT ASSY., PROPELLER Price: Call Us
17 40255MT3000 JOINT ASSY., PROPELLER SHAFT Price: Call Us
18 52100MAJG40 SWINGARM ASSY. Price: Call Us
19 90121MT3000 BOLT, L. SWINGARM PIVOT Price: Call Us
20 90122MB0000 BOLT, L. RR. FORK PIVOT Price: Call Us
21 90153438000 BOLT, STEERING HANDLE SETTING Price: Call Us
22 90158MN5000 BOLT, BRAKE STOPPER Price: Call Us
23 90308357000 NUT, HEX., 10MM Price: Call Us
24 90355469000 NUT, SWINGARM PIVOT LOCK Price: Call Us
25 91066HA7672 BEARING, TAPER ROLLER, 17X40X13.25 (KOYO) Price: Call Us
26 91263MT3005 OIL SEAL, 30X43X7 Price: Call Us
27 91271MT3003 OIL SEAL, 44X54X7 Price: Call Us
28 91303KF0003 O-RING, 14.8X2.4 (ARAI) Price: Call Us
29 91361MB0000 O-RING, 19X1.9 Price: Call Us
