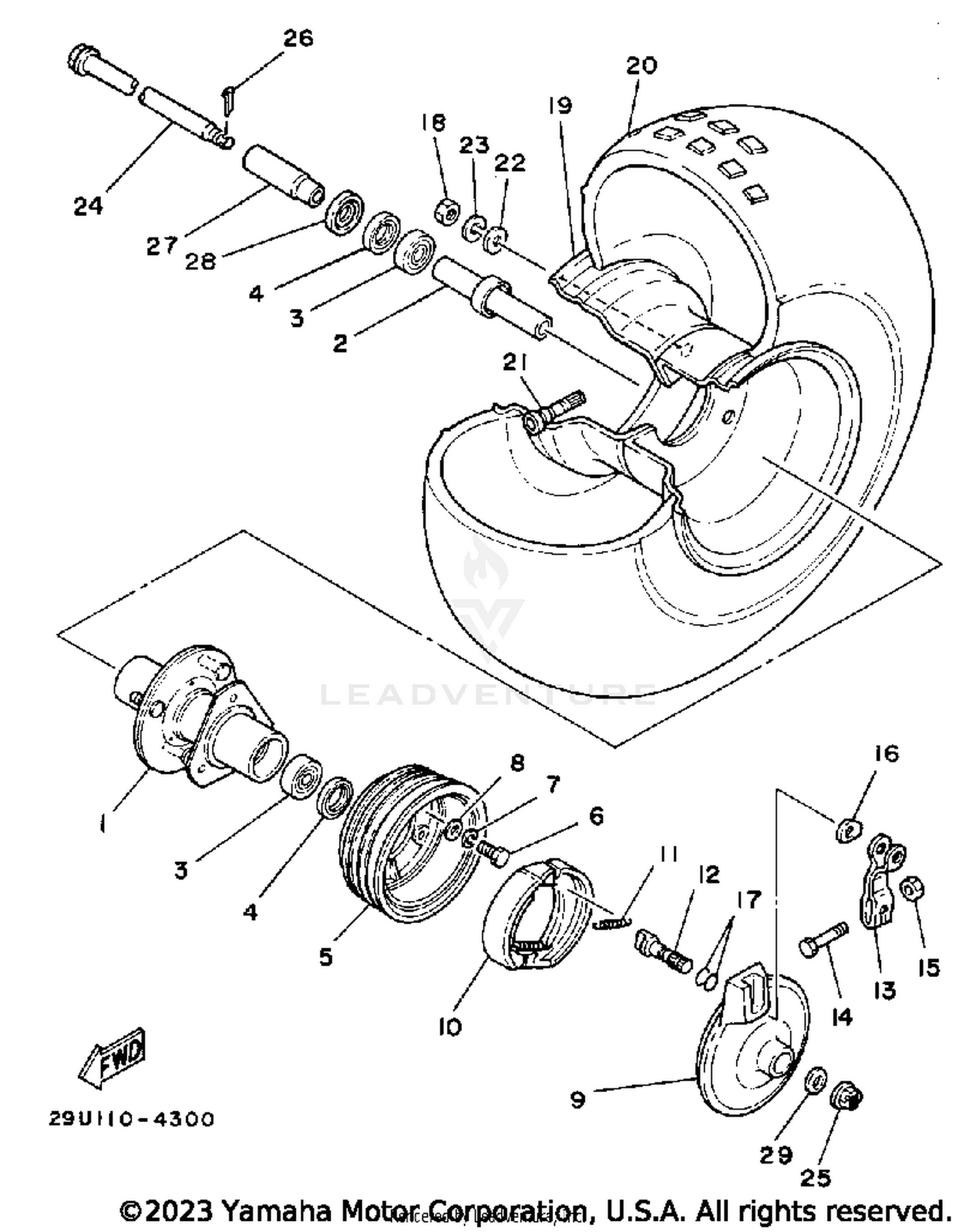

| Ref | Part Number | Description |
|---|
| 1 |
29U-25111-00-00 |
HUB,FRONT Price: $199.99 |
| 2 |
29U-25117-00-00 |
SPACER, BEARING Price: $32.99 |
| 3 |
93306-20310-00 |
BEARING (B6203DU) Price: $41.99 |
| 4 |
93102-23252-00 |
OIL SEAL Price: $16.49 |
| 5 |
5V7-2511E-00-35 |
DRUM, BRAKE This part replaces 5V7-2511E-00-00. Price: $239.99 |
| 6 |
97013-08020-00 |
BOLT (661) This part replaces 97313-08020-00. Price: $1.80 |
| 7 |
92990-08100-00 |
WASHER, SPRING Price: $5.60 |
| 8 |
92990-08600-00 |
WASHER, PLATE Price: $2.70 |
| 10 |
4BE-W253E-00-00 |
BRAKE SHOE KIT This part replaces 5G3-W2536-00-00. Price: $24.99 |
| 11 |
90506-15260-00 |
SPRING, TENSION Price: $9.49 |
| 12 |
4GL-25351-00-00 |
CAMSHAFT This part replaces 3Y6-25351-00-00. Price: $74.99 |
| 13 |
21V-25155-00-00 |
LEVER, CAMSHAFT 1 Price: $17.49 |
| 14 |
90101-06278-00 |
BOLT Price: $2.60 |
| 15 |
95380-06600-00 |
NUT, HEXAGON Price: $4.80 |
| 16 |
5V7-2513A-00-00 |
PLATE, INDICATOR Price: $7.49 |
| 17 |
93210-14579-00 |
O-RING This part replaces 93210-14104-00. Price: $7.49 |
| 18 |
95314-10600-00 |
NUT This part replaces 95311-10600-00. Price: $2.55 |
| 22 |
92990-10200-00 |
WASHER, PLAIN Price: $3.72 |
| 23 |
92990-10100-00 |
WASHER, SPRING Price: $3.25 |
| 24 |
29U-25181-00-00 |
AXLE,WHEEL Price: $50.99 |
| 25 |
90171-14056-00 |
NUT, CASTLE This part replaces 90171-14020-00. Price: $14.49 |
| 26 |
91490-30030-00 |
PIN, COTTER This part replaces 91401-30030-00. Price: $8.49 |
| 27 |
90387-174G6-00 |
COLLAR Price: $13.99 |
| 28 |
5V6-25118-00-00 |
COVER, HUB DUST Price: $8.49 |
