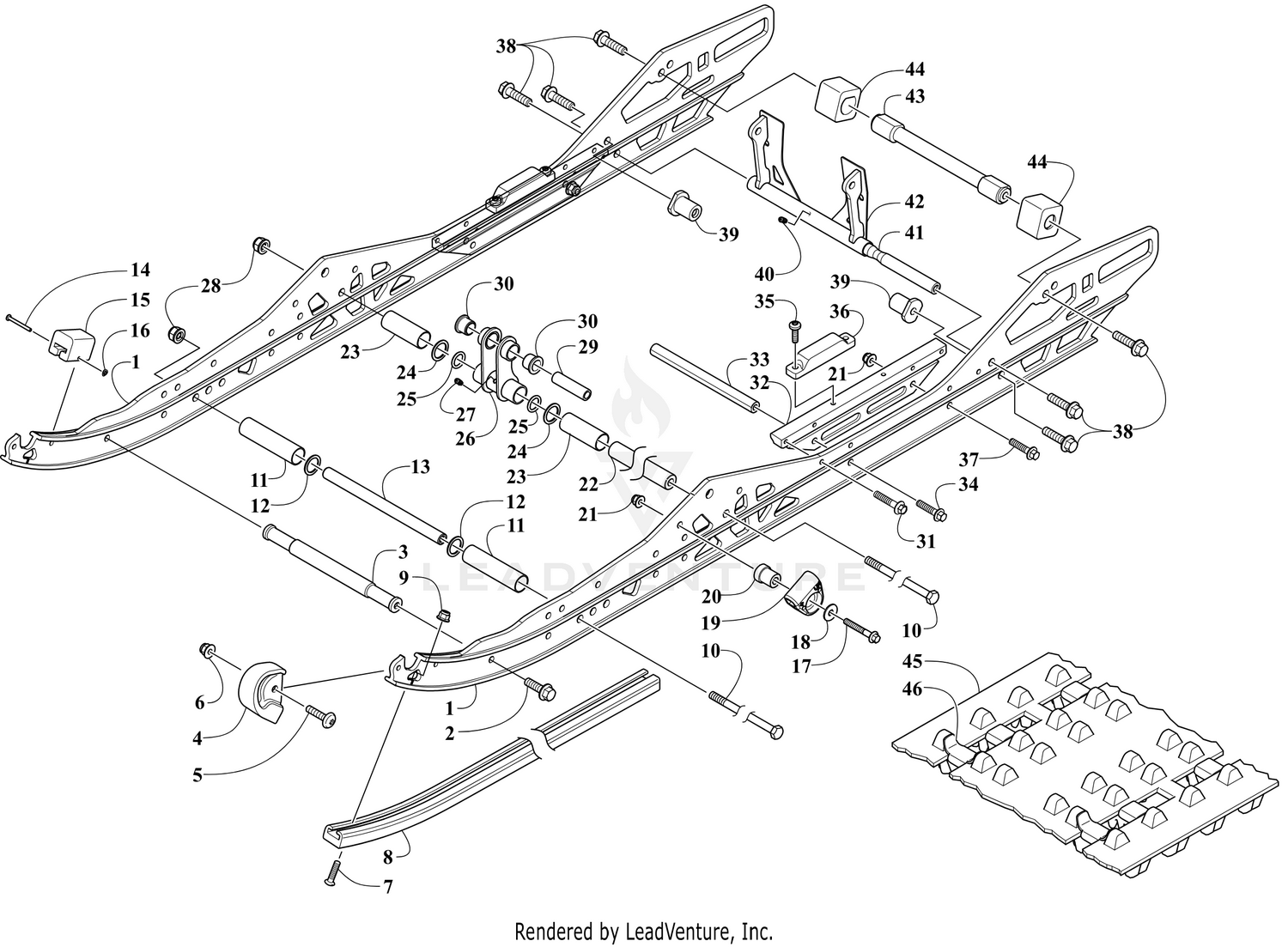

SLIDE RAIL AND TRACK ASSEMBLY [110658]

Parts (44)

Ref	Part Number	Description
0	4704-169	Complete Skid Frame Assembly Price: $6,072.95
1	4704-168	Rail, Formed - Medium Green Price: $210.95
2	8408-826	Screw, Cap Price: $0.46
3	3604-679	Axle Price: $77.95
4	4604-093	End Cap, Slide Rail Price: $7.08
5	8476-630	Screw, Machine Price: $1.18
6	8427-602	Nut, Hex Price: $0.23
7	0123-859	Screw, Machine Price: $1.18
8	3604-864	Wearstrip - Black Price: $35.95
9	8047-366	Nut, Lock Price: $0.46
10	1423-431	Screw, Cap Price: $7.23
11	3604-083	Spacer Price: $13.28
12	0623-912	Washer Price: $1.07
13	3604-798	Axle Price: $64.95
14	0123-767	Rivet, Solid Price: $1.07
15	0104-631	Pad, Shock Price: $7.08
16	0123-766	Nut, Push Price: $1.32
17	8408-850	Screw, Cap Price: $1.20
18	8450-133	Washer Price: $0.35
19	2604-515	Slide, Spring Price: $7.23
20	3604-204	Block, Slide Price: $15.71
21	8427-802	Nut, Lock Price: $0.58
22	3604-269	Axle Price: $64.95
23	3604-581	Spacer Price: $18.95
24	0623-912	Washer Price: $1.07
25	2604-698	O-Ring Price: $0.48
27	9916-963	Fitting, Grease Price: $4.35
28	2623-202	Nut, Lock w/Washer Price: $1.32
29	3604-694	Axle Price: $22.99
30	0104-386	Bushing Price: $4.48
31	1623-948	SCREW,SELF-TAP-HFH TRILOBE-M6X20 Z&Y Price: $2.53
32	4604-513	Brace, Rail Price: $96.95
33	4604-253	Axle Price: $24.20
34	8408-841	Screw, Cap Price: $1.92
35	1623-683	Screw, Self-Tapping Price: $1.32
36	4604-642	Pad, Shock Limiter Price: $5.59
37	8408-835	Screw, Cap Price: $2.30
38	8413-031	Screw, Cap Price: $2.91
39	3604-979	Axle Price: $3.75
40	1623-010	Fitting, Grease Price: $2.05
41	3604-965	Axle Price: $27.95
43	3604-668	Axle Price: $96.95
44	2604-545	Block, Coupler Price: $15.71
46	2602-383	Clip, Guide Price: $4.48
