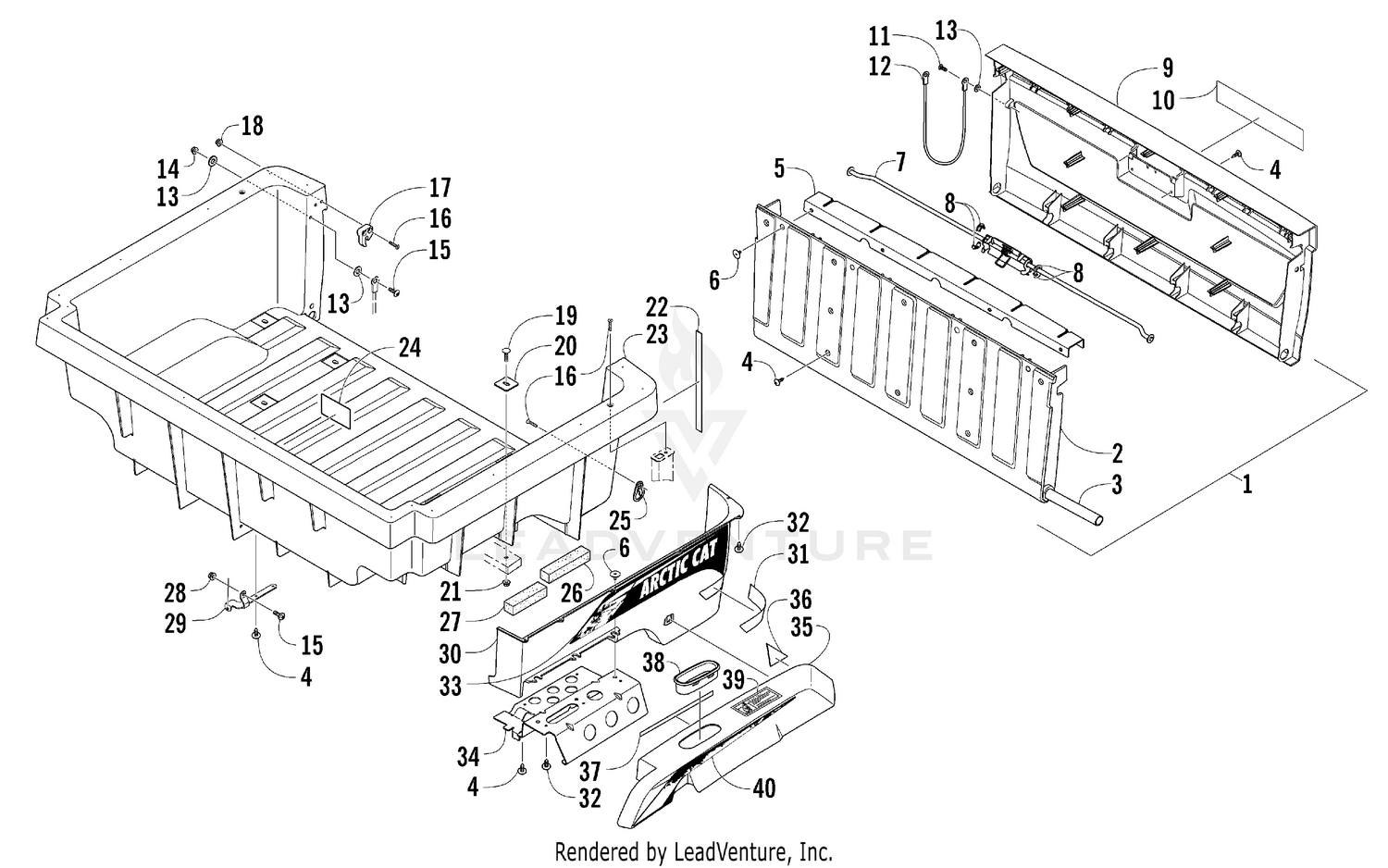

CARGO BOX AND TAILGATE ASSEMBLY [99889]

Parts (43)

Ref	Part Number	Description
2	2406-365	Panel, Tailgate - Inner Price: $158.95
3	1406-927	Shaft, Pivot - Tailgate Price: $30.95
4	0623-784	Screw, Self-Tapping Price: $0.09
5	1506-704	Brace, Tailgate Price: $68.95
6	0423-101	Screw, Shoulder Price: $2.30
7	2506-056	Latch, Tailgate - Assembly Price: $127.95
8	1406-706	Bushing Price: $2.17
9	2406-369	Panel, Tailgate - Outer - Black Price: $188.95
10	2411-442	Decal, Box - “Arctic Cat” Price: $20.38
11	8476-625	Screw, Machine Price: $1.92
12	0487-045	Cable, Tailgate Price: $18.52
13	8050-217	Washer, Flat Price: $0.24
14	0624-250	NUT,LOCK-NSL M6-1.0 SS Price: $0.71
15	8476-620	Screw, Machine Price: $0.48
16	8474-630	SCREW,MACH-TSFH M6X1.0X30 CL8.8 BLK Price: $1.32
17	2506-664	Striker, Tailgate - Right Price: $20.38
17	2506-665	Striker, Tailgate - Left Price: $18.52
18	8424-602	NUT,HEX-FLG M6X1.0 CL8 Z&Y Price: $0.35
19	0423-623	BOLT,CRG-M8-1.25X30-BLK Price: $1.80
20	1506-933	PLATE,RETAINING-BLACK (MATTE) Price: $14.08
21	8424-802	NUT,HEX-FLG M8X1.25 CL8 Z&Y Price: $0.59
22	0417-006	Strip, Foam Price: $2.34
23	2406-916	BOX,REAR CARGO Price: $824.95
24	1411-119	Decal, Warning - Cargo Box Price: $16.80
25	1506-539	BRACKET,TAILGATE-BLACK Price: $21.39
26	0417-010	Foam, Cargo Box Price: $7.85
27	0417-011	Foam, Cargo Box Price: $6.60
28	8427-602	Nut, Hex Price: $0.23
29	2516-178	Bracket, Box Latch Spring Price: $23.53
30	1406-761	Panel, Box - Left - Black Price: $68.95
30	1406-762	Panel, Box - Right - Black Price: $58.95
31	1411-128	Decal, Reflector - Red Price: $14.25
31	1411-129	Decal, Reflector - Left - Red Price: $14.25
32	0423-342	SCREW,SELF TAPPING-.1875 X .75 Price: $0.35
33	3411-430	Decal, Box - Right Price: $40.95
33	3411-431	Decal, Box - Left Price: $2.21
34	1506-776	Bracket, Fender Support - Right Price: $106.16
34	2506-927	BRACKET,FENDER SUPPORT-LH-BLACK Price: $100.20
36	0417-008	Pad, Foam Price: $1.41
37	0417-007	Strip, Foam Price: $10.94
38	2516-037	RING,TRIM-FENDER Price: $6.74
39	1411-120	Decal, Warning - Pinch Point Price: $4.07
40	3411-428	Decal, Rear Fender - Right Price: $20.38
