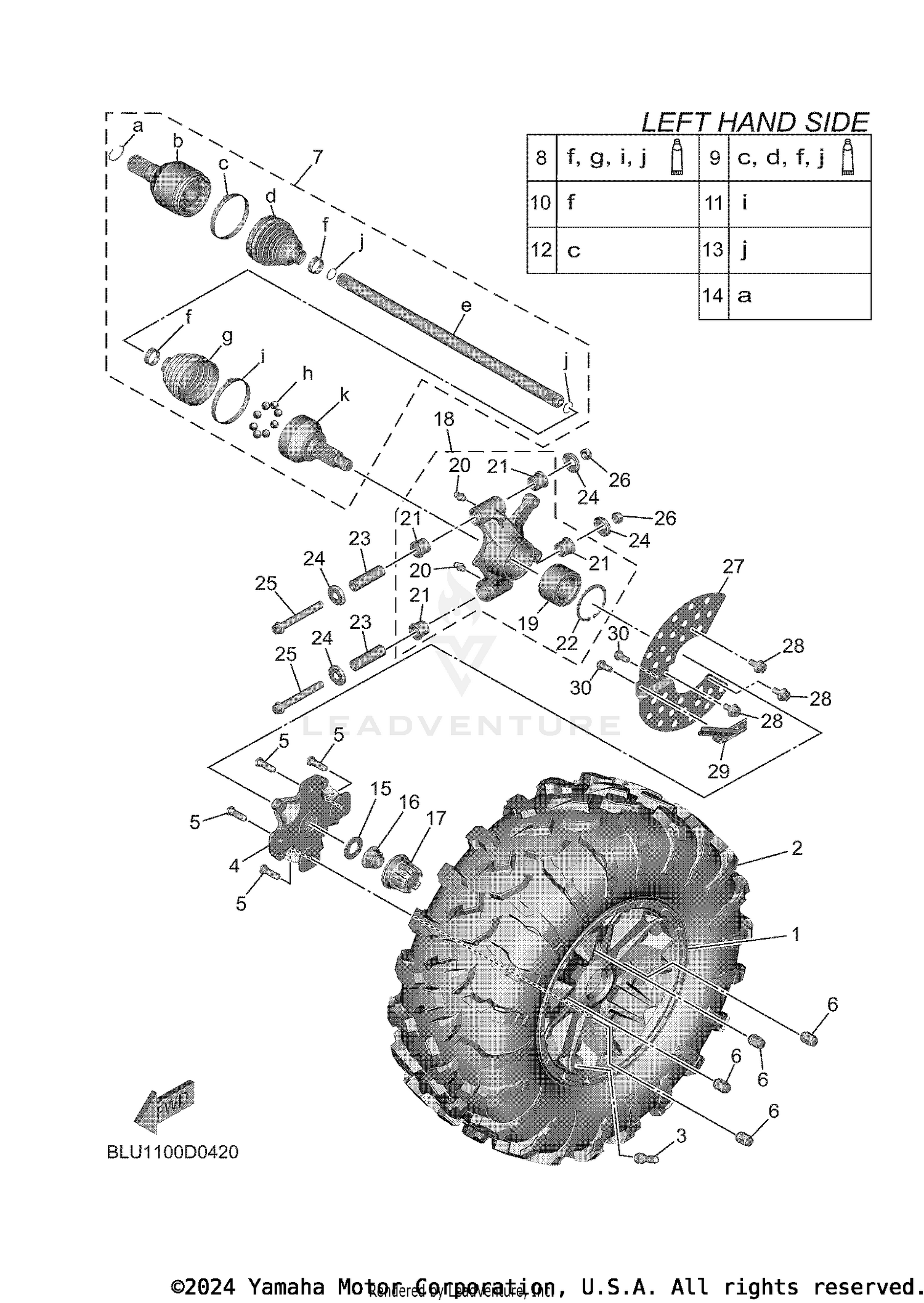

| Ref | Part Number | Description |
|---|
| 1 |
B4J-F5307-20-00 |
CAST WHEEL, REAR Price: $284.99 |
| 4 |
B4J-F5111-02-00 |
HUB, FRONT Price: $94.99 |
| 5 |
90114-12005-00 |
BOLT, SERRATION Price: $3.20 |
| 6 |
90176-12801-00 |
NUT, CROWN Price: $3.55 |
| 7 |
BKP-F53B0-00-00 |
SHAFT, REAR DRIVE Price: $367.99 |
| 8 |
B4J-F530X-00-00 |
BOOT SET (BALL JOI Price: $96.99 |
| 10 |
B4J-F5719-00-00 |
BAND Price: $11.49 |
| 11 |
B4J-F639A-00-00 |
BAND Price: $6.49 |
| 12 |
B4J-F6293-00-00 |
BAND Price: $6.49 |
| 15 |
90201-25023-00 |
WASHER, PLATE Price: $11.49 |
| 16 |
90179-24006-00 |
NUT Price: $15.49 |
| 17 |
2HC-F512A-00-00 |
CAP, WHEEL Price: $3.25 |
| 18 |
BKP-F530F-02-00 |
REAR KNUCKLE ASSY Price: $156.99 |
| 19 |
93305-00801-00 |
BEARING Price: $125.99 |
| 20 |
93700-06M03-00 |
NIPPLE, GREASE This part replaces 93700-06004-00. Price: $8.25 |
| 21 |
90381-22001-00 |
BUSH, SOLID Price: $15.99 |
| 22 |
93420-72065-00 |
CIRCLIP (70R) This part replaces 99009-72500-00. Price: $8.99 |
| 23 |
90387-14025-00 |
COLLAR Price: $20.99 |
| 24 |
BYP-23517-00-00 |
COVER, THRUST 1 Price: $18.49 |
| 25 |
90105-14018-00 |
BOLT, FLANGE Price: $16.99 |
| 26 |
90185-14010-00 |
NUT, SELF-LOCKING Price: $16.49 |
| 27 |
2HC-F534C-00-00 |
RING, WHEEL RR. 1 Price: $11.49 |
| 28 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95812-06012-00. Price: $1.95 |
| 29 |
2HC-F2341-00-00 |
PLATE, GUIDE 1 Price: $10.49 |
