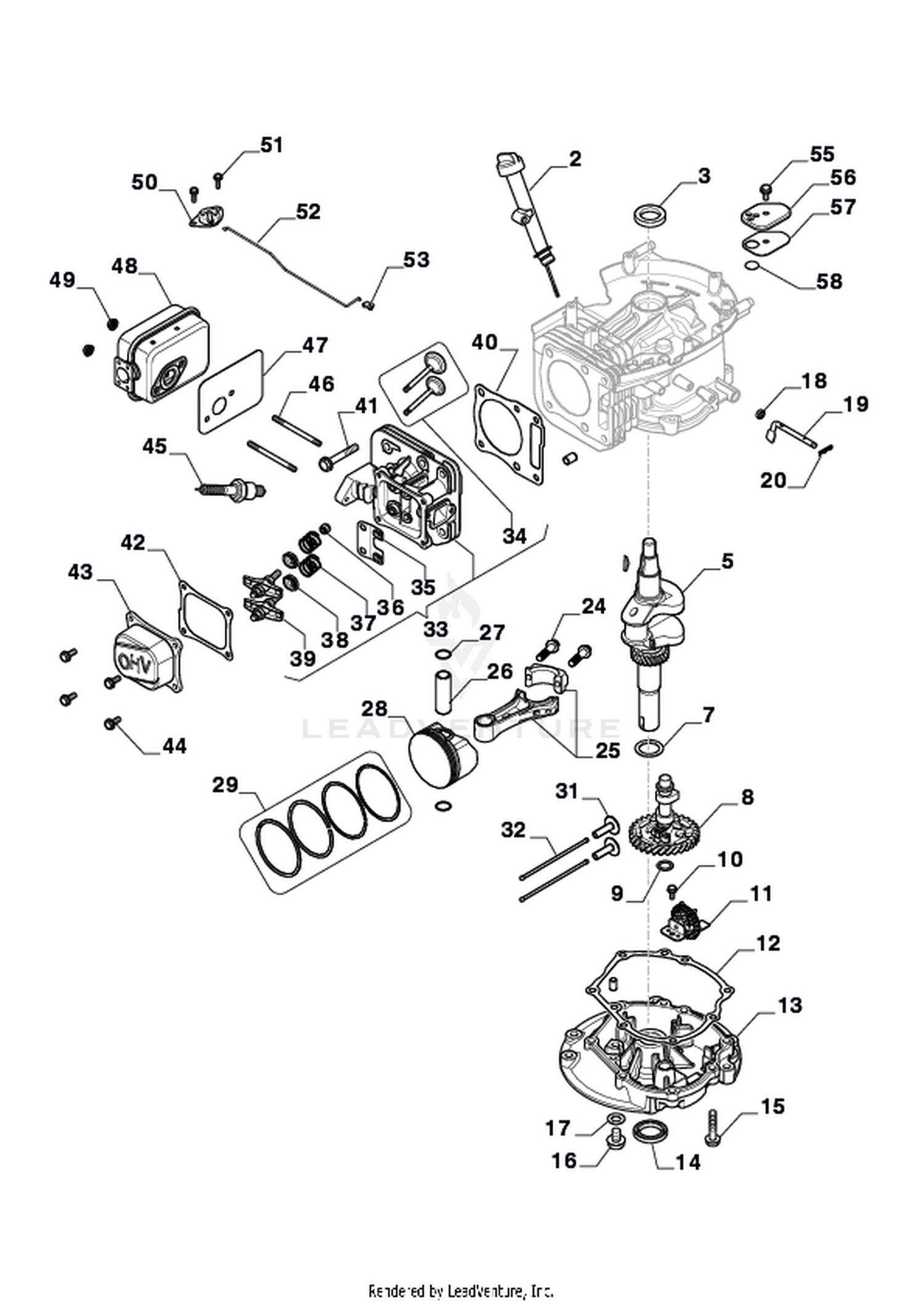

Engine - Piston, Crankshaft
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 118551431/0 | Oil Filler Assy Price: Call Us |
| 3 | 118550300/0 | Oil Seal Price: Call Us |
| 5 | 118551115/0 | Crankshaft Price: Call Us |
| 7 | 118550283/0 | Washer Price: Call Us |
| 8 | 118551433/0 | Camshaft Assy Price: Call Us |
| 9 | 118551144/0 | Washer , Drain Plug Price: Call Us |
| 10 | 112789000/0 | Screw Price: Call Us |
| 11 | 118551132/0 | Speed Governor Assy Price: Call Us |
| 12 | 118551107/0 | Crankcase Gasket Price: Call Us |
| 13 | 118551153/1 | Crankcase Cover Price: Call Us |
| 14 | 118550379/0 | Oil Seal Price: Call Us |
| 15 | 9959-0840-16 | Screw Price: Call Us |
| 16 | 118550780/1 | Drain plug bolt Price: Call Us |
| 17 | 118550793/0 | Washer , Drain Plug Price: Call Us |
| 18 | 118550935/0 | Oil Seal Price: Call Us |
| 19 | 118551130/0 | Shaft, Governor Arm Price: Call Us |
| 20 | 118550856/0 | Cotter Pin This part replaces 118550934/0. Price: Call Us |
| 24 | 118552497/0 | Bolt Price: Call Us |
| 25 | 118552496/0 | Connecting Rod Assy Price: Call Us |
| 26 | 118550786/0 | Piston Pin Price: Call Us |
| 27 | 118551201/0 | Washer, Piston Pin This part replaces 118551145/0. Price: Call Us |
| 28 | 118551113/0 | Piston Price: Call Us |
| 29 | 118551114/0 | Piston, Ring Set Price: Call Us |
| 31 | 118550291/0 | Valve Lifter Assy Price: Call Us |
| 32 | 118551118/0 | Push Rod Price: Call Us |
| 33 | 118551151/0 | Cylinder Head Assy Price: Call Us |
| 34 | 118551150/0 | Valve Assy, Intake + Exhaust Price: Call Us |
| 35 | 118551119/0 | Plate Price: Call Us |
| 36 | 118551117/0 | Seal Price: Call Us |
| 37 | 118550896/0 | Spring Price: Call Us |
| 38 | 118550895/0 | Retainer Price: Call Us |
| 39 | 118550273/0 | Valve Arm Set Price: Call Us |
| 40 | 118552559/0 | Cylinder Head Gasket This part replaces 118551110/0. Price: Call Us |
| 41 | 118550297/0 | Screw Price: Call Us |
| 42 | 118551112/0 | Gasket Price: Call Us |
| 43 | 118551111/0 | Cover Price: Call Us |
| 44 | 9959-0616-16 | Screw Price: Call Us |
| 45 | 118550658/0 | Spark Plug Price: Call Us |
| 46 | 118551495/0 | Stud Price: Call Us |
| 47 | 118551135/0 | Gasket, Muffler Price: Call Us |
| 48 | 118551497/0 | Muffler Price: Call Us |
| 49 | 118550806/0 | Nut Price: Call Us |
| 50 | 118551350/0 | Choke Control Price: Call Us |
| 51 | 112789000/0 | Screw Price: Call Us |
| 52 | 118551351/0 | Control Rod Price: Call Us |
| 53 | 118551352/0 | Retainer Price: Call Us |
| 55 | 112790781/0 | Screw Price: Call Us |
| 56 | 118551108/0 | Cover Price: Call Us |
| 57 | 118551109/0 | Gasket Price: Call Us |
