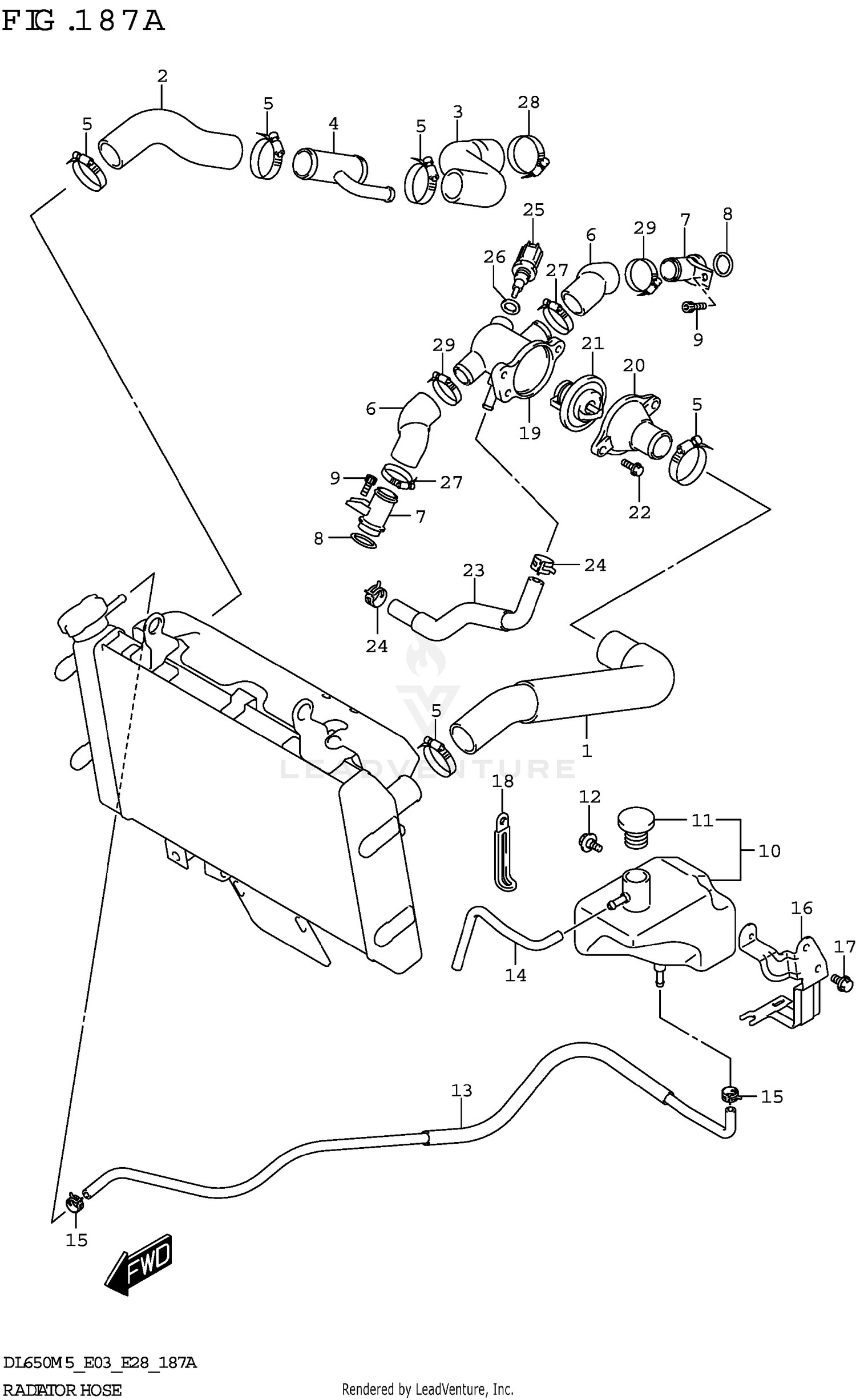

| Ref | Part Number | Description |
|---|
| 1 |
17851-11J00 |
HOSE, RADIATOR INLET Price: $66.29 |
| 2 |
17852-44H20 |
HOSE, RADIATOR OUTLET NO.1 Price: $21.14 |
| 3 |
17854-44H00 |
HOSE, RADIATOR OUTLET NO.2 Price: $27.73 |
| 4 |
17880-44H00 |
UNION, WATER HOSE THREE WAY Price: $44.02 |
| 5 |
09401-29001 |
CLAMP Price: $3.56 |
| 6 |
17853-19F00 |
HOSE,CONNECTOR INLET Price: $18.22 |
| 7 |
17890-06G20 |
UNION,CONNECTOR HOSE Price: $18.34 |
| 8 |
09280-18009 |
O RING (D:3.2,ID:17.8) This part replaces 09280-18008. Price: $7.10 |
| 9 |
07130-0612A |
BOLT Price: $3.02 |
| 10 |
17910-27G10 |
TANK ASSY, RESERVOIR Price: $60.98 |
| 12 |
09111-06085 |
BOLT (6X12) Price: $5.61 |
| 13 |
17900-27810 |
HOSE SET, RESERVOIR TANK INLE Price: $23.78 |
| 14 |
17982-15H00 |
HOSE, RESERVOIR TANK OVFL Price: $13.56 |
| 15 |
09401-08411 |
CLIP (ID:8.6) Price: $2.15 |
| 16 |
17920-27G10 |
BRACKET, RESERVOIR TANK Price: $11.80 |
| 17 |
01550-0610A |
BOLT Price: $2.37 |
| 18 |
09404-06429 |
CLAMP (L:45) Price: $2.20 |
| 19 |
17662-02F11 |
CONNECTOR,THERMOSTAT INLET Price: $69.45 |
| 20 |
17663-17G00 |
CAP,THERMOSTAT CONNECTOR Price: $31.69 |
| 21 |
17670-06G61 |
THERMOSTAT, WATER Price: $31.83 |
| 22 |
01547-0616A |
BOLT Price: $2.45 |
| 23 |
17856-44H00 |
HOSE,CONNECTOR TO WTR PMP Price: $22.31 |
| 24 |
09401-12414 |
CLIP Price: $4.02 |
| 25 |
13650-49X00 |
SENSOR,TEMP Price: $111.41 |
| 26 |
09168-12017 |
GASKET (12X17X1) Price: $2.37 |
| 27 |
09401-24002 |
CLAMP Price: $4.41 |
| 28 |
09401-30003 |
CLIP Price: $4.99 |
