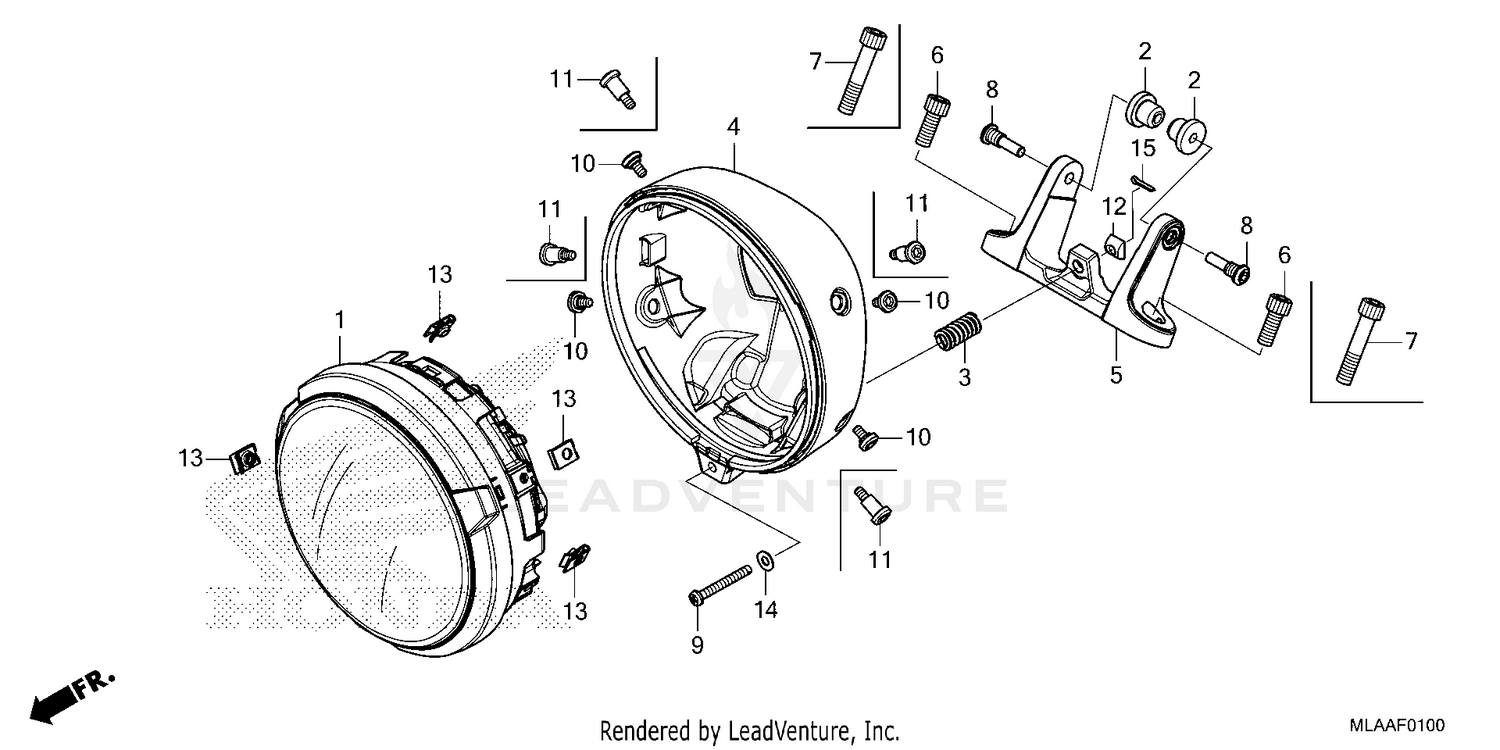

| Ref | Part Number | Description |
|---|
| 1 |
33100-MLA-A01 |
HEADLIGHT ASSY. Price: $715.91 |
| 2 |
61304-K87-A30 |
RUBBER, HEADLIGHT MOUNTING Price: $2.95 |
| 3 |
61305-K87-C80 |
SPRING, HEADLIGHT AIMING Price: $2.73 |
| 4 |
61310-K87-A31 |
CASE, HEADLIGHT Price: $27.33 |
| 5 |
64221-K87-A30 |
HOLDER, HEADLIGHT Price: $60.96 |
| 7 |
90114-GHB-700 |
BOLT, SOCKET (8X35) Price: $4.20 |
| 8 |
90136-K87-A30 |
BOLT, HEADLIGHT MOUNTING Price: $1.36 |
| 9 |
90137-K87-A30 |
BOLT, HEADLIGHT AIMING Price: $1.36 |
| 11 |
90139-K87-A30 |
BOLT, SPECIAL (5X19) Price: $1.20 |
| 12 |
90310-K87-A30 |
NUT, HEADLIGHT AIMING Price: $2.89 |
| 13 |
90677-KAN-961 |
NUT, CLIP (5MM) Price: $5.11 |
| 14 |
94101-05700 |
WASHER, PLAIN (5MM) Price: $1.03 |
| 15 |
94201-10150 |
PIN, SPLIT (1.0MM) This part replaces 94201-10100. Price: $1.08 |
