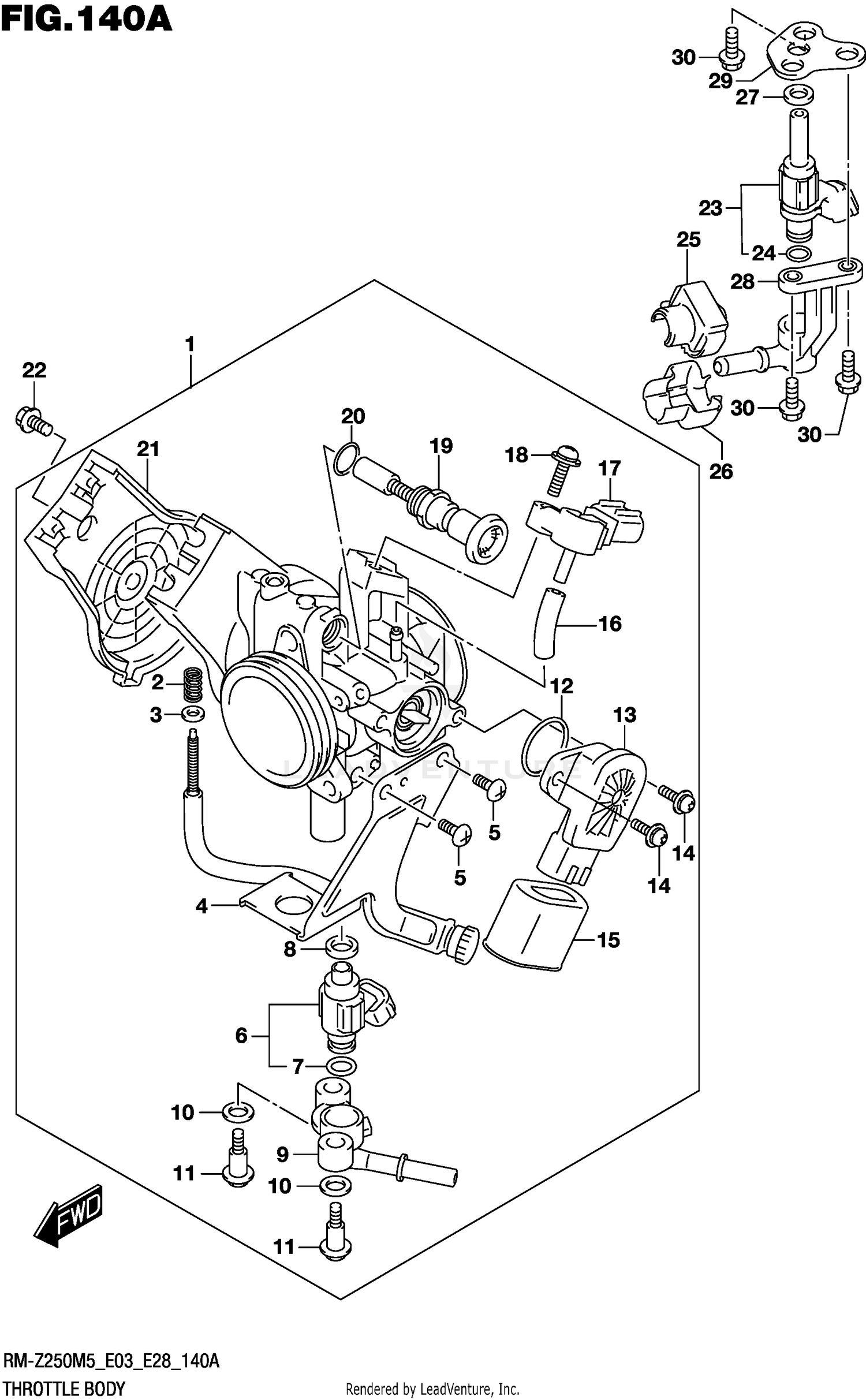

THROTTLE BODY
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13041-46K01 | BODY ASSY,THROTTLE Price: $603.08 |
| 7 | 15717-58B00 | O-RING Price: $12.30 |
| 8 | 15722-14J00 | SEAL Price: $14.43 |
| 10 | 13602-29G01 | PACKING Price: $2.94 |
| 11 | 13601-11J00 | SCREW Price: $6.09 |
| 16 | 13683-10F61 | HOSE (L:425) Price: $18.47 |
| 17 | 18590-18K00 | SENSOR,BOOST Price: $337.14 |
| 18 | 13437-14J00 | SCREW Price: $4.16 |
| 22 | 13601-37K00 | SCREW,THROTTLE COVER Price: $3.15 |
| 23 | 15710-46K10 | INJECTOR ASSY,FUEL Price: $257.94 |
| 24 | 15717-58B00 | O-RING Price: $12.30 |
| 25 | 15719-46K00 | COVER,2ND INJECTOR NO.1 Price: $11.63 |
| 26 | 15719-46K10 | COVER,2ND INJECTOR NO.2 Price: $10.85 |
| 27 | 15722-14J00 | SEAL Price: $14.43 |
| 28 | 15910-46K00 | PIPE,2ND INJECTOR Price: $85.23 |
| 29 | 15921-46K00 | BRACKET,2ND INJECTOR Price: $43.89 |
