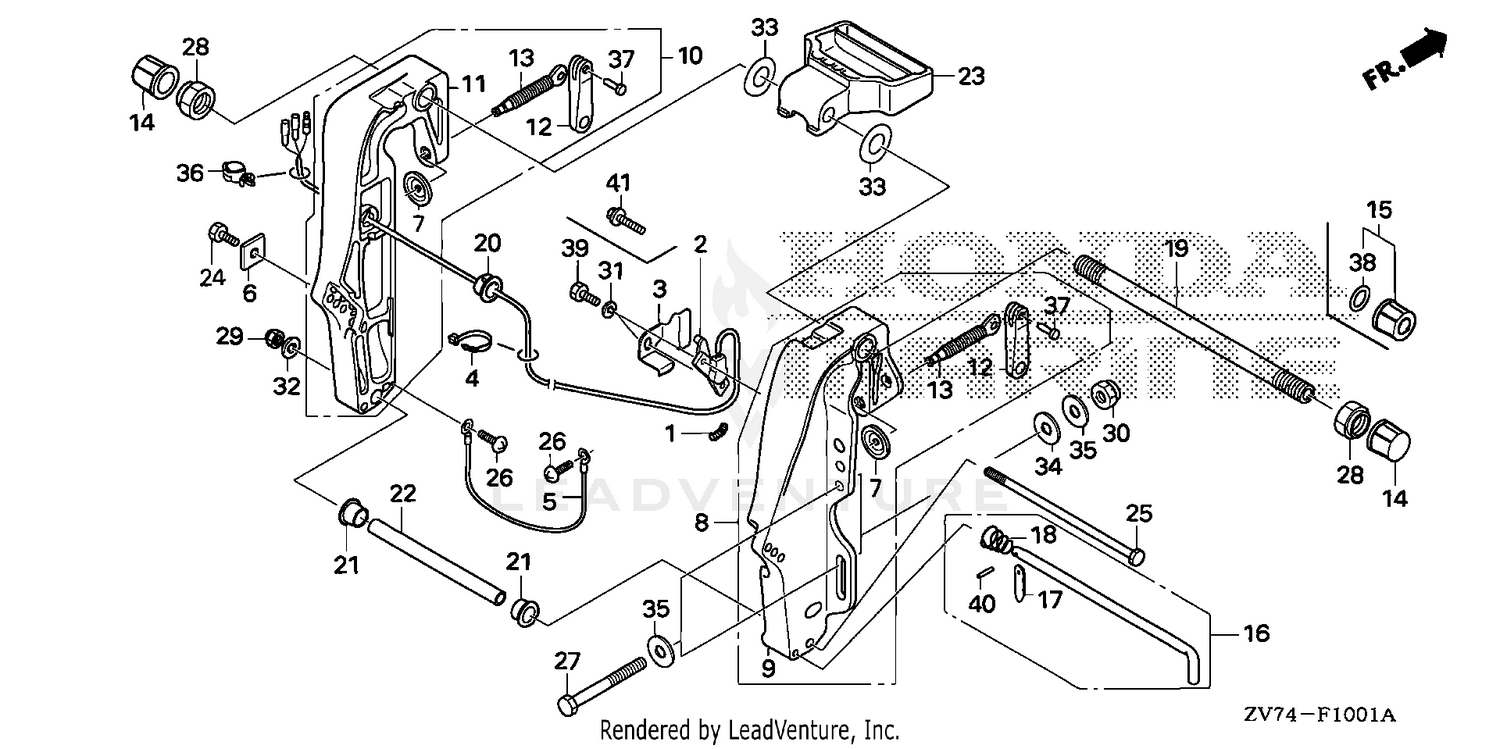

| Ref | Part Number | Description |
|---|
| 1 |
17735-ZW2-F10 |
TUBE, CORRUGATE (7MM) Price: $2.48 |
| 1 |
42704MB0000 |
WEIGHT, BALANCE (10G) Price: Call Us |
| 1 |
42705MB0000 |
WEIGHT, BALANCE (20G) Price: Call Us |
| 1 |
42706MB0000 |
WEIGHT, BALANCE (30G) Price: Call Us |
| 2 |
35660-ZW2-F11 |
SENSOR ASSY., TRIM ANGLE Price: $211.74 |
| 2 |
42753KBS901 |
VALVE, RIM (WONDER) Price: Call Us |
| 3 |
35661-ZW2-F10 |
BRACKET, TRIM ANGLE SENSOR Price: $8.04 |
| 3 |
44301MM5000 |
AXLE, FR. WHEEL Price: Call Us |
| 4 |
35701-MG9-950 |
BAND (BLACK 3.5X140) Price: $2.50 |
| 4 |
44312MBL610 |
COLLAR, FR. WHEEL SIDE Price: Call Us |
| 5 |
40219-ZY1-023 |
WIRE, LEAD (1.5X170MM) This part replaces 40219-ZY1-013. Price: $13.16 |
| 5 |
44620MBL610 |
COLLAR, FR. AXLE DISTANCE Price: Call Us |
| 6 |
41106-ZW9-000 |
METAL, ANODE Price: $11.94 |
| 6 |
44650MBLD01 |
WHEEL SUB ASSY., FR. Price: Call Us |
| 7 |
44680ML7000 |
RETAINER, GEAR BOX Price: Call Us |
| 8 |
44711MBL613 |
TIRE, FR. (DUNLOP) (120/70ZR17 58W) Price: Call Us |
| 8 |
44711MBL614 |
TIRE, FR. (MICHELIN) (120/70ZR17 58W) Price: Call Us |
| 9 |
44800MBL611 |
BOX ASSY., SPEEDOMETER GEAR Price: Call Us |
| 9 |
50301-ZW2-F10ZA |
BRKT, R. *NH282MU* Price: $364.40 |
| 10 |
44806MBL611 |
GEAR, SPEEDOMETER Price: Call Us |
| 11 |
50311-ZW2-F10 |
BRACKET, L. STERN Price: $372.02 |
| 12 |
45251MBLD61 |
DISK, R. FR. BRAKE Price: Call Us |
| 13 |
45351MBLD61 |
DISK, L. FR. BRAKE Price: Call Us |
| 14 |
50331-ZV5-000 |
CAP, TILTING BOLT Price: $8.06 |
| 14 |
90105MBB000 |
BOLT, BRAKE DISK, 8X24 Price: Call Us |
| 15 |
50335-ZV5-000 |
CAP ASSY. Price: $11.96 |
| 15 |
90305ML7000 |
BOLT, FR. AXLE Price: Call Us |
| 16 |
50340-ZY1-871 |
SEE PART DETAILS - PRI; ROD, ADJUSTING Price: $34.96 |
| 16 |
91052MAE004 |
BEARING, RADIAL BALL, 6204UU Price: Call Us |
| 17 |
50342-ZV5-300 |
STOPPER, ROD Price: $7.08 |
| 17 |
91253MAE003 |
DUST SEAL, 30X47X7.5 Price: Call Us |
| 18 |
50343-921-300 |
SPRING, ADJUSTING ROD Price: $4.40 |
| 19 |
50381-ZZ5-000 |
SEE PART DETAILS - PRI; SHAFT, TILTING Price: $105.28 |
| 20 |
56118-ZV5-820 |
BUSH, MOTOR CODE Price: $11.72 |
| 21 |
56513-ZV5-000 |
BUSH, CYLINDER (LOWER) Price: $5.16 |
| 22 |
56539-ZY1-870 |
COLLAR, CYLINDER (LOWER) Price: $83.82 |
| 24 |
90102-ZW9-000 |
BOLT, FLANGE (6X12) Use from Frame SN 1005249. Price: $2.90 |
| 25 |
90108-ZY1-870 |
BOLT, HEX. (8X203) Price: $12.58 |
| 26 |
90119-ZV5-000 |
SCREW, PAN (6X8) Price: $2.26 |
| 27 |
90129-ZV7-000 |
BOLT, HEX. (10X100) Price: $25.10 |
| 28 |
90304-ZV5-013 |
SEE PART DETAILS - PRI; NUT, SELF-LOCK (7/8-14UNF) Price: $24.24 |
| 29 |
90305-ZV4-000 |
NUT, SELF-LOCK (8MM) Price: $6.22 |
| 30 |
90306-ZV5-003 |
NUT, SELF-LOCK (10MM) Price: $4.66 |
| 32 |
90507-ZV4-000 |
WASHER, PLAIN (8MM) Use up to Frame SN 4800712. Price: $3.02 |
| 33 |
90517-ZV5-000 |
WASHER, WAVE (22MM) Price: $7.54 |
| 34 |
90552-ZV7-000 |
WASHER, PLAIN (10MM) Price: $11.08 |
| 35 |
90563-ZV5-000 |
WASHER, PLAIN (10MM) Price: $3.34 |
| 36 |
90681-763-A01 |
CLIP, WIRE HARNESS Price: $11.04 |
| 38 |
91352-ZV5-000 |
O-RING (15.54X2.26) Price: $2.38 |
| 40 |
94305-25083 |
PIN, SPRING (2.5X8) Price: $1.62 |
