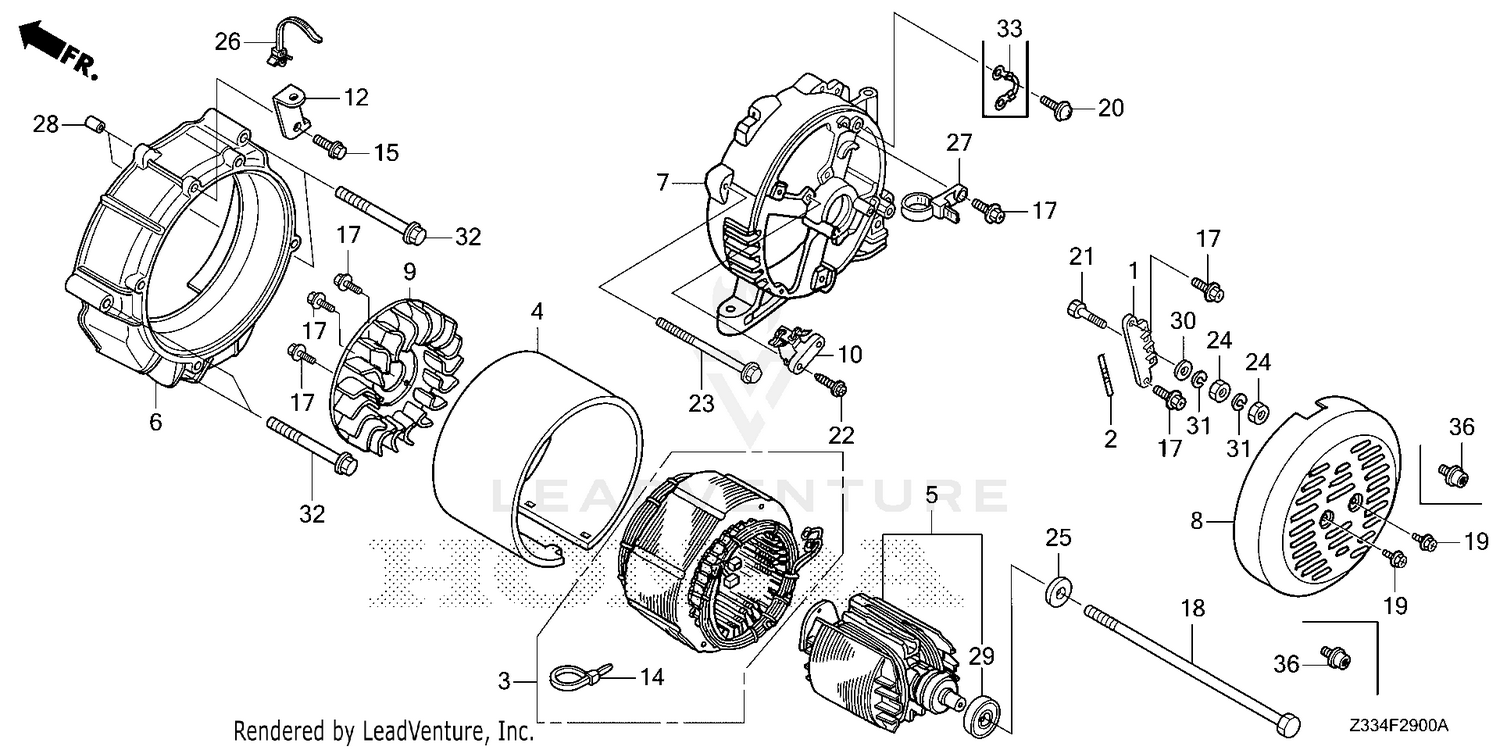

| Ref | Part Number | Description |
|---|
| 1 |
31118-Z22-000 |
TERMINAL, VOLT CHANGE Price: $25.76 |
| 2 |
31119-Z18-D20 |
MARK, VOLT Price: $3.16 |
| 3 |
31120-Z33-S30 |
STATOR ASSY. Price: $1,161.44 |
| 4 |
31127-Z33-000ZA |
COVER, STATOR *NH105* (MAT BLACK) Price: $35.12 |
| 5 |
31130-Z33-000 |
ROTOR Price: $453.61 |
| 6 |
31161-Z30-000 |
HOUSING, FR. Price: $125.64 |
| 7 |
31171-Z22-000 |
HOUSING, RR. Price: $203.98 |
| 8 |
31186-Z22-C30ZA |
COVER, GENERATOR END *NH105* (MAT BLACK) Price: $63.52 |
| 9 |
31190-Z30-000 |
FAN, GENERATOR COOLING Price: $25.26 |
| 10 |
31295-Z30-000 |
BRUSH ASSY. Price: $23.20 |
| 12 |
32103-Z30-000 |
BRACKET, WIRE HARNESS CLIP Price: $7.86 |
| 14 |
32903-ZC8-N01 |
TIE, CABLE (C) Price: $1.80 |
| 15 |
90013-883-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845). Price: $1.94 |
| 17 |
90032-875-000 |
SCREW, TAPPING (5X14) Price: $3.62 |
| 18 |
90101-Z33-000 |
BOLT, HEX. (10X203) Price: $11.10 |
| 20 |
90102-Z21-000 |
SCREW, PAN (5X12) Price: $1.88 |
| 21 |
90102-Z22-000 |
BOLT, HEX. (5X20) Price: $2.02 |
| 22 |
90131-Z30-000 |
SCREW, TAPPING (5X18) Price: $3.62 |
| 23 |
90157-Z33-000 |
BOLT, FLANGE (6X113) Price: $5.38 |
| 24 |
90301-Z22-000 |
NUT, HEX. (5MM) Price: $1.28 |
| 25 |
90504-ZA0-000 |
WASHER (10.5MM) Price: $5.70 |
| 26 |
90672-Z22-003 |
CABLE, STRAP Price: $3.66 |
| 27 |
90673-Z22-000 |
TIE, CABLE Price: $4.68 |
| 28 |
90701-Z7E-000 |
PIN, DOWEL (8X12) Price: $2.46 |
| 29 |
91051-ZB4-003 |
BEARING ASSY. (6204) Price: $32.94 |
| 30 |
94101-05800 |
WASHER, PLAIN (5MM) (Honda Code 0285791). Price: $1.24 |
| 31 |
94111-05800 |
SEE PART DETAILS - PRI; WASHER, SPRING (5MM) (Honda Code 0251215). Price: $1.42 |
| 32 |
95701-08060-00 |
BOLT, FLANGE (8X60) Price: $1.90 |
