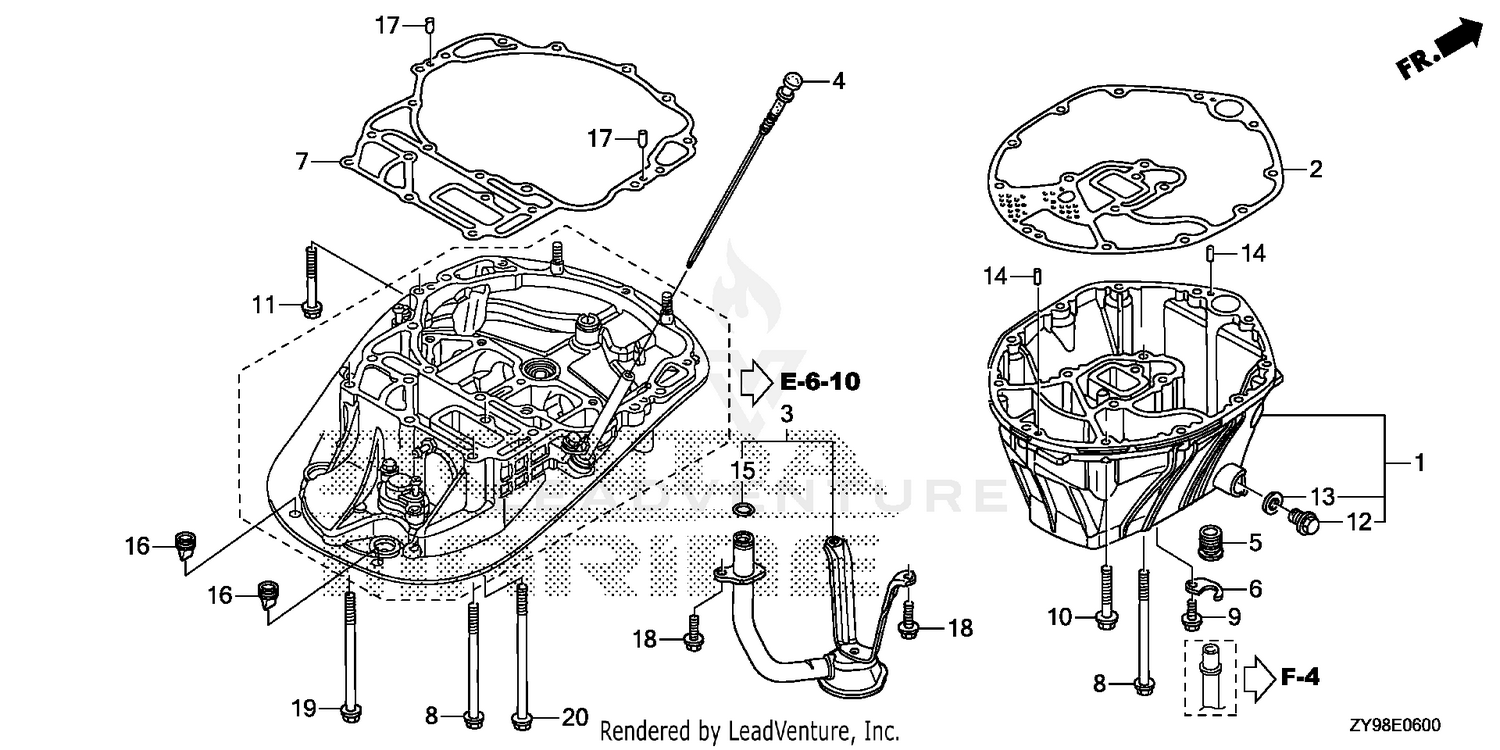

| Ref | Part Number | Description |
|---|
| 1 |
11320-ZY9-020ZA |
CASE ASSY., OIL *TGRAY* (GRAY) (NOT AVAILABLE) This part replaces 11320-ZY9-010ZA. Price: $430.32 |
| 2 |
11381-ZY9-003 |
GASKET, OIL PAN Price: $92.32 |
| 3 |
15220-ZY9-000 |
STRAINER, OIL Price: $124.12 |
| 4 |
15655-ZY9-M00 |
DIPSTICK, OIL Price: $19.98 |
| 5 |
19252-ZW1-000 |
GROMMET, WATER TUBE Price: $10.18 |
| 6 |
19254-ZY9-000 |
PLATE, WATER TUBE Price: $4.98 |
| 7 |
23172-ZY9-003 |
GASKET, MOUNT CASE Price: $144.00 |
| 8 |
90046-ZY3-000 |
BOLT, FLANGE (8X100) Price: $10.26 |
| 9 |
90102-ZW9-000 |
BOLT, FLANGE (6X12) Use from Frame SN 1005249. Price: $2.90 |
| 10 |
90114-HW1-671 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) Price: $5.30 |
| 11 |
90120-HW1-671 |
BOLT, FLANGE (8X45) Price: $7.14 |
| 12 |
90131-ZV5-000 |
BOLT, DRAIN PLUG Price: $10.18 |
| 13 |
90601-ZE2-000 |
WASHER, DRAIN PLUG (12MM) (Honda Code 2028793). Price: $3.26 |
| 14 |
90756-ZV5-000 |
PIN, DOWEL (6X10) Price: $3.62 |
| 15 |
91310-PC6-004 |
O-RING (15.5X2.7) Price: $3.88 |
| 16 |
91601-ZZ0-M00 |
GROMMET (1WAY) Price: $7.14 |
| 17 |
94301-06100 |
SEE PART DETAILS - PRI; PIN A, DOWEL (6X10) (Honda Code 0294256). Price: $2.82 |
| 18 |
96300-06016-09 |
BOLT, FLANGE (6X16) Price: $1.28 |
| 19 |
96300-08100-09 |
BOLT, FLANGE (8X100) Price: $2.74 |
