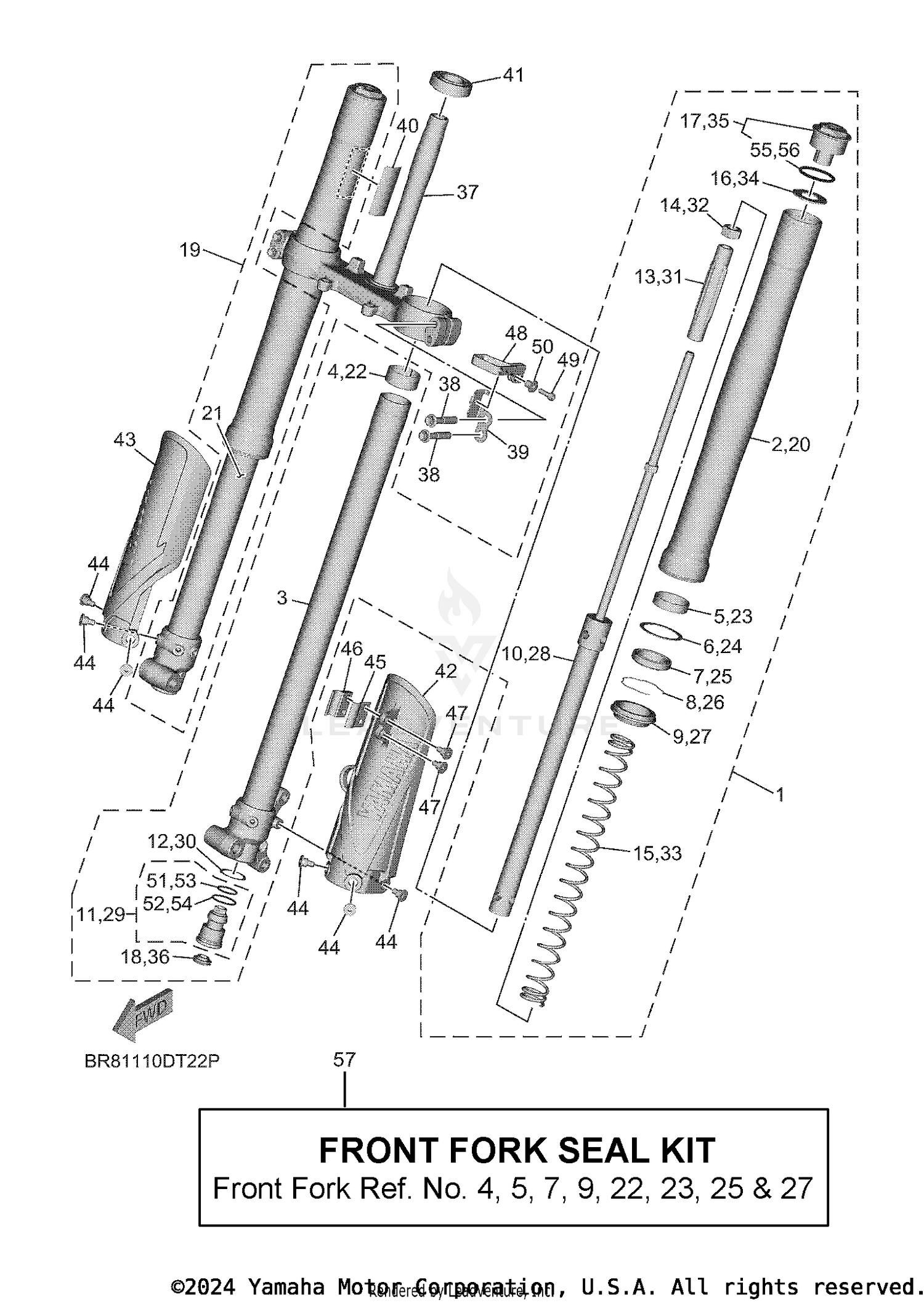

| Ref | Part Number | Description |
|---|
| 1 |
BR8-23102-00-00 |
FRONT FORK ASSY (L.H) Price: $599.99 |
| 2 |
BR8-23136-00-00 |
TUBE, OUTER 2 Price: $419.99 |
| 3 |
BR8-23120-00-00 |
INNER TUBE COMP. 2 Price: $209.99 |
| 6 |
5K5-23149-00-00 |
WASHER, SPRING UPPER Price: $8.49 |
| 8 |
4A1-23156-00-00 |
CLIP, OIL SEAL Price: $5.99 |
| 10 |
BR8-23170-00-00 |
CYLINDER COMP., FRONT FORK Price: $363.99 |
| 11 |
BR8-2316A-00-00 |
VALVE COMP. Price: $176.99 |
| 12 |
2HH-23158-L0-00 |
GASKET Price: $11.99 |
| 13 |
BR8-23142-00-00 |
SEAT, SPRING UPPER Price: $24.99 |
| 14 |
3XJ-23357-L0-00 |
NUT Price: $1.30 |
| 15 |
BR8-23141-20-00 |
SPRING (K=2.8N/MM) This part replaces BR8-23141-00-00. Price: $51.99 |
| 16 |
5PA-23149-00-00 |
WASHER, SPRING UPPER Price: $5.99 |
| 17 |
BR8-23111-00-00 |
BOLT, CAP Price: $156.99 |
| 18 |
3JD-2312G-L0-00 |
PLUG, HOLE Price: $7.49 |
| 19 |
BR8-23103-00-00 |
FRONT FORK ASSY (R.H) Price: $599.99 |
| 20 |
BR8-23136-00-00 |
TUBE, OUTER 2 Price: $419.99 |
| 21 |
BR8-23110-00-00 |
INNER TUBE COMP. 1 Price: $209.99 |
| 24 |
5K5-23149-00-00 |
WASHER, SPRING UPPER Price: $8.49 |
| 26 |
4A1-23156-00-00 |
CLIP, OIL SEAL Price: $5.99 |
| 28 |
BR8-23170-00-00 |
CYLINDER COMP., FRONT FORK Price: $363.99 |
| 29 |
BR8-2316A-00-00 |
VALVE COMP. Price: $176.99 |
| 30 |
2HH-23158-L0-00 |
GASKET Price: $11.99 |
| 31 |
BR8-23142-00-00 |
SEAT, SPRING UPPER Price: $24.99 |
| 32 |
3XJ-23357-L0-00 |
NUT Price: $1.30 |
| 33 |
BR8-23141-20-00 |
SPRING (K=2.8N/MM) This part replaces BR8-23141-00-00. Price: $51.99 |
| 34 |
5PA-23149-00-00 |
WASHER, SPRING UPPER Price: $5.99 |
| 35 |
BR8-23111-00-00 |
BOLT, CAP Price: $156.99 |
| 36 |
3JD-2312G-L0-00 |
PLUG, HOLE Price: $7.49 |
| 37 |
BR8-23340-00-00 |
UNDER BRACKET COMP. Price: $645.99 |
| 38 |
5PA-23346-00-00 |
BOLT 1 Price: $5.99 |
| 39 |
BR8-2331E-00-00 |
GUIDE, CABLE Price: $27.99 |
| 40 |
BR8-21268-00-00 |
SEAL Price: $4.00 |
| 41 |
93332-00079-00 |
BEARING Price: $75.99 |
| 42 |
BR8-2314H-00-00 |
PROTECTER COMP., 1 Price: $27.99 |
| 43 |
BR8-2314J-00-00 |
PROTECTER COMP., 2 Price: $29.99 |
| 44 |
90109-06232-00 |
BOLT Price: $4.15 |
| 45 |
17D-23466-00-00 |
CLAMP Price: $18.99 |
| 46 |
17D-23467-00-00 |
CLAMP Price: $27.99 |
| 47 |
90109-06232-00 |
BOLT Price: $4.15 |
| 48 |
5TJ-23389-80-00 |
GUIDE, CABLE Price: $12.99 |
| 49 |
91317-05016-00 |
BOLT This part replaces 90110-05034-00. Price: $3.55 |
| 50 |
90387-05065-00 |
COLLAR Price: $3.95 |
| 51 |
4DA-23147-L1-00 |
O-RING Price: $7.49 |
| 52 |
276-23114-02-00 |
GASKET Price: $4.10 |
| 53 |
4DA-23147-L1-00 |
O-RING Price: $7.49 |
| 54 |
276-23114-02-00 |
GASKET Price: $4.10 |
| 55 |
4V4-23188-L1-00 |
O-RING Price: $6.49 |
| 56 |
4V4-23188-L1-00 |
O-RING Price: $6.49 |
