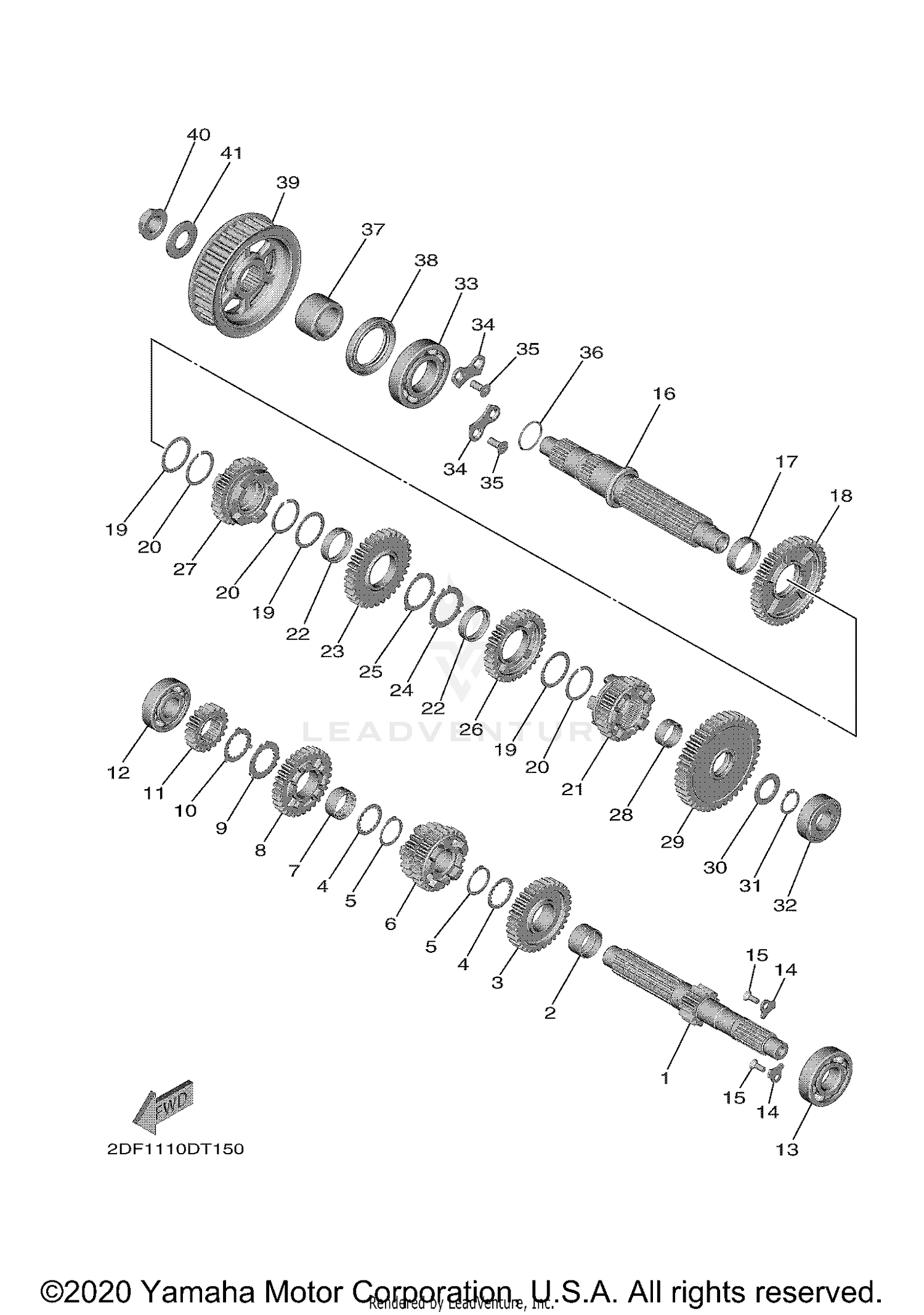

| Ref | Part Number | Description |
|---|
| 1 |
2DF-17411-00-00 |
AXLE, MAIN (13T) Price: $134.99 |
| 2 |
90387-32004-00 |
COLLAR Price: $26.99 |
| 3 |
2DF-17161-00-00 |
GEAR, 6TH PINION (33T) Price: $64.99 |
| 4 |
90209-28331-00 |
WASHER Price: $18.49 |
| 5 |
93440-31172-00 |
CIRCLIP Price: $15.49 |
| 6 |
2DF-17131-00-00 |
GEAR, 3RD PINION (22T/28T) Price: $143.99 |
| 7 |
90387-28005-00 |
COLLAR Price: $24.99 |
| 8 |
2DF-17151-00-00 |
GEAR, 5TH PINION (31T) Price: $61.99 |
| 9 |
90209-29329-00 |
WASHER Price: $16.49 |
| 10 |
90209-28330-00 |
WASHER Price: $14.49 |
| 11 |
2DF-17121-00-00 |
GEAR, 2ND PINION (19T) Price: $64.99 |
| 12 |
93306-30535-00 |
BEARING Price: $68.99 |
| 13 |
93306-37811-00 |
BEARING Price: $65.99 |
| 14 |
3AK-15383-01-00 |
PLATE, BEARING COVER Price: $9.49 |
| 15 |
90151-06023-00 |
SCREW, COUNTERSUNK This part replaces 90151-06024-00. Price: $9.49 |
| 16 |
2DF-17421-00-00 |
AXLE, DRIVE Price: $261.99 |
| 17 |
90387-37001-00 |
COLLAR Price: $19.49 |
| 18 |
2DF-17221-00-00 |
GEAR, 2ND WHEEL (40T) Price: $115.99 |
| 19 |
90209-35008-00 |
WASHER Price: $3.40 |
| 20 |
93440-38202-00 |
CIRCLIP Price: $9.49 |
| 21 |
2DF-17261-00-00 |
GEAR, 6TH WHEEL (26T) Price: $78.99 |
| 22 |
90387-35008-00 |
COLLAR Price: $111.99 |
| 23 |
2DF-17231-00-00 |
GEAR, 3RD WHEEL (32T) Price: $67.99 |
| 24 |
90214-35002-00 |
WASHER, CLAW Price: $5.49 |
| 25 |
90214-35003-00 |
WASHER, CLAW Price: $8.49 |
| 26 |
2DF-17241-00-00 |
GEAR, 4TH WHEEL (31T) Price: $80.99 |
| 27 |
2DF-17251-00-00 |
GEAR, 5TH WHEEL (28T) Price: $100.99 |
| 28 |
90387-28026-00 |
COLLAR Price: $13.49 |
| 29 |
2DF-17211-00-00 |
GEAR, 1ST WHEEL (41T) Price: $143.99 |
| 30 |
90201-251G8-00 |
WASHER, PLATE Price: $9.49 |
| 31 |
93410-25017-00 |
CIRCLIP, S-TYPE Price: $4.05 |
| 32 |
93306-20593-00 |
BEARING Price: $70.99 |
| 33 |
93306-20803-00 |
BEARING Price: $51.99 |
| 34 |
31A-15381-00-00 |
PLATE, BEARING COVER Price: $14.49 |
| 35 |
90151-08022-00 |
SCREW, COUNTERSUNK This part replaces 90151-08006-00. Price: $4.60 |
| 36 |
93210-32001-00 |
O-RING Price: $8.49 |
| 37 |
90387-35009-00 |
COLLAR Price: $32.99 |
| 38 |
93102-48313-00 |
OIL SEAL Price: $15.49 |
| 39 |
2DF-17651-00-00 |
PULLEY, BELT Price: $179.99 |
| 40 |
90179-22016-00 |
NUT Price: $29.99 |
