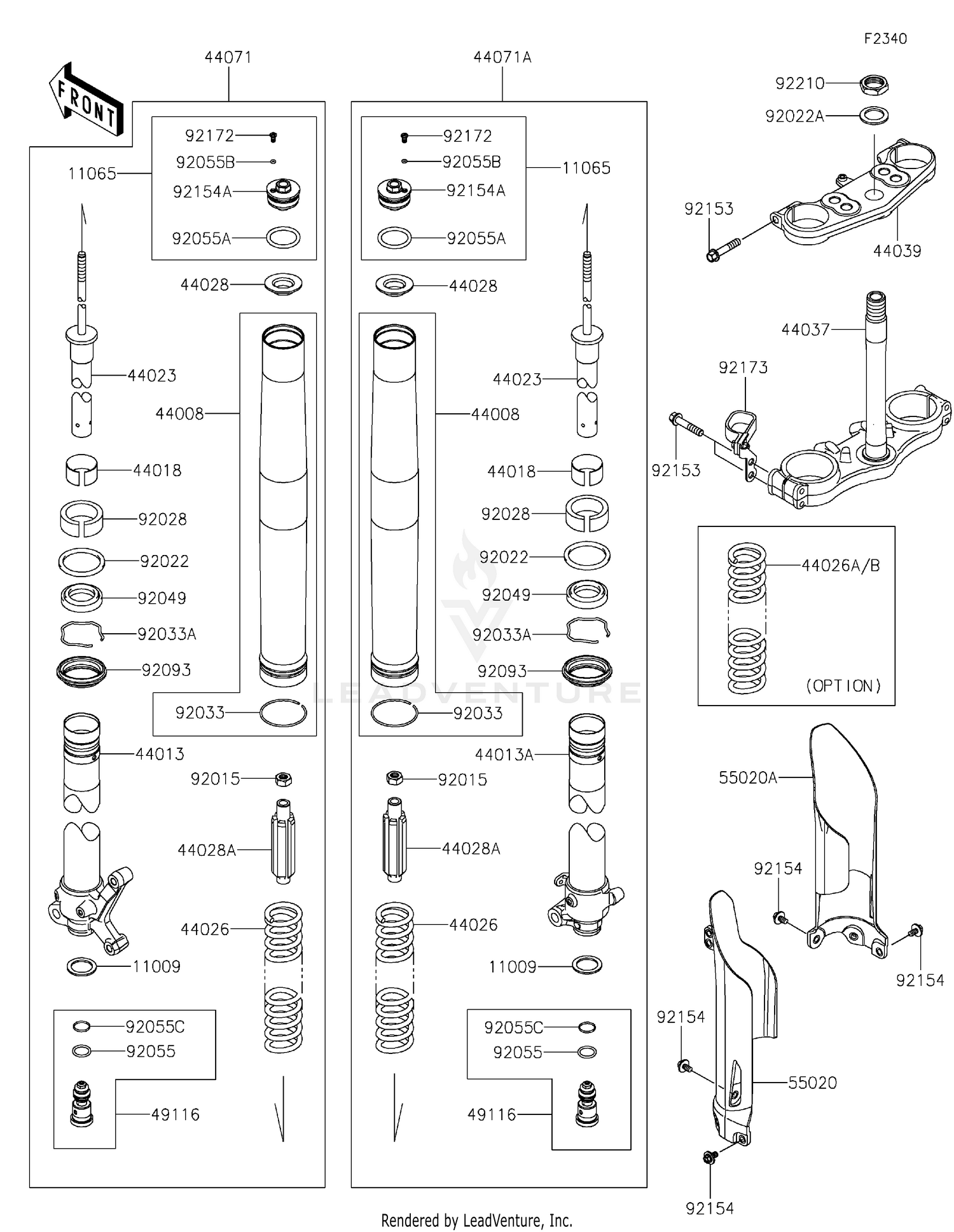

| Ref | Part Number | Description |
|---|
| 11009 |
11009-1592 |
GASKET,FORK CYLINDER BOLT Price: $6.16 |
| 11065 |
11065-1538 |
CAP,FORK,TOP Price: $68.34 |
| 44008 |
44008-0143 |
PIPE-FORK OUTER Price: $449.05 |
| 44013 |
44013-0465 |
PIPE-FORK INNER Price: $257.86 |
| 44013A |
44013-0466 |
PIPE-FORK INNER Price: $257.86 |
| 44018 |
44018-1056 |
PISTON-FORK,INNER PIPE Price: $28.45 |
| 44023 |
44023-0211 |
CYLINDER-SET-FORK Price: $352.91 |
| 44026 |
44026-0320 |
SPRING-FRONT FORK,K=3.1N/MM Price: $60.49 |
| 44026A |
44026-0328 |
SPRING-FRONT FORK,K=2.9N/MM Price: $60.49 |
| 44026B |
44026-0332 |
SPRING-FRONT FORK,K=3.3N/MM Price: $60.49 |
| 44028 |
44028-0009 |
GUIDE-FORK SPRING Price: $3.87 |
| 44028A |
44028-0010 |
GUIDE-FORK SPRING Price: $40.90 |
| 44037 |
44037-0236 |
HOLDER-FORK UNDER Price: $307.73 |
| 44039 |
44039-0230 |
HOLDER-FORK UPPER Price: $137.42 |
| 44071 |
44071-1787 |
DAMPER-ASSY,FORK,LH Price: $877.94 |
| 44071A |
44071-1788 |
DAMPER-ASSY,FORK,RH Price: $877.94 |
| 49116 |
49116-0728 |
VALVE-ASSY,BASE Price: $138.34 |
| 55020 |
55020-2623-290 |
GUARD,FORK,LH,L.GREEN Price: $29.03 |
| 55020A |
55020-2624-290 |
GUARD,FORK,RH,L.GREEN Price: $29.03 |
| 92015 |
92015-1839 |
NUT Price: $19.64 |
| 92022 |
92022-1299 |
WASHER Price: $8.58 |
| 92022A |
92022-1873 |
WASHER,STEERING STEM Price: $7.45 |
| 92028 |
92028-1581 |
BUSHING Price: $21.80 |
| 92033 |
92033-0080 |
RING-SNAP Price: $5.95 |
| 92033A |
92033-1077 |
RING-SNAP Price: $4.96 |
| 92049 |
92049-0007 |
SEAL-OIL Price: $25.76 |
| 92055 |
670B2016 |
O RING,16MM This part replaces 92055-1010. Price: $1.36 |
| 92055A |
92055-1333 |
RING-O,FORK,AIR TUBE Price: $6.00 |
| 92055B |
92055-1441 |
RING-O,2.8X6.6X1.9 Price: $2.93 |
| 92055C |
92055-1502 |
RING-O,FORK VALVE Price: $7.45 |
| 92093 |
92093-1342 |
SEAL,FORK OUTER TUBE Price: $18.72 |
| 92153 |
92153-0020 |
BOLT,8X40 Price: $5.59 |
| 92154 |
92154-2970 |
BOLT,FLANGED,6X12 Price: $0.90 |
| 92154A |
92154-7910 |
BOLT Price: $68.34 |
| 92172 |
92172-1736 |
SCREW Price: $6.23 |
| 92173 |
92173-3777 |
CLAMP Price: $9.49 |
