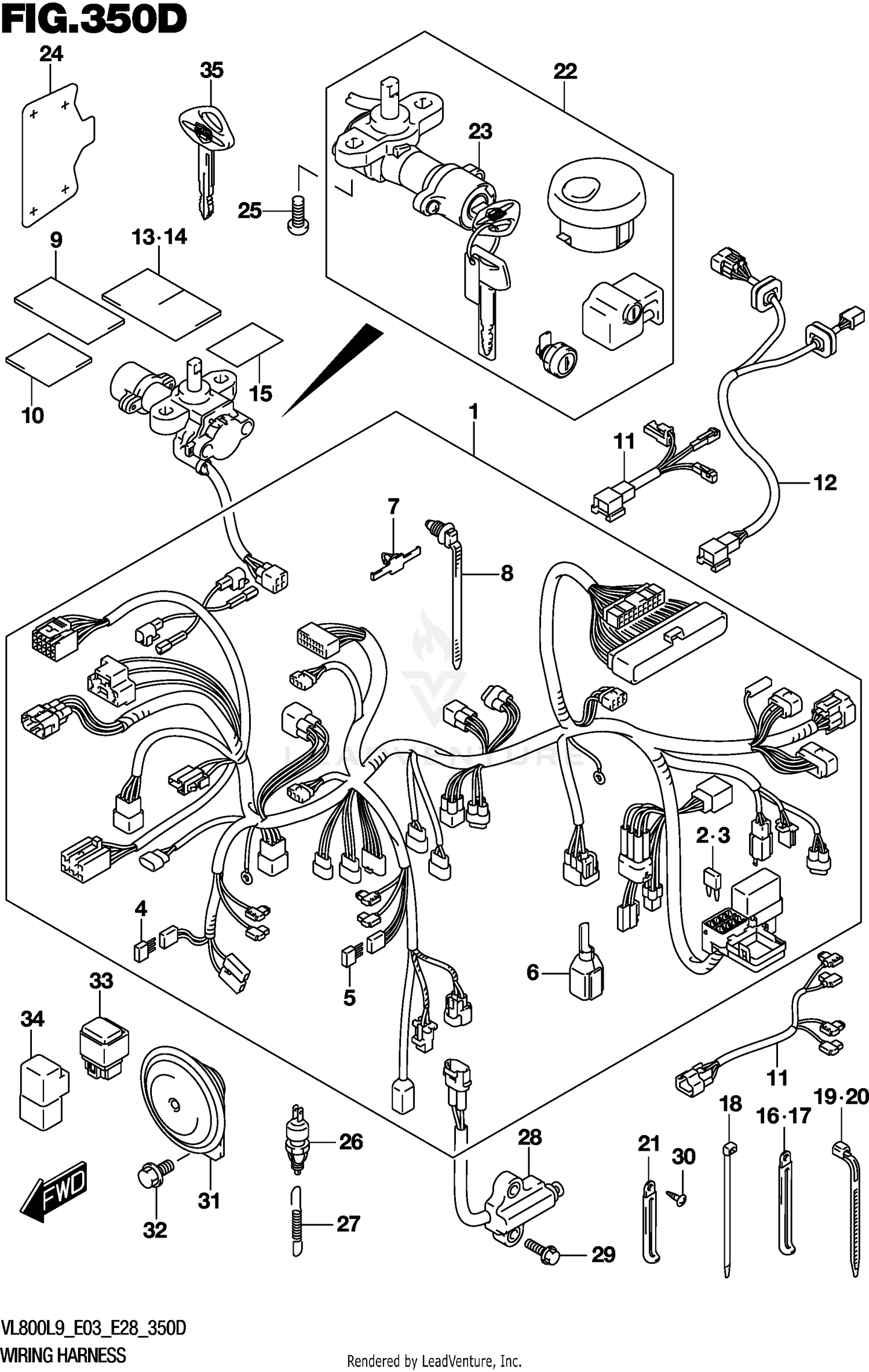

| Ref | Part Number | Description |
|---|
| 1 |
36610-43H60 |
HARNESS Price: $762.42 |
| 8 |
09407-17403 |
CLAMP (L:170) Price: $6.24 |
| 9 |
36611-16G00 |
TAPE,HARNESS (28X50X0.13) Price: $3.28 |
| 10 |
36611-41F00 |
PROTECTOR,WIRING HARNESS (30X Price: $5.43 |
| 11 |
36856-41F00 |
WIRE,REAR COMB NO.2 Price: $39.77 |
| 12 |
36858-41F01 |
WIRE,RR COMB This part replaces 36858-41F00. Price: $35.26 |
| 13 |
36920-33C00 |
PROTECTOR,HARNESS (30X50X3) Price: $1.84 |
| 14 |
36920-33C00 |
PROTECTOR,HARNESS (30X50X3) Price: $1.84 |
| 15 |
94474-17H00 |
PROTECTOR,COWL UNDER (30X20X0 Price: $4.96 |
| 16 |
09404-06036 |
CLAMP(L:80) This part replaces 09404-06433. Price: $2.12 |
| 17 |
09404-06435 |
CLAMP (L:135) Price: $3.87 |
| 18 |
09407-14407 |
CLAMP (L:145) Price: $3.70 |
| 19 |
09407-18402 |
CLAMP (L:165) Price: $2.68 |
| 20 |
09407-19401 |
CLAMP (L:190) Price: $3.22 |
| 21 |
09404-06429 |
CLAMP (L:45) Price: $2.20 |
| 22 |
37102-41873 |
LOCK SET This part replaces 37102-41870. Price: $351.94 |
| 24 |
37187-41F10 |
PROTECTOR,IGNITION SW Price: $13.15 |
| 25 |
09139-08016 |
BOLT (8X20) Price: $4.10 |
| 26 |
37740-24A00 |
SWITCH ASSY,STOP LAMP Price: $22.49 |
| 27 |
09443-06073 |
SPRING Price: $4.22 |
| 28 |
37840-41F02 |
SWITCH ASSY,SIDE STAND This part replaces 37840-41F00. Price: $65.20 |
| 29 |
01550-0620A |
BOLT (6X20) Price: $2.37 |
| 30 |
03541-0512A |
SCREW Price: $1.65 |
| 31 |
38500-41F30 |
HORN ASSY Price: $94.73 |
| 32 |
01550-0816A |
BOLT Price: $2.79 |
| 33 |
38740-24A00 |
RELAY ASSY Price: $68.37 |
| 34 |
38740-24X50 |
RELAY ASSY Price: $55.84 |
