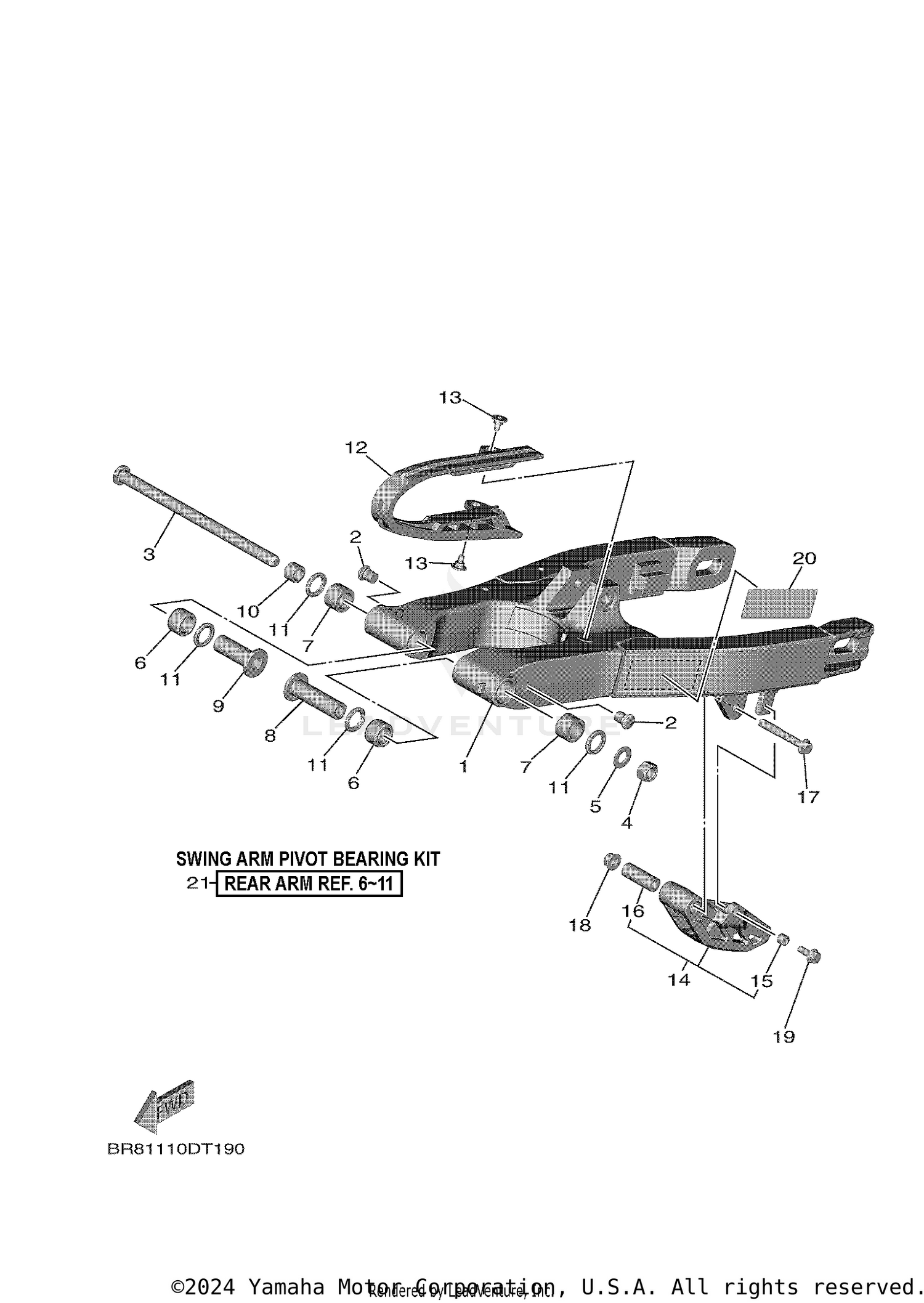

| Ref | Part Number | Description |
|---|
| 1 |
BR8-22110-00-00 |
REAR ARM COMP. Price: $648.99 |
| 2 |
90338-10150-00 |
PLUG Price: $8.49 |
| 3 |
BR8-22141-00-00 |
SHAFT, PIVOT Price: $28.99 |
| 4 |
95612-12100-00 |
NUT, U Price: $6.49 |
| 5 |
90201-12032-00 |
WASHER, PLATE Price: $8.49 |
| 12 |
BR8-22151-00-00 |
SEAL, GUARD Price: $93.99 |
| 13 |
1C3-22969-90-00 |
SCREW, 1 This part replaces 1C3-22969-20-00. Price: $7.49 |
| 14 |
BR8-22199-00-00 |
SUPPORT, CHAIN Price: $60.99 |
| 15 |
90387-06207-00 |
COLLAR Price: $8.49 |
| 16 |
90387-09002-00 |
COLLAR Price: $5.49 |
| 17 |
95E32-08055-00 |
BOLT, FLANGE DEEP RECESS Price: $1.75 |
| 18 |
95602-08200-00 |
NUT, SELF-LOCKING Price: $3.20 |
| 19 |
95D02-06016-00 |
BOLT, FLANGE DEEP RECESS Price: $0.50 |
| 20 |
3RV-21668-A1-00 |
LABEL, TIRE This part replaces 3RV-21668-A0-00. Price: $5.49 |
