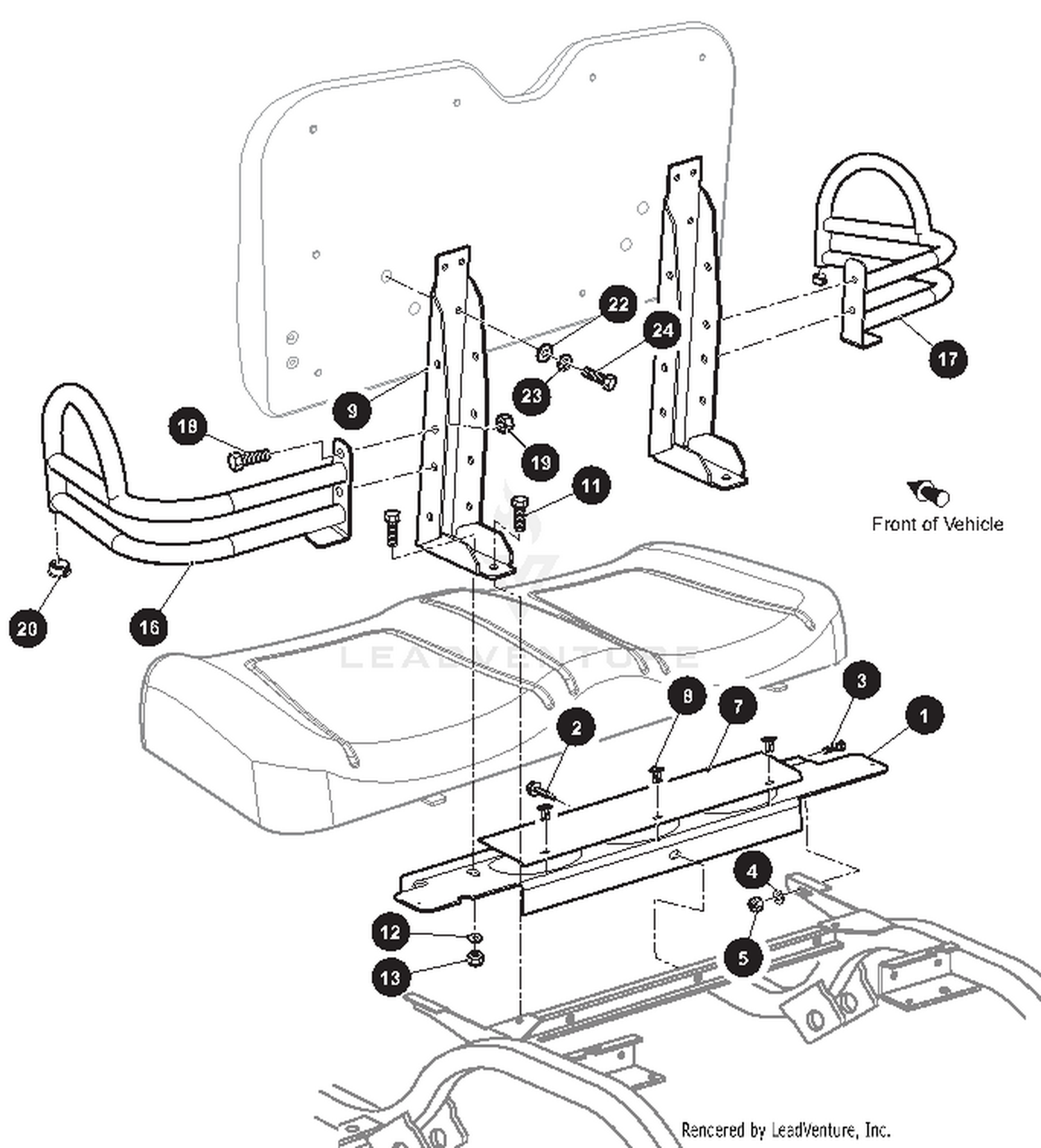

| Ref | Part Number | Description |
|---|
| 1 |
74971G01 |
SEAT BACK SUPPORT Price: $136.99 |
| 2 |
00715G2 |
HEX WASHER HEAD BOLT, 5/16-18 X 0.8 Price: $1.99 |
| 3 |
00438G8 |
HEX HEAD BOLT, 5/16-18 X 1 Price: $2.99 |
| 4 |
00642G8 |
FLAT WASHER, 5/16" Price: $2.99 |
| 5 |
11098G6 |
LOCK NUT, 5/16"-18 Price: $2.99 |
| 7 |
71263G01 |
ACCESS COVER Price: $10.39 |
| 8 |
18436G1 |
DRIVE RIVET, 1/4 X 3/4 Price: $1.99 |
| 9 |
652243G03 |
SEAT BACK SUPPORT BRACKET This part replaces 624486. Price: $49.99 |
| 11 |
01006G01 |
HEX WASHER HEAD BOLT, 3/8-16X1 1/4 Price: $0.99 |
| 12 |
00643G1 |
FLAT WASHER, 3/8 X 1.0 X .063 Price: $0.99 |
| 13 |
11098G5 |
LOCK NUT, 3/8"-16 Price: $0.99 |
| 16 |
645382G01 |
WELDMENT, HIP RESTRAINT, LH Not Available Price: |
| 17 |
645382G02 |
WELDMENT, HIP RESTRAINT, RH Not Available Price: |
| 18 |
00438G7 |
HEX HEAD BOLT, 5/16-18 X 7/8 Price: $3.99 |
| 19 |
11098G6 |
LOCK NUT, 5/16"-18 Price: $2.99 |
| 20 |
20271G5 |
HOLE PLUG, .750 Price: $1.03 |
| 22 |
01110G01 |
FLAT WASHER, 1/4" Price: $0.99 |
| 23 |
00664G7 |
LOCK WASHER, 0.255" X 0.263" Price: $0.99 |
