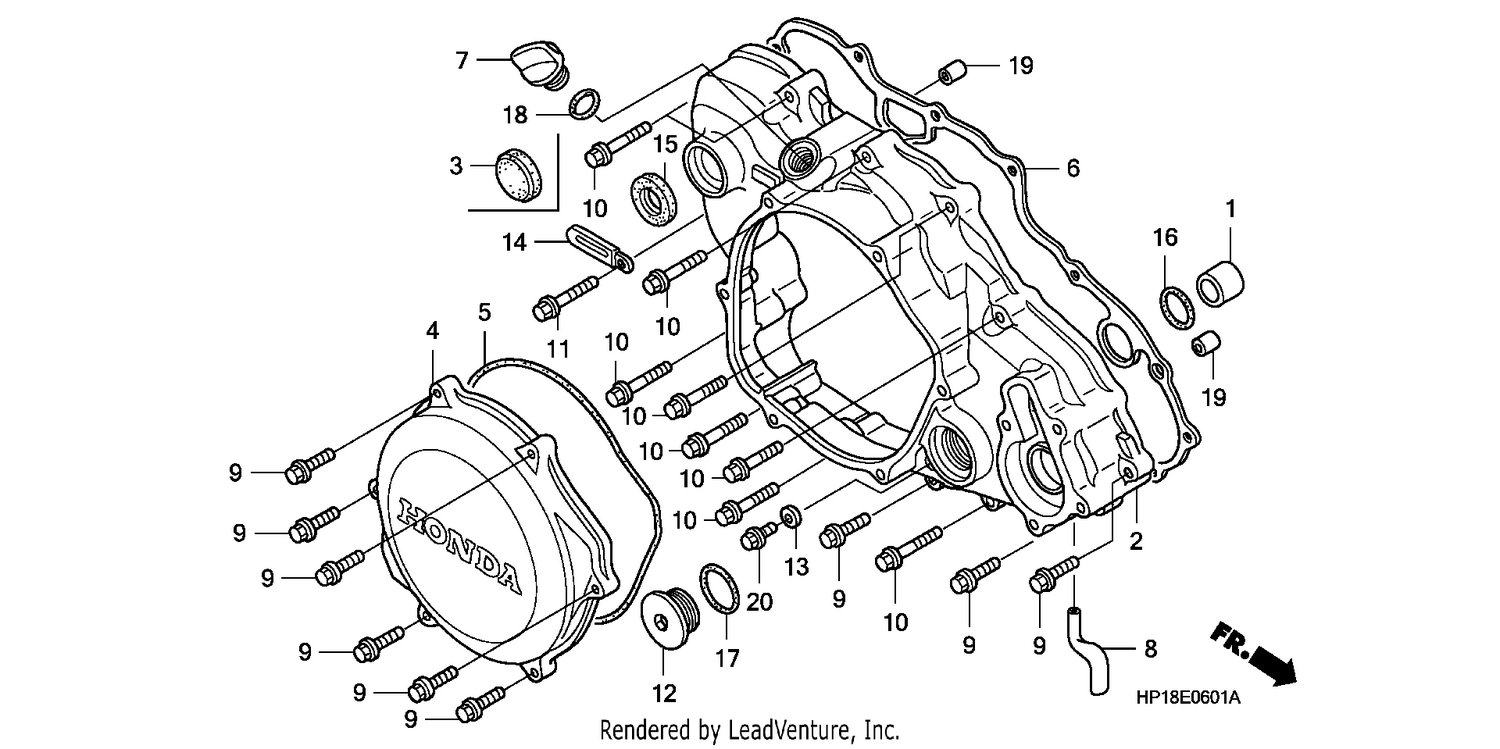

R. CRANKCASE COVER (TRX450R6,7,8/ER6,7,8)

R. CRANKCASE COVER (TRX450R6,7,8/ER6,7,8)

Parts (18)

RefPart NumberDescription
1 11102MEB670 COLLAR, WATER PASS, 18MM Price: Call Us
2 11331HP1600 COVER COMP., R. CRANKCASE Price: Call Us
3 11332HP1601 CAP, 28MM Price: Call Us
4 11351HP1670 COVER, CLUTCH Price: Call Us
5 11352HP1670 O-RING, CLUTCH COVER Price: Call Us
6 11394HP1600 GASKET, R. COVER Price: Call Us
7 15611KA4710 CAP, OIL FILLER Price: Call Us
8 19507HP1670 HOSE, DRAIN Price: Call Us
9 90004GHB680 BOLT, FLANGE, 6X28 (NSHF) Price: Call Us
10 90004GHB700 BOLT, FLANGE, 6X35 (NSHF) Price: Call Us
11 90004GHB720 BOLT, FLANGE, 6X45 (NSHF) Price: Call Us
12 90087HB5000 CAP, 30MM Price: Call Us
13 90463ML7000 WASHER, SEALING, 6.5MM Price: Call Us
14 90601KJ9000 CLIP, 4X50 Price: Call Us
16 91256383721 O-RING, 17.8X2.4 (SHOWA) Price: Call Us
17 91305KF0003 O-RING, 27X2 (ARAI) Price: Call Us
18 91307035000 O-RING, 18X3 Price: Call Us
19 9430108140 DOWEL PIN, 8X14 Price: Call Us
