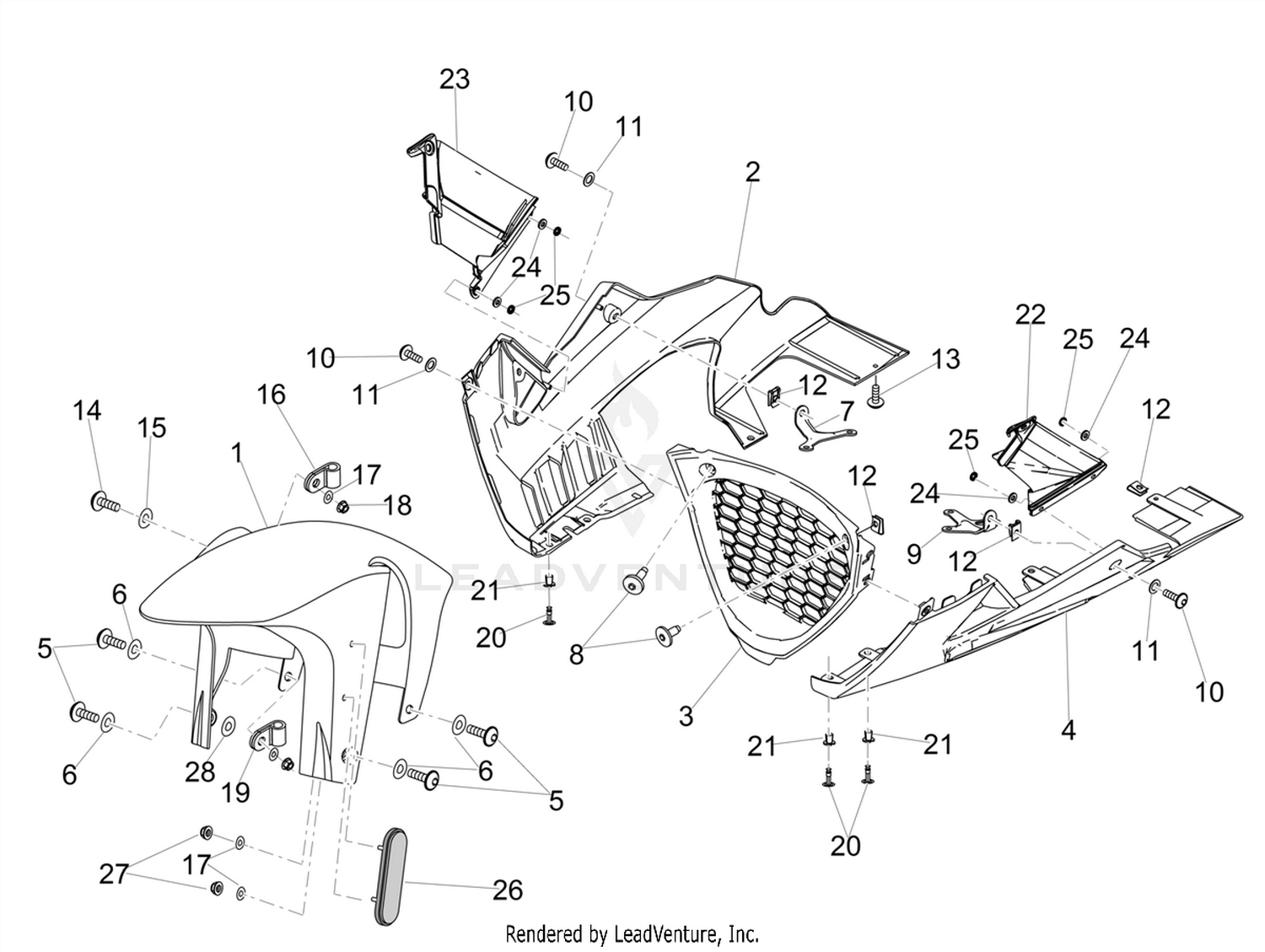

Front mudguard-Pillar
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 894988 | Front mudguard, carb. Price: $690.36 |
| 2 | 2H003695000XHG | RH lower fairing, grey Price: $108.62 |
| 3 | 858827 | Pillar Price: $9.69 |
| 4 | 2H003696000XHG | LH lower fairing, grey Price: $104.95 |
| 5 | AP8152269 | Hex socket screw Price: $2.70 |
| 6 | AP8150248 | Washer Price: $0.12 |
| 7 | 895909 | RH clamp Price: $22.12 |
| 8 | 895915 | Screw w/ flange Price: $2.70 |
| 9 | 2B001812 | LH clamp Price: $22.96 |
| 10 | 896175 | Hex socket screw Price: $2.70 |
| 11 | AP8120622 | Front dust cover ring Price: $2.70 |
| 12 | AP8102375 | Clip Price: $0.50 |
| 13 | 895915 | Screw w/ flange Price: $2.70 |
| 14 | 581957 | Hexagon convex big end screw Price: $0.12 |
| 15 | 895916 | Plastic washer Price: $2.70 |
| 16 | B046190 | Fairlead Price: $3.70 |
| 17 | AP8150158 | Washer Price: $2.70 |
| 18 | AP8150204 | Nut Price: $0.37 |
| 19 | AP8101890 | Black hose Price: $2.70 |
| 20 | AP8144563 | Rivet, male Price: $0.23 |
| 21 | AP8144616 | Rivet, female Price: $0.17 |
| 22 | 2B001548 | LH baffle Price: $8.37 |
| 23 | 2B001547 | RH baffle Price: $8.37 |
| 24 | AP8102504 | Rubber spacer Price: $0.28 |
| 25 | AP8150450 | Washer for shafts Price: $0.18 |
| 26 | AP8124719 | Reflector, amber Price: $6.33 |
| 27 | AP8150204 | Nut Price: $0.37 |
