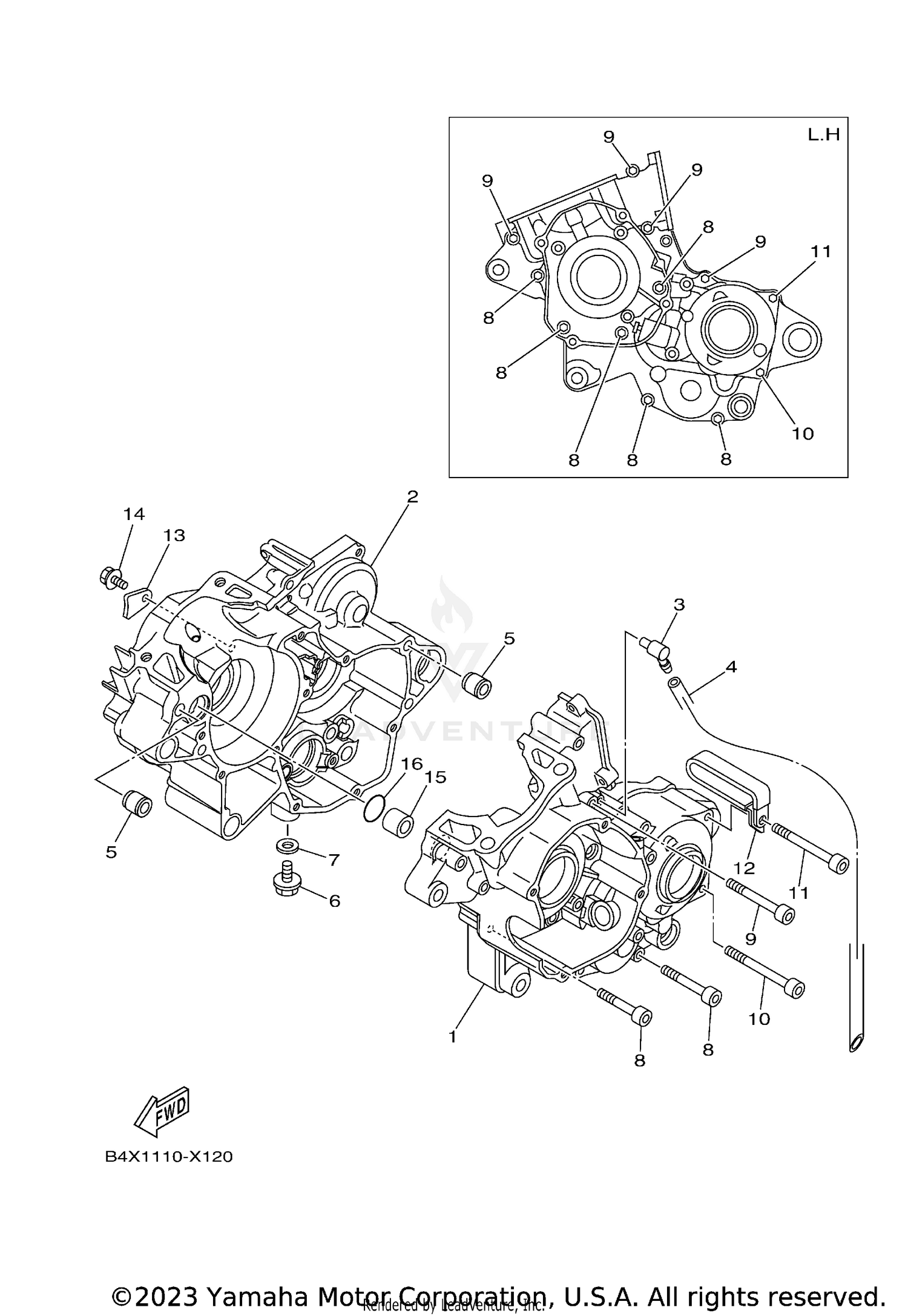

CRANKCASE
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B4X-15111-00-00 | CRANKCASE 1 Price: $538.99 |
| 2 | B4X-15121-00-00 | CRANKCASE 2 Price: $554.99 |
| 3 | 353-13115-01-00 | CONNECTOR, SUCTION PIPE Price: $7.49 |
| 4 | 90445-084J0-00 | PIPE This part replaces 90445-08605-00. Price: $20.99 |
| 5 | 99530-10116-00 | PIN, DOWEL Price: $4.40 |
| 6 | 95E32-10016-00 | BOLT, FLANGE DEEP RE Price: $1.60 |
| 7 | 90430-10188-00 | GASKET Price: $7.49 |
| 8 | 91312-06045-00 | BOLT, HEXAGON SOCKET HEAD Price: $4.40 |
| 9 | 91312-06055-00 | BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 10 | 91317-06065-00 | BOLT This part replaces 91312-06065-00. Price: $4.05 |
| 11 | 91312-06075-00 | BOLT, HEXAGON SOCKET HEAD Price: $5.49 |
| 12 | 90461-10136-00 | CLAMP Price: $25.99 |
| 13 | 4V4-15118-00-00 | HOLDER Price: $32.99 |
| 14 | 95817-06012-00 | BOLT, FLANGE This part replaces 90105-06085-00. Price: $1.95 |
| 15 | 99590-17016-00 | PIN, DOWEL Price: $8.49 |
