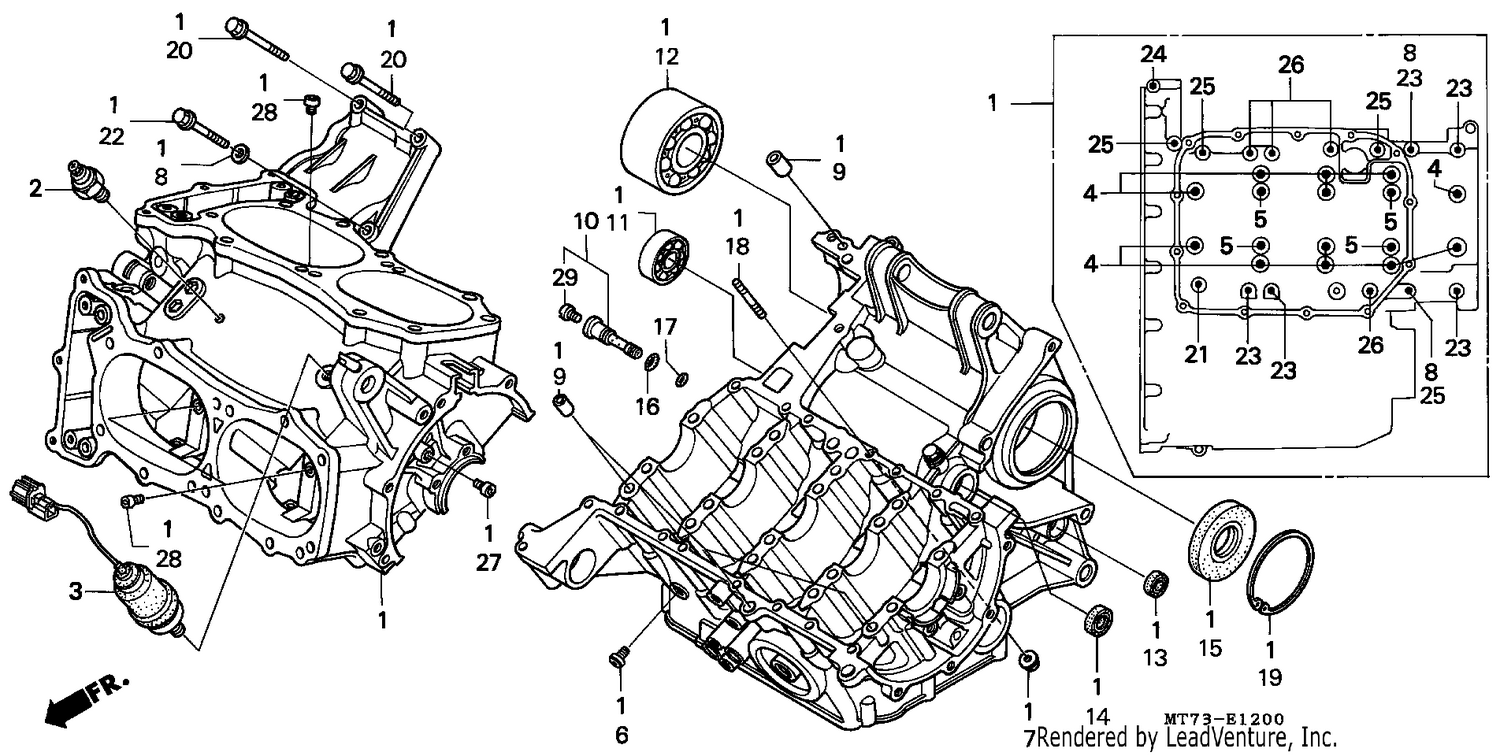

CRANKCASE SET

CRANKCASE SET

Parts (28)

RefPart NumberDescription
1 11000MT7000 CRANKCASE SET Price: Call Us
2 35500MJ4024 SWITCH ASSY., OIL PRESSURE (DENSO) Price: Call Us
3 37830MT7000 SENSOR, OIL PRESSURE Price: Call Us
4 90024MT7003 BOLT, FLANGE, 8X88 Price: Call Us
5 90025MT7000 BOLT, FLANGE, 7X90 Price: Call Us
6 90042MM5000 BOLT, SPECIAL, 10MM Price: Call Us
7 90301473003 NUT, U, 6MM Price: Call Us
8 90463ML7000 WASHER, SEALING, 6.5MM Price: Call Us
9 90703MT7000 DOWEL PIN, 10X16 Price: Call Us
10 90800MT7000 ORIFICE COMP., OIL CONTROL Price: Call Us
11 91001464003 BEARING, RADIAL BALL, 6204U (TOYO) Price: Call Us
12 91008MT7003 BEARING, RADIAL BALL, 5207 (NTN) Price: Call Us
13 91203KK3830 OIL SEAL, 14X22X5 Price: Call Us
14 91204MB0013 OIL SEAL, 8X25X8 (ARAI) Price: Call Us
15 91261MG9003 OIL SEAL, 35X54X8 Price: Call Us
16 91302HB3004 O-RING, 7.5X1.5 Price: Call Us
17 91305371003 O-RING, 6.5X1.5 Price: Call Us
18 92900060400B BOLT, STUD, 6X40 Price: Call Us
19 9452156000 CIRCLIP, INTERNAL, 56MM Price: Call Us
20 957010603007 BOLT, FLANGE, 6X30 Price: Call Us
21 957010603200 BOLT, FLANGE, 6X32 Price: Call Us
22 957010603507 BOLT, FLANGE, 6X35 Price: Call Us
23 957010604007 BOLT, FLANGE, 6X40 Price: Call Us
24 957010605507 BOLT, FLANGE, 6X55 Price: Call Us
25 957010606507 BOLT, FLANGE, 6X65 Price: Call Us
26 957010607507 BOLT, FLANGE, 6X75 Price: Call Us
27 991013930600 JET, PRIMARY MAIN, #60 Price: Call Us
28 991013930800 JET, MAIN, #80 Price: Call Us
