| Ref | Part Number | Description |
|---|
| 1 |
31600-MKN-D51 |
RECTIFIER ASSY., REGULATOR Price: $228.55 |
| 2 |
31730-MAS-601 |
DIODE ASSY., THREE WAY (SUMITOMO) Price: $13.09 |
| 3 |
32100-MKS-A50 |

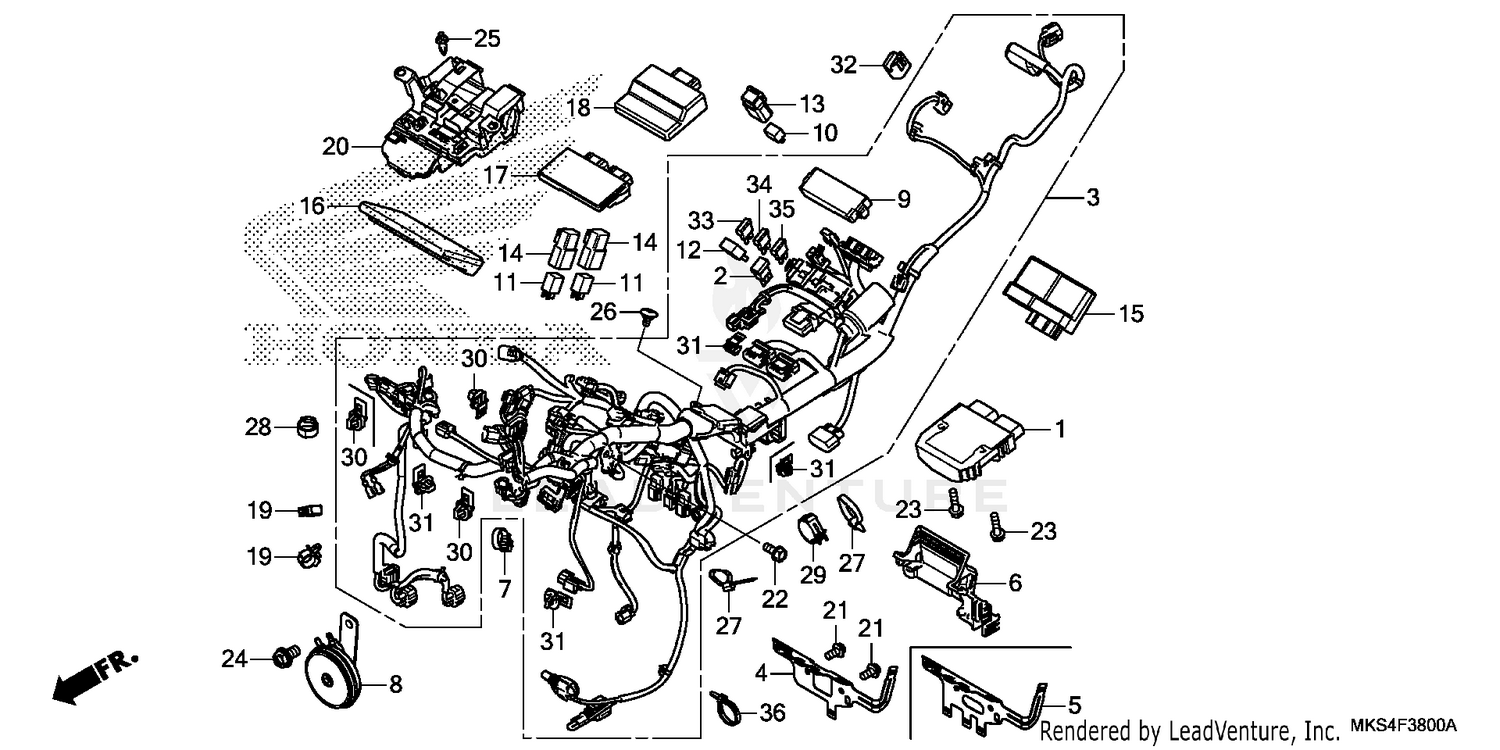

WIRE HARNESS Price: $1,839.40 |
| 5 |
32155-MKS-E50 |
STAY, HARNESS CLIP Price: $18.96 |
| 6 |
32159-MJP-G50 |
COVER, CONNECTOR Price: $6.84 |
| 7 |
32161-GFL-J41 |
BAND, WIRE HARNESS Price: $2.11 |
| 8 |
38110-MBV-712 |
HORN ASSY. (HIGH) Price: $97.33 |
| 9 |
38255-MKS-E00 |
COVER (UPPER) Price: $15.58 |
| 10 |
38501-KWN-901 |
RELAY, POWER (MICRO ISO 4P) (OMRON) Price: $7.69 |
| 11 |
38501-MCS-G01 |
RELAY, POWER (MICRO ISO 4P) Price: $13.04 |
| 12 |
38501-MKP-DN1 |
RELAY (MICRO ISO 4P) This part replaces 38501-MEL-003. Price: $5.85 |
| 13 |
38506-KVS-600 |
SUSPENSION, POWER RELAY Price: $5.58 |
| 14 |
38506-MCS-G00 |
SUSPENSION, POWER RELAY Price: $7.02 |
| 16 |
38770-MKS-A53 |
UNIT COMP,PGM-FI/ This part replaces 38770-MKS-A52. Price: $1,896.13 |
| 17 |
38780-MKS-A51 |
PGM-DCT UNIT Price: $884.82 |
| 18 |
38950-MKS-A02 |
CONTROL UNIT, BODY This part replaces 38950-MKS-A01. Price: $445.02 |
| 19 |
53781-SE0-952 |
CLIP, RETURN HOSE Price: $7.93 |
| 20 |
80109-MKS-E00 |
TRAY, BODY CONTROL UNIT Price: $30.55 |
| 21 |
90025-GHB-620 |
BOLT, FLANGE (6X12) Price: $2.55 |
| 22 |
90030-GHB-630 |
BOLT, FLANGE (6X14) Price: $2.55 |
| 23 |
90030-GHB-670 |
BOLT, FLANGE (6X22) Price: $2.49 |
| 24 |
90036-GHB-630 |
BOLT, FLANGE (8X14) Price: $2.55 |
| 25 |
90116-SP0-003 |
CLIP, BUMPER SEAL Price: $5.93 |
| 26 |
90122-MJK-N20 |
SCREW, SPECIAL (5X11) Price: $2.84 |
| 27 |
90652-KT1-771 |
BAND, WIRE (BLACK) Price: $5.62 |
| 28 |
90683-KJ2-003 |
CLIP, WIRE HARNESS Price: $4.47 |
| 29 |
90690-GHB-681 |
CLIP, CABLE (30MM) Price: $3.65 |
| 30 |
91535-TA0-003 |
CLIP, CONNECTOR (DARK BROWN) Price: $5.20 |
| 31 |
91565-SEL-003 |
CLIP, CONNECTOR (BLACK) (Honda Code 7386865) Price: $4.62 |
| 32 |
91771-MKK-H11 |
CAP, DUMMY (6P) (RED) Price: $25.67 |
| 33 |
98200-41000 |
FUSE, MINI (10A) Price: $1.38 |
| 34 |
98200-41500 |
FUSE, MINI (15A) (Honda Code 4853438) Price: $1.27 |
| 35 |
98200-42000 |
FUSE, MINI (20A) Price: $1.27 |
