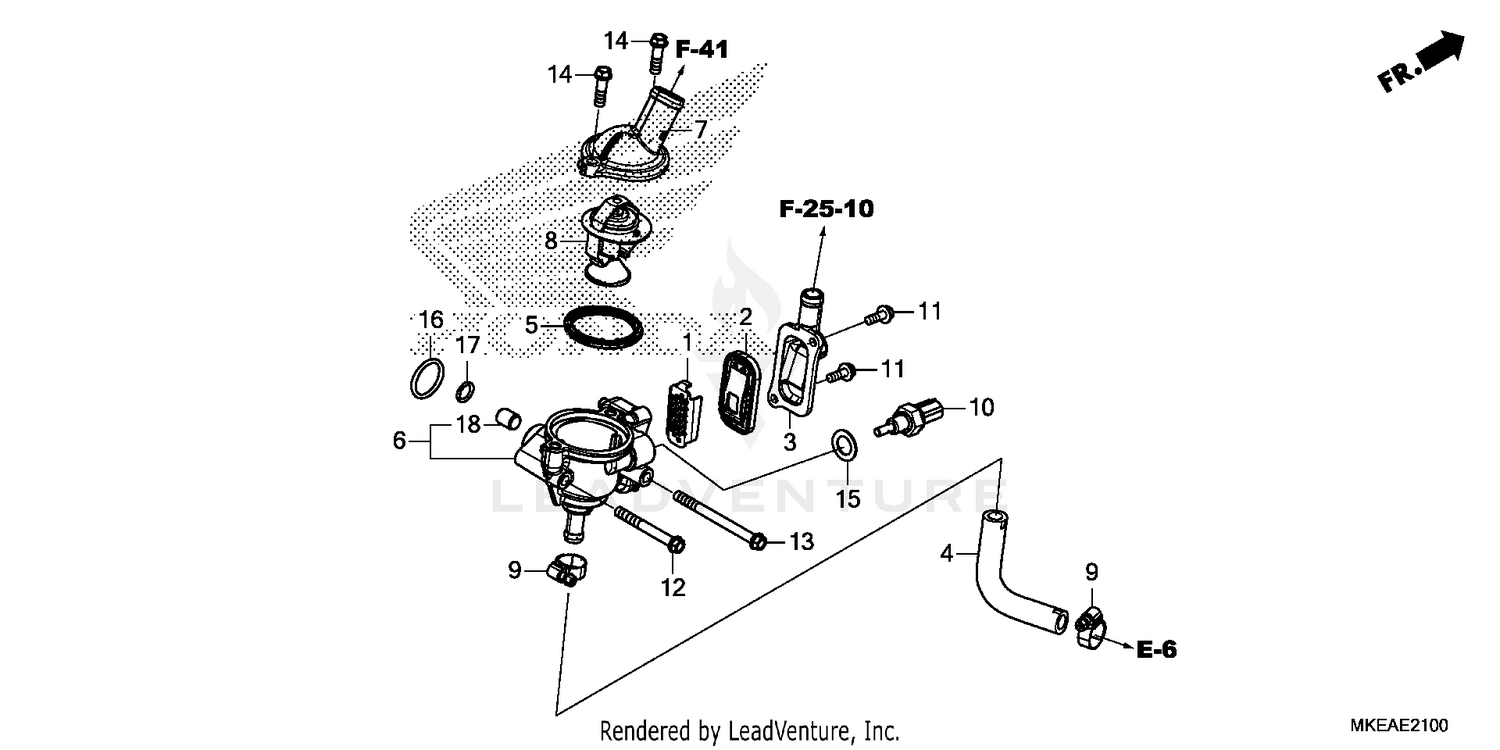

| Ref | Part Number | Description |
|---|
| 1 |
12341-MAT-750 |
PLATE, PORT (AI) Price: $15.98 |
| 2 |
18601-MCF-003 |
VALVE, REED Price: $32.47 |
| 3 |
18612-MBA-601 |
COVER, REED VALVE Price: $16.51 |
| 4 |
19066-MKE-A50 |
HOSE, WATER BYPASS Price: $4.85 |
| 5 |
19305-KV3-010 |
RUBBER, THERMOSTAT Price: $7.62 |
| 6 |
19310-MKE-A50 |
CASE, THERMOSTAT Price: $108.75 |
| 7 |
19315-MKE-A50 |
COVER, THERMOSTAT Price: $20.69 |
| 8 |
19320-MFJ-D01 |
THERMOSTAT Price: $41.76 |
| 9 |
19507-MK4-620 |
CLAMP, BREATHER HOSE Price: $11.42 |
| 10 |
37870-KRJ-901 |
SENSOR ASSY., WATER TEMPERATURE Price: $37.25 |
| 11 |
90003-MEL-000 |
BOLT, FLANGE (5X14) Price: $1.53 |
| 12 |
90020-GHB-760 |
BOLT, FLANGE (6X50) Price: $3.31 |
| 13 |
90020-GHB-800 |
BOLT, FLANGE (6X70) Price: $3.95 |
| 14 |
90022-MKE-A00 |
BOLT, FLANGE (6X20) (SH) Price: $2.65 |
| 15 |
90454-MC7-000 |
WASHER, SPECIAL (12MM) Price: $2.98 |
| 16 |
91301-MB6-003 |
O-RING (21.9X2.3) Price: $2.42 |
| 17 |
91305-K95-AA1 |
O-RING (9.8X1.9) Price: $3.85 |
