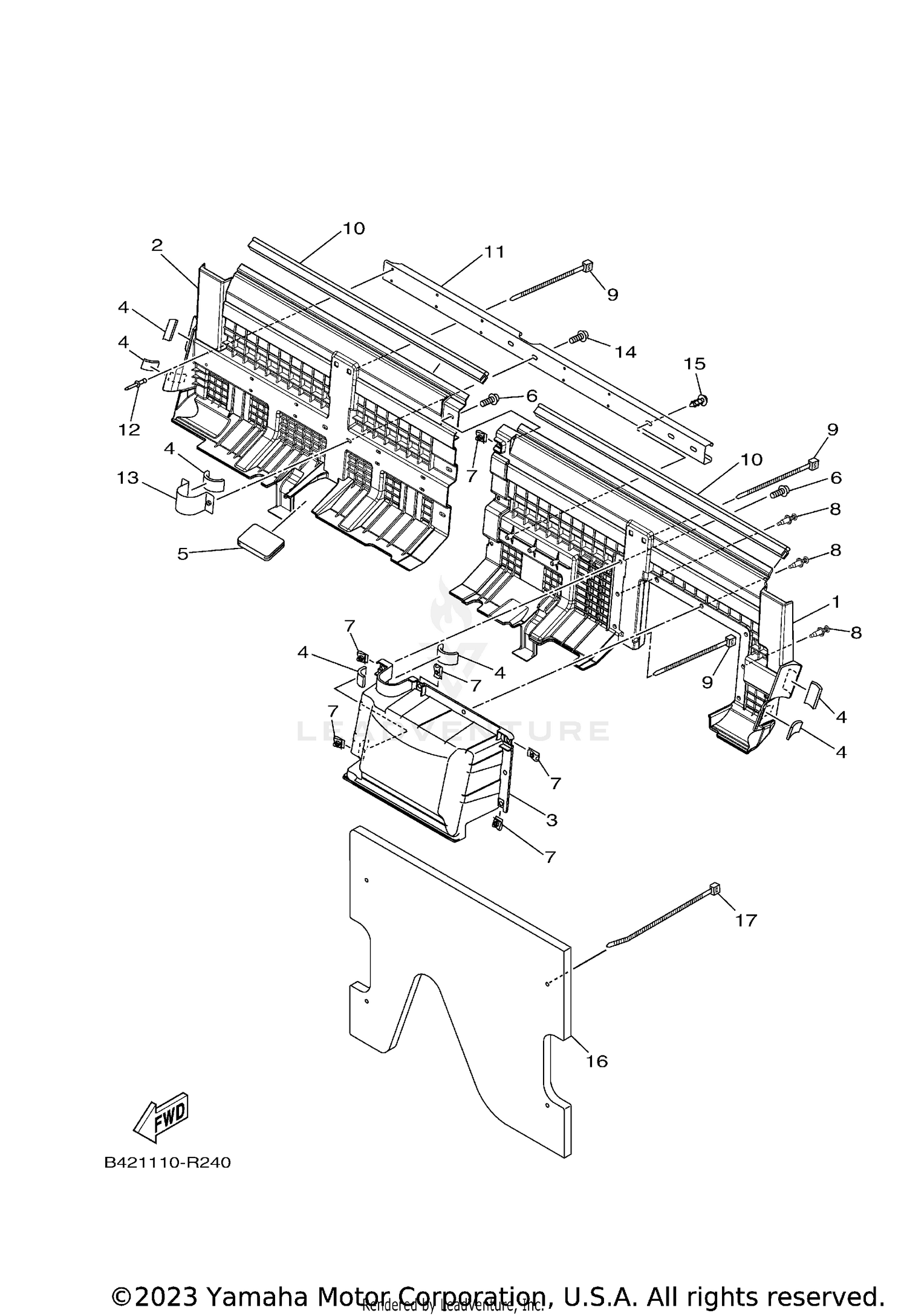

SIDE COVER 4
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B42-F191B-00-00 | PLATE 1 Price: $47.99 |
| 2 | B42-F191C-00-00 | PLATE 2 Price: $44.99 |
| 3 | B42-F198F-00-00 | COVER 1 Price: $21.99 |
| 4 | 5UG-K7588-01-00 | DAMPER This part replaces 5UG-K7588-00-00. Price: $8.49 |
| 5 | B42-F1719-00-00 | GROMMET Price: $2.85 |
| 6 | 90119-06226-00 | BOLT, WITH WASHER Price: $2.80 |
| 7 | 90183-060A6-00 | NUT, SPRING Price: $5.99 |
| 8 | 90269-07805-00 | RIVET Price: $1.75 |
| 9 | 90464-48800-00 | CLAMP Price: $4.90 |
| 10 | B42-F1732-01-00 | SEAL 1 This part replaces B42-F1732-00-00. Price: $20.99 |
| 11 | B42-F175G-00-00 | REINF. Price: $19.49 |
| 12 | 90267-409U3-00 | RIVET, BLIND (90267-40936-00) Price: $5.99 |
| 13 | B42-F172K-00-00 | BRACKET 1 Price: $8.49 |
| 14 | 90119-06226-00 | BOLT, WITH WASHER Price: $2.80 |
| 15 | 90167-06800-00 | SCREW, TAPPING Price: $0.95 |
| 16 | B42-2174A-01-00 | INSULATOR, SIDE COVER Price: $303.99 |
