Parts Catalog

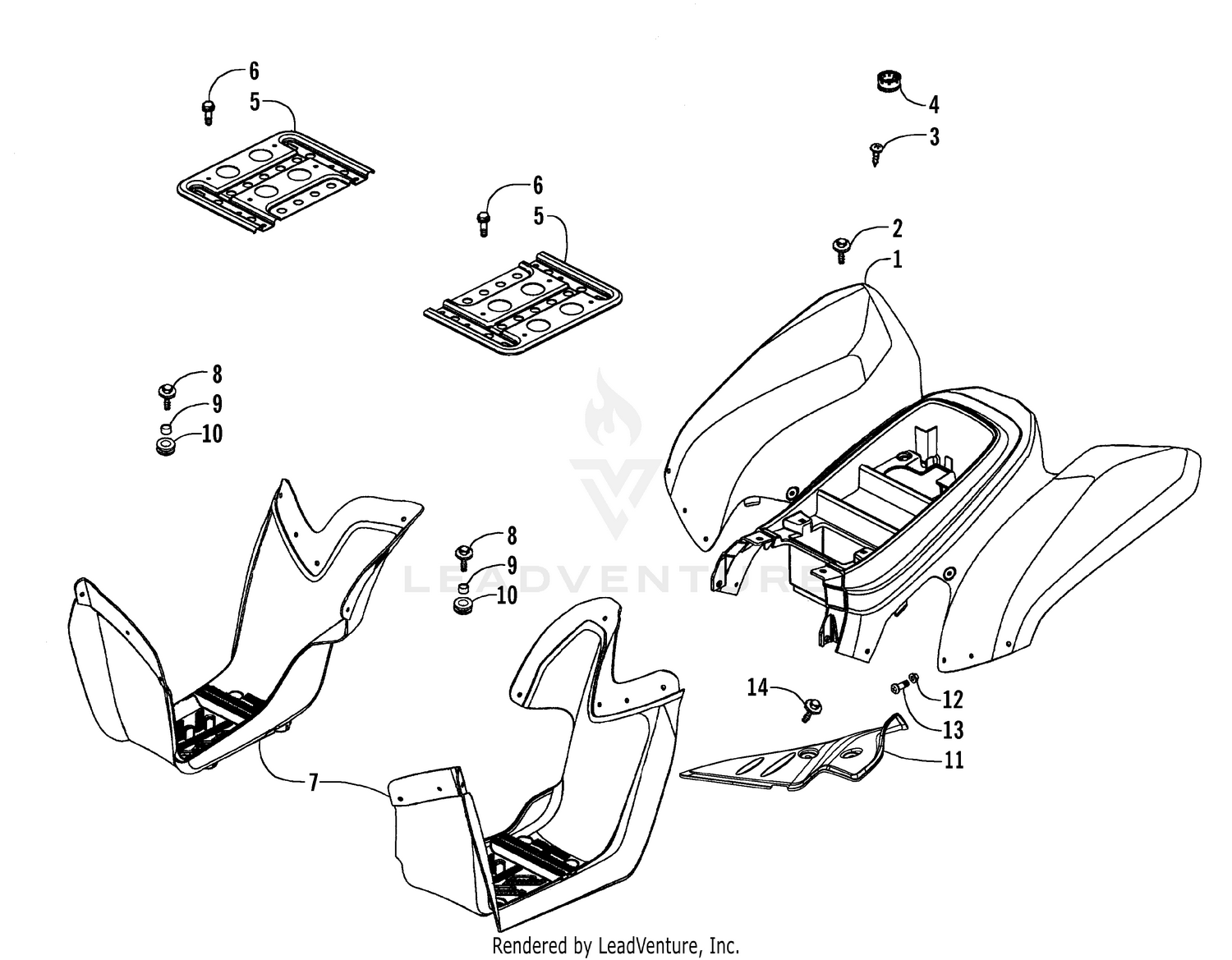

REAR BODY PANEL ASSEMBLY [85441]

Parts (14)

Ref	Part Number	Description
1	3303-455	FENDER REAR (LIME) Price: $168.95
2	3303-313	BOLT WASH 6*16 Price: $1.23
3	3304-650	SCREW TAPPING 5*16 (CIRCLE HEAD) Price: $1.56
4	3303-232	RUBBER REAR FENDER Price: $2.18
5	3303-186	REINFORCEMENT-FLOOR Price: $30.95
6	3304-543	BOLT FLANGE 8*16 Price: $1.56
7	3303-234	MUDGUARD ASSY R FLOOR Price: $56.95
7	3303-235	MUDGUARD ASSY L FLOOR Price: $56.95
8	3304-586	BOLT WASHER 6*20 Price: $1.27
9	3303-233	COLLAR FLOOR Price: $2.65
10	3303-227	RUBBER WIND SCREEN Price: $2.18
11	3303-237	COVER ASSY SIDE **(0) C.2004.01.14 Price: $29.72
12	3303-331	NUT FLANGE 6MM Price: $0.39
13	3303-251	SCREW SPECIAL 6*16 **900 C.2002.06.18 Price: $2.34
