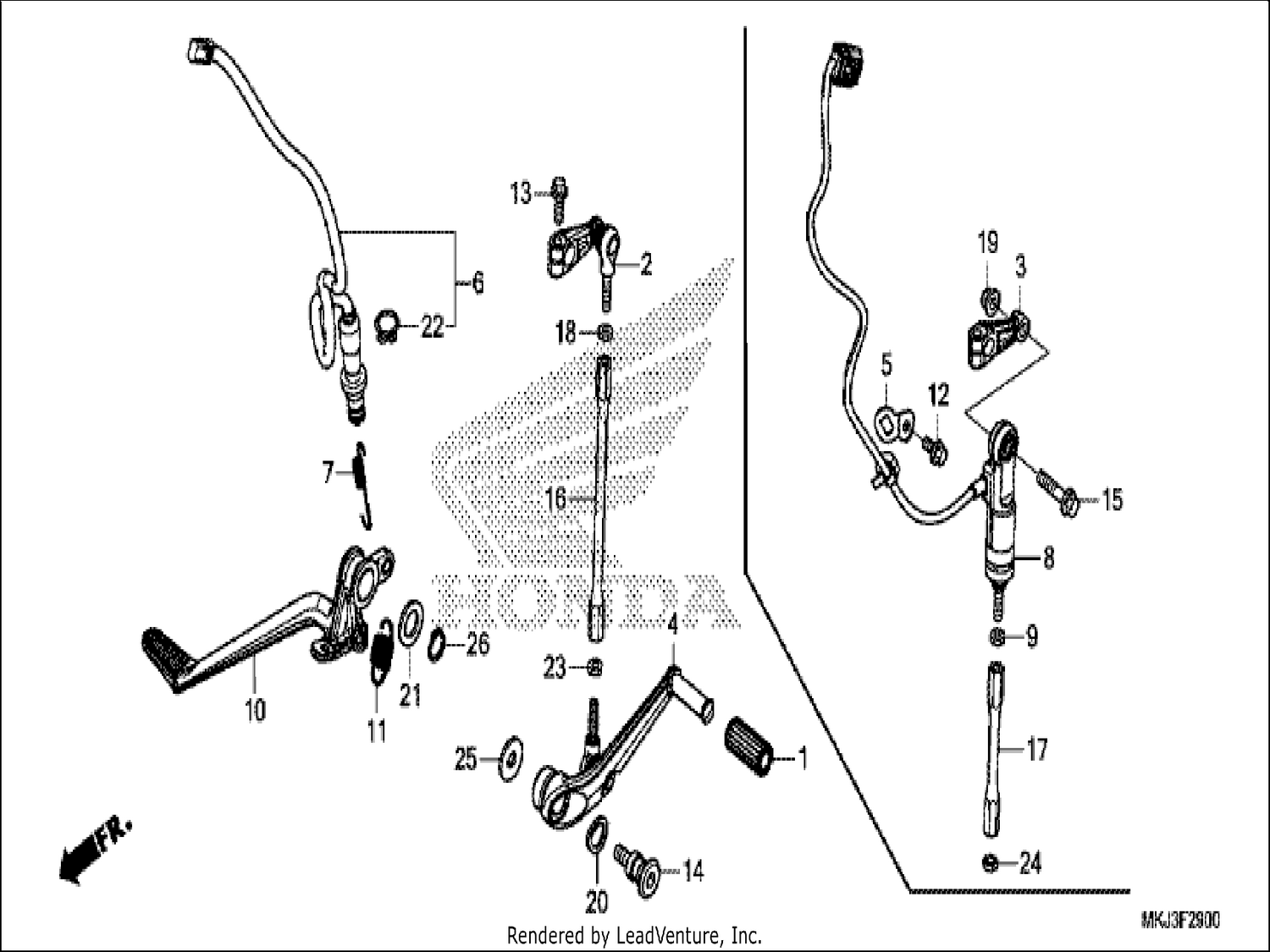

| Ref | Part Number | Description |
|---|
| 1 |
24705MR7000 |
RUBBER, GEAR CHANGE PEDAL Price: Call Us |
| 2 |
24710MEE000 |
ARM COMP., GEAR CHANGE Price: Call Us |
| 4 |
24720MFJD01 |
PEDAL COMP., GEAR CHANGE Price: Call Us |
| 6 |
35350MKJD01 |
SWITCH ASSY., RR. STOP Price: Call Us |
| 7 |
35357MCH000 |
SPRING, STOP SWITCH Price: Call Us |
| 10 |
46500MFND00 |
PEDAL COMP., RR. BRAKE Price: Call Us |
| 11 |
46514MFND00 |
SPRING, BRAKE PEDAL Price: Call Us |
| 13 |
90030GHB660 |
BOLT, FLANGE, 6X20 Price: Call Us |
| 14 |
90113MCF000 |
BOLT, CHANGE PIVOT Price: Call Us |
| 16 |
90165MFND00 |
BAR, CHANGE Price: Call Us |
| 18 |
90201700000 |
NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD) Price: Call Us |
| 20 |
90505MBW000 |
WASHER, CHANGE PEDAL WAVE Price: Call Us |
| 21 |
90557230000 |
WASHER, 15.2X25 Price: Call Us |
| 22 |
90601KAF003 |
CLIP, SWITCH COVER Price: Call Us |
| 23 |
94001060200S |
NUT, HEX., 6MM Price: Call Us |
| 25 |
9410308700 |
WASHER, PLAIN, 8MM Price: Call Us |
