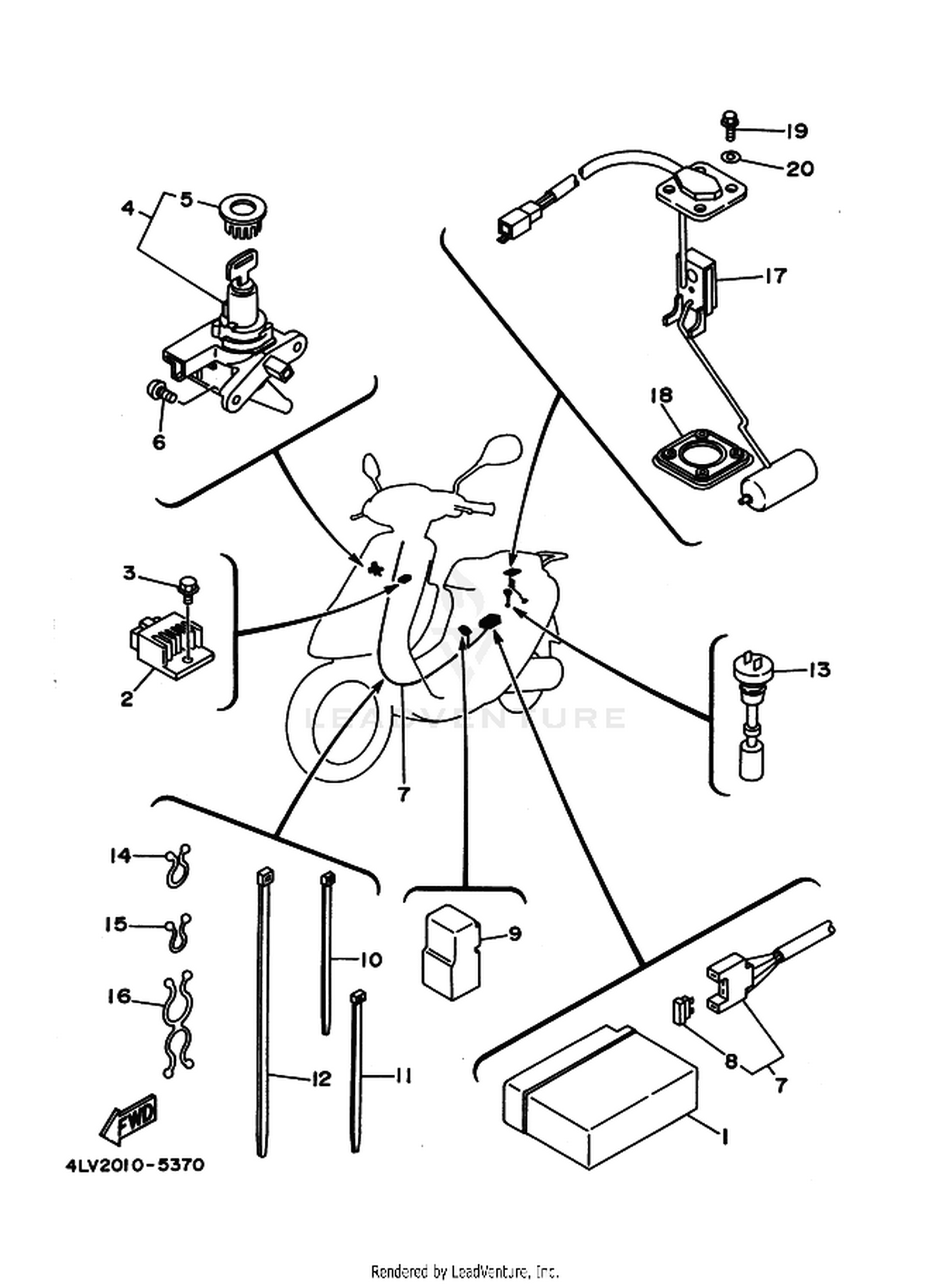

36 ??????? 2
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 95027-06012 | BOLT, FLANGE Price: Call Us |
| 4 | 4JP-82501-10 | MAIN SWITCH STEERING LOCK Price: Call Us |
| 6 | 90149-06250 | SCREW Price: Call Us |
| 7 | 4LV-82590-00 | WIRE HARNESS ASSY Price: Call Us |
| 9 | 29U-81950-93 | RELAY ASSY Price: Call Us |
| 10 | 90465-13152 | CLAMP Price: Call Us |
| 11 | 12R-82591-00 | BAND Price: Call Us |
| 12 | 90460-15126 | CLAMP, HOSE Price: Call Us |
| 13 | 4JP-85720-00 | OIL LEVEL GAUGE ASSY Price: Call Us |
| 14 | 90464-20044 | CLAMP Price: Call Us |
| 15 | 90464-16039 | CLAMP Price: Call Us |
| 17 | 4JP-85752-00 | SENDER UNIT ASSY, FUEL METER Price: Call Us |
| 18 | 4JP-85753-01 | GASKET, SENDER UNIT Price: Call Us |
| 19 | 90119-05071 | BOLT, WITH WASHER Price: Call Us |
