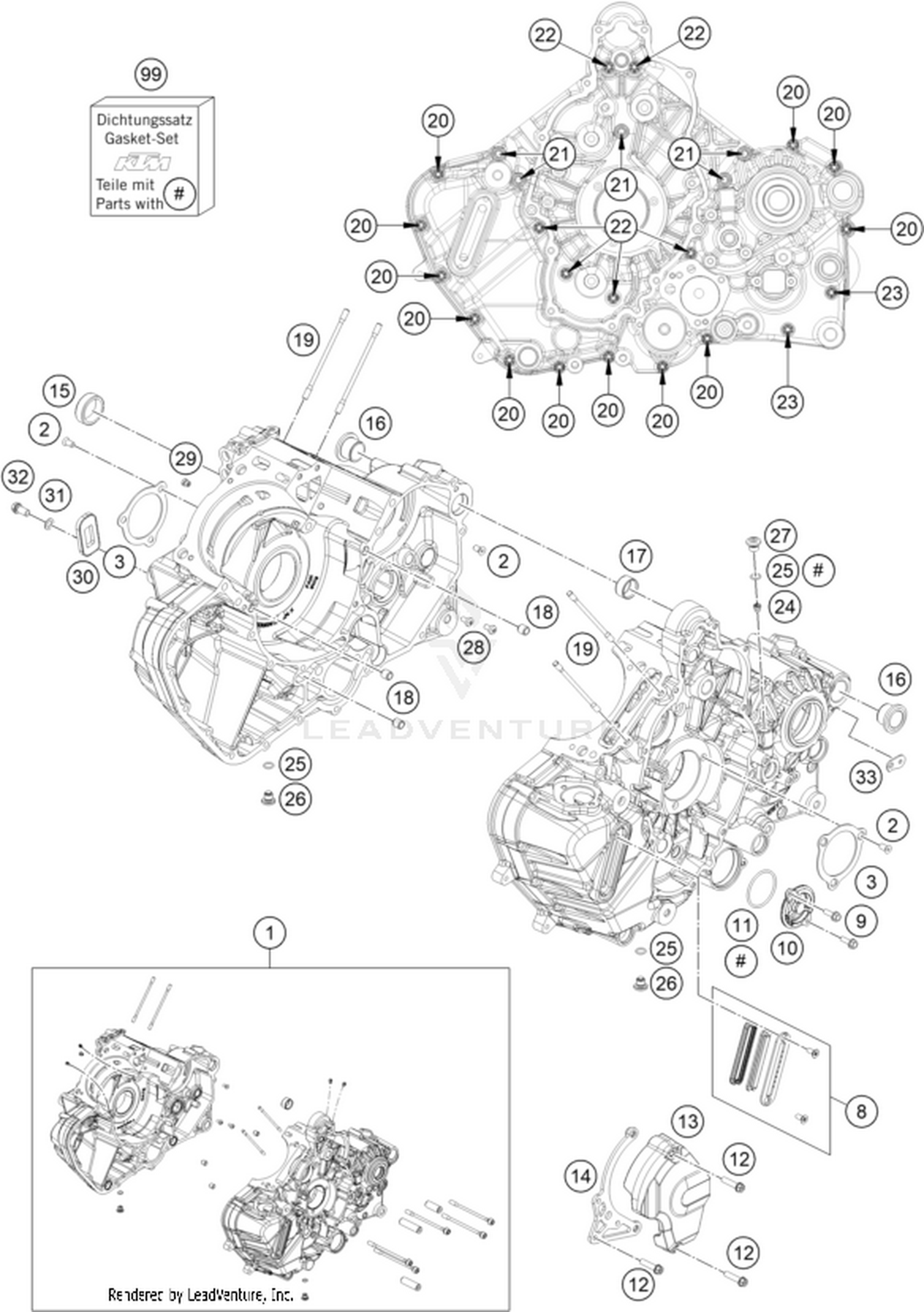

30 ENGINE CASE
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A6263010024424 | Engine case cmpl. Price: Call Us |
| 3 | 61230084000 | BRACKET FOR BEARING INSERT 08 Price: Call Us |
| 8 | 62638084044 | OIL SIGHT GLASS CPL. Price: Call Us |
| 9 | 0025050166 | HH collar screw M5x16 TX30 Price: Call Us |
| 11 | 07700390261 | O-RING 39,34X2,62 Price: Call Us |
| 12 | 0025060256 | HH collar screw M6x25 TX30 Price: Call Us |
| 13 | 61703096033 | Front sprocket cover Price: Call Us |
| 14 | T06230047133 | Chain guard cmpl. Price: Call Us |
| 15 | 61330157050 | SLIDE BEARING Price: Call Us |
| 16 | 60030010000 | SWING BEARING OUTSIDE LC8 03 Price: Call Us |
| 17 | 60030023000 | DOWEL 20,1X24X12 03 Price: Call Us |
| 18 | 49030090100 | DOWEL 9,8 X7X10 Price: Call Us |
| 19 | 61230044000 | STUD M6X110 08 Price: Call Us |
| 20 | 0025060556 | HH collar screw M6x55 TX30 Price: Call Us |
| 21 | 61230043100 | Case screw M8x125 Price: Call Us |
| 22 | 0025060906 | HH COLLAR SCREW M6X90 TX30 Price: Call Us |
| 23 | 0025060706 | HH COLLAR SCREW M6X70 TX30 Price: Call Us |
| 24 | 60038029200 | REDUCING JET ''30'' M6X0,75 Price: Call Us |
| 25 | 07700900151 | O-RING 9x1,5 V80 SH Price: Call Us |
| 26 | 77336056095 | SCREW PLUG Price: Call Us |
| 27 | 77236080000 | SCREW PLUG Price: Call Us |
| 28 | 0018050103S | Oval head screw DIN 7985-M5x10 Price: Call Us |
| 29 | 57031523100 | MAIN JET 100 DELLORTO Price: Call Us |
| 30 | 60005026000 | SAS Reed Valve Price: Call Us |
| 31 | 45038017000 | SEAL RING 8X14X1 AI Price: Call Us |
| 32 | 0025080166 | HH COLLAR SCREW M8X16 TX40 Price: Call Us |
| 33 | A64104012065 | Fastening Cable plate Price: Call Us |
