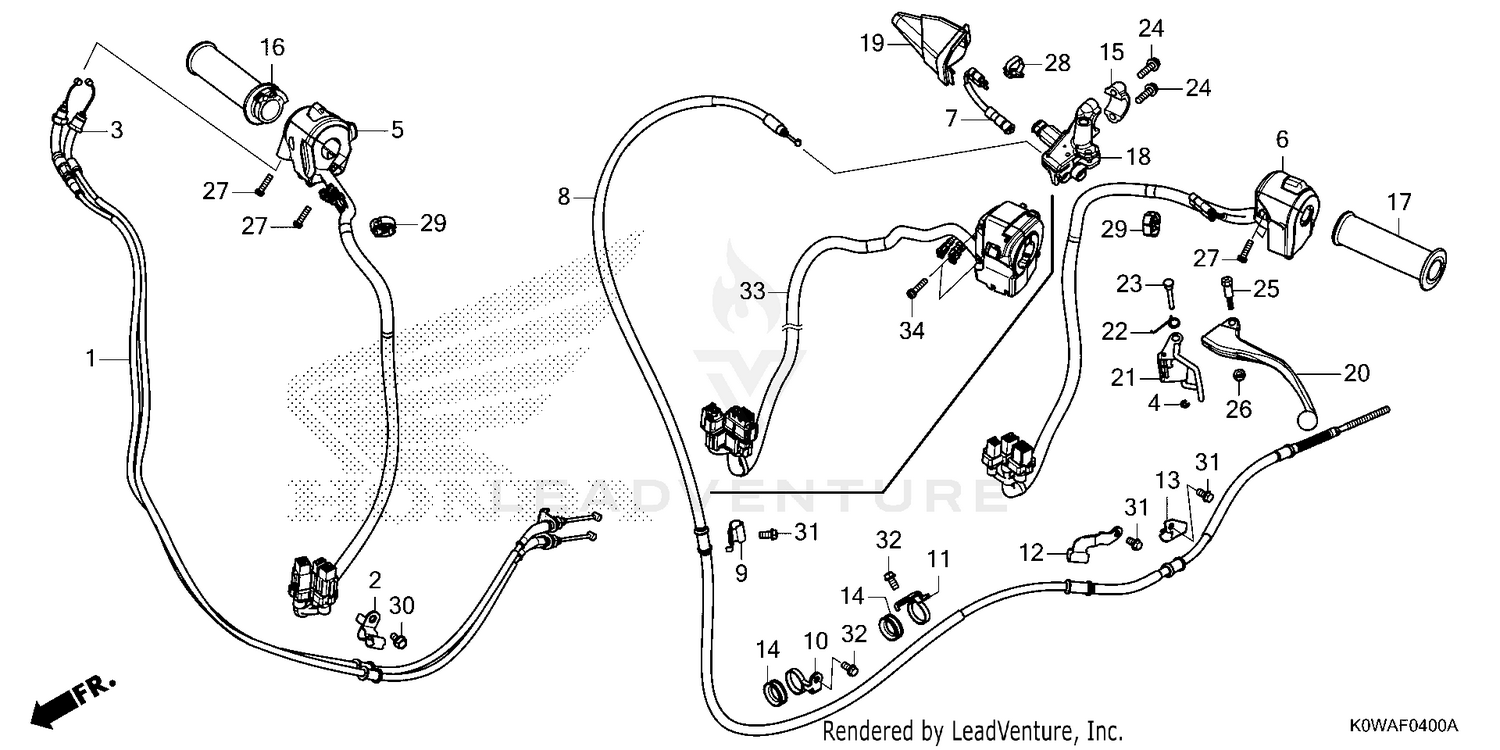

| Ref | Part Number | Description |
|---|
| 1 |
17910-K0W-TA1 |
CABLE COMP A, THROT Price: $16.89 |
| 2 |
17912-K1Z-J10 |
CLAMP, THROTTLE CABLE Price: $1.07 |
| 3 |
17920-K0W-TA1 |
CABLE COMP B, THROT Price: $14.27 |
| 4 |
30158-GW3-980 |
E-RING (3MM) Price: $1.24 |
| 5 |
35130-K0W-AA1 |
SWITCH ASSY. Price: $57.04 |
| 6 |
35200-K0W-AA1 |
SWITCH ASSY. Price: $66.84 |
| 7 |
35345-K35-V01 |
SWITCH ASSY., RR. STOP Price: $18.18 |
| 8 |
43450-K0W-AA1 |
CABLE, RR. BRAKE Price: $21.56 |
| 9 |
43455-K1Y-D10 |
CLAMP A, RR. BRAKE CABLE Price: $0.65 |
| 10 |
43456-K1Y-D10 |
GUIDE A, BRAKE CABLE Price: $0.95 |
| 11 |
43457-K1Y-D10 |
GUIDE B, BRAKE CABLE Price: $1.64 |
| 12 |
43458-K0W-AA0 |
CLAMP B, RR. Price: $23.69 |
| 13 |
43459-K1Y-D10 |
CLAMP C, RR. BRAKE CABLE Price: $0.87 |
| 14 |
45466-329-000 |
GUIDE, CABLE (INNER) Price: $3.71 |
| 15 |
45517-166-006 |
HOLDER, MASTER CYLINDER Price: $16.42 |
| 16 |
53140-K0W-N00 |
GRIP, THROTTLE Price: $6.56 |
| 17 |
53166-KWN-305 |
GRIP, L. HANDLE (COO) Price: $8.76 |
| 18 |
53172-K97-A10 |
BRACKET, L. HANDLE LEVER Price: $60.67 |
| 19 |
53177-K97-A10 |
BOOT, L. LEVER Price: $169.27 |
| 20 |
53178-K0W-A10 |
LEVER, L. HANDLEBAR Price: $17.96 |
| 21 |
53181-K0W-A10 |
LEVER, BRAKE LOCK Price: $61.82 |
| 22 |
53182-KVB-900 |
SPRING, LEVER RETURN Price: $0.67 |
| 23 |
53183-K97-A10 |
PIN, BRAKE LOCK LEVER PIVOT Price: $37.31 |
| 24 |
90101-KWN-900 |
BOLT, FLANGE SOCKET (6X22) Price: $1.02 |
| 25 |
90115-KWN-700 |
BOLT, HANDLE LEVER PIVOT Price: $0.40 |
| 26 |
90302-435-761 |
NUT, HEX. (5MM) Price: $2.55 |
| 27 |
90507-MGE-640 |
SCREW-WASHER (5X20) Price: $1.64 |
| 28 |
90652-K35-V00 |
BAND, WIRE HARNESS Price: $1.35 |
| 29 |
90690-MEF-800 |
CLAMP, HARNESS Price: $1.49 |
| 30 |
95701-06012-08 |
BOLT, FLANGE (6X12) Price: $1.70 |
| 31 |
96001-06012-07 |
BOLT, FLANGE (6X12) (L. SIDE ONLY) Price: $1.88 |
