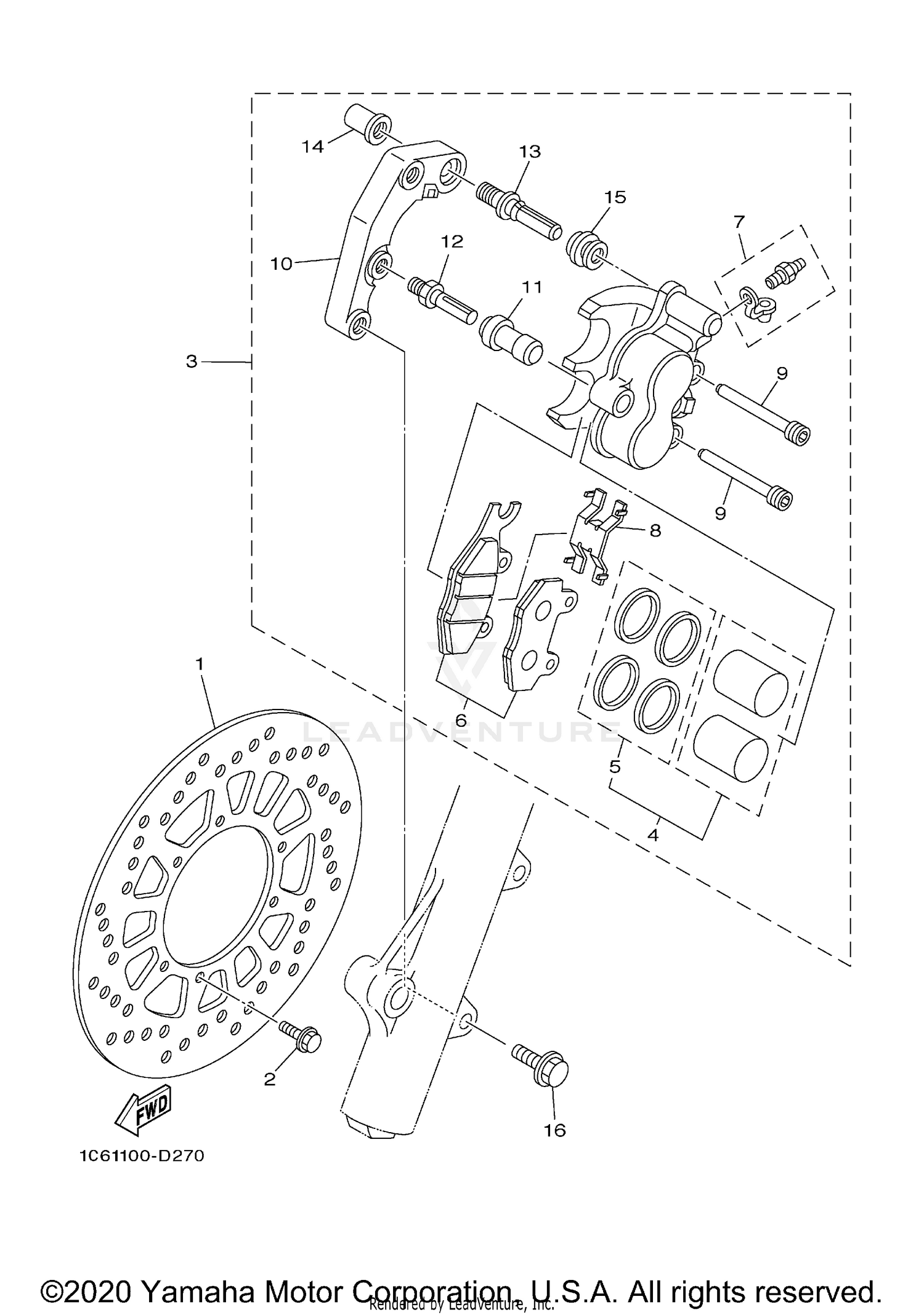

FRONT BRAKE CALIPER
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5XT-2582T-00-00 | DISC, BRAKE (LEFT) This part replaces 5RM-F582T-00-00. Price: $100.99 |
| 2 | 90105-06109-00 | BOLT, FLANGE This part replaces 90105-06813-00. Price: $10.49 |
| 3 | 5RM-F580T-10-00 | CALIPER ASSY (LEFT) Price: $382.99 |
| 4 | 5RM-F5802-00-00 | PISTON ASSY, CALIPER Price: $50.99 |
| 5 | 5RM-F5803-00-00 | CALIPER SEAL KIT Price: $12.99 |
| 6 | 5RM-F5805-20-00 | BRAKE PAD KIT Price: $93.99 |
| 7 | 36Y-W0048-00-00 | BLEED SCREW KIT This part replaces 5HH-W0048-00-00. Price: $10.99 |
| 8 | 5HH-F5934-00-00 | SPRING, PAD Price: $29.99 |
| 9 | 5HH-F5924-00-00 | PIN, PAD Price: $11.49 |
| 10 | 5RM-F5921-00-00 | BRACKET, SUPPORT Price: $92.99 |
| 11 | 5HH-F5937-00-00 | BOOT 2 Price: $4.55 |
| 12 | 5HH-F5926-51-00 | BOLT Price: $2.85 |
| 13 | 5HH-F536G-00-00 | PIN Price: $8.49 |
| 14 | 3JD-25961-00-00 | NUT This part replaces 5HH-F5961-00-00. Price: $9.49 |
| 15 | 5HH-F5917-00-00 | BOOT, CALIPER Price: $3.50 |
