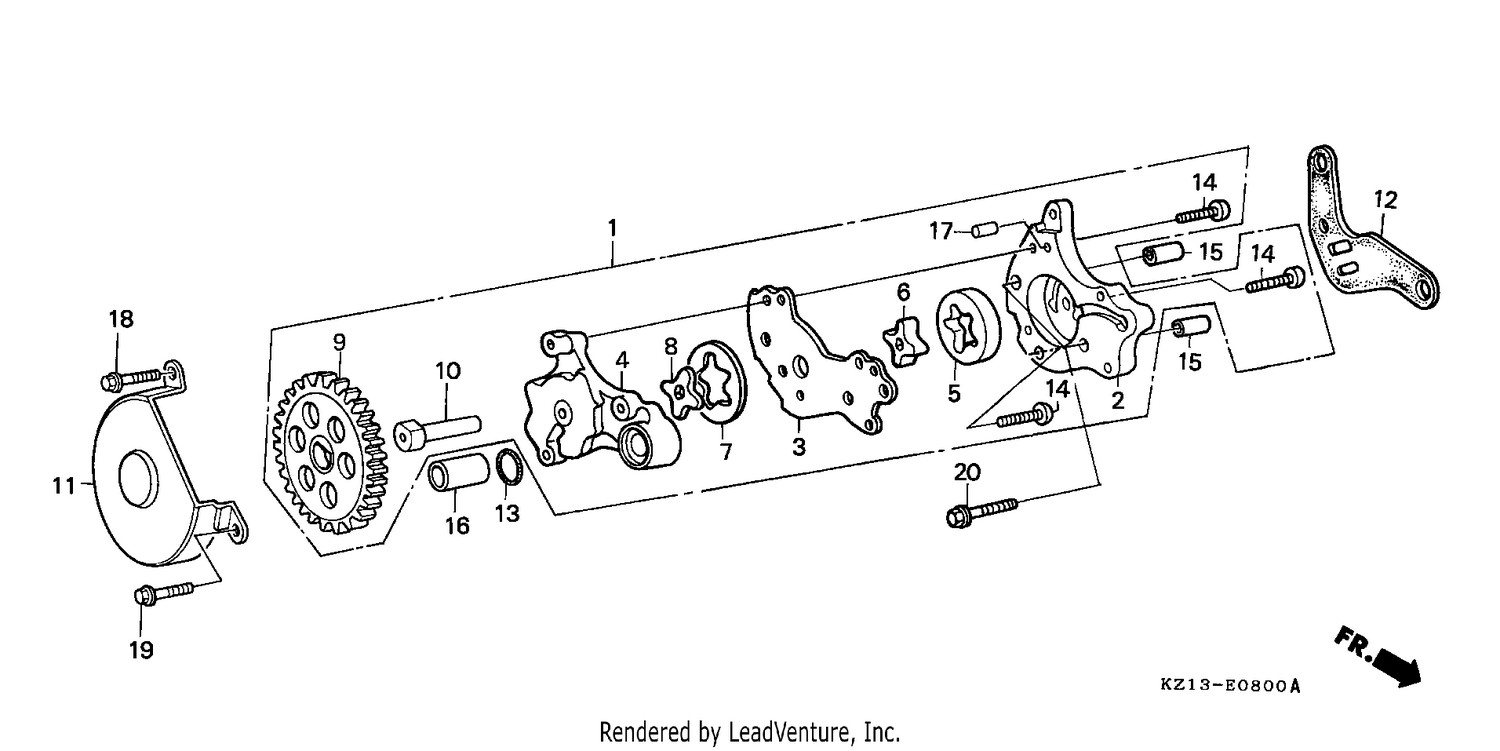

| Ref | Part Number | Description |
|---|
| 1 |
15100KK1771 |
PUMP ASSY., OIL Price: Call Us |
| 1 |
15100KK1772 |
PUMP ASSY., OIL Price: Call Us |
| 2 |
15111KK0771 |
BODY, OIL PUMP Price: Call Us |
| 2 |
15111KK0772 |
BODY, OIL PUMP Price: Call Us |
| 3 |
15112KL4000 |
PLATE, OIL PUMP Price: Call Us |
| 4 |
15121KL4000 |
COVER, OIL PUMP Price: Call Us |
| 5 |
15122KK0000 |
ROTOR, OIL PUMP OUTER Price: Call Us |
| 6 |
15123KK0000 |
ROTOR, OIL PUMP INNER Price: Call Us |
| 7 |
15124KG0000 |
ROTOR B, OIL PUMP OUTER Price: Call Us |
| 8 |
15125KG0000 |
ROTOR B, OIL PUMP INNER Price: Call Us |
| 9 |
15140KK1000 |
GEAR, OIL PUMP DRIVEN (30T) Price: Call Us |
| 10 |
15141KK0000 |
SHAFT, OIL PUMP Price: Call Us |
| 11 |
15151KK0000 |
COVER, OIL PUMP GEAR Price: Call Us |
| 12 |
15152KW3880 |
SEAT, OIL PUMP Price: Call Us |
| 13 |
91303KK0003 |
GASKET, RUBBER Price: Call Us |
| 14 |
93500050160A |
SCREW, PAN, 5X16 Price: Call Us |
| 15 |
9430108140 |
DOWEL PIN, 8X14 Price: Call Us |
| 16 |
9430110160 |
DOWEL PIN, 10X16 Price: Call Us |
| 17 |
9430304080 |
DOWEL PIN, 4X8 Price: Call Us |
| 18 |
960010601200 |
BOLT, FLANGE, 6X12 Price: Call Us |
| 19 |
960010602500 |
BOLT, FLANGE, 6X25 Price: Call Us |
